Old 05-11-2009, 02:11 PM   #11
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

There should be a lifting point, A metal bar with a hole in it. Front and rear. It'* mounted to the head on the exhaust manifolds.
Danthurs is offline   Reply With Quote
Old 05-12-2009, 06:42 PM   #12
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2007
Location: Cleveland, OH
Posts: 80
Thanks: 0
Thanked 0 Times in 0 Posts
buffstuffbuddha is on a distinguished road
Default

ok so I was able to grab the hoist from work to support my motor but just realized the gasket they gave me is a Vin K model. Do the supercharged and non supercharged motors use the same oil pan gasket? They did this to me once before when I did my valve covers, they gave me the wrong ones. I just wanna make sure before I open the box.
buffstuffbuddha is offline   Reply With Quote
Old 05-12-2009, 06:52 PM   #13
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I can't say for sure. Chances are you have a reusable pan gasket. It will be a thicker rubber gasket with ridges running around it, it will look like this
Name:  PB080004.jpg
Views: 0
Size:  65.2 KB

I have yet to open a trans on a bonneville and not find one of these gaskets.
Danthurs is offline   Reply With Quote
Old 05-12-2009, 06:55 PM   #14
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2007
Location: Cleveland, OH
Posts: 80
Thanks: 0
Thanked 0 Times in 0 Posts
buffstuffbuddha is on a distinguished road
Default

I'm doing the oil pan, not the tranny pan. I checked a couple stores and it seems to be the same for both SC and non SC.
buffstuffbuddha is offline   Reply With Quote
Old 05-12-2009, 07:00 PM   #15
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Ack, my bad. Ya, believe it'* the same pan. It'* the top of the engine that is different.
Danthurs is offline   Reply With Quote
Old 05-12-2009, 07:03 PM   #16
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2007
Location: Cleveland, OH
Posts: 80
Thanks: 0
Thanked 0 Times in 0 Posts
buffstuffbuddha is on a distinguished road
Default

cool man, thanks a bunch
buffstuffbuddha is offline   Reply With Quote
Old 05-13-2009, 09:12 AM   #17
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

yeah..same pan.
BillBoost37 is offline   Reply With Quote
Old 05-13-2009, 12:55 PM   #18
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2007
Location: Cleveland, OH
Posts: 80
Thanks: 0
Thanked 0 Times in 0 Posts
buffstuffbuddha is on a distinguished road
Default

alright last question. The gasket I got is a solid rubber gasket, am I going to need to use rtv any where or do I just swap gaskets and go?
buffstuffbuddha is offline   Reply With Quote
Old 05-13-2009, 04:19 PM   #19
Senior Member
Posts like a Corvette

Join Date: Jan 2007
Location: San Diego, CA
Posts: 1,451
Thanks: 0
Thanked 0 Times in 0 Posts
agrazela is on a distinguished road
Default

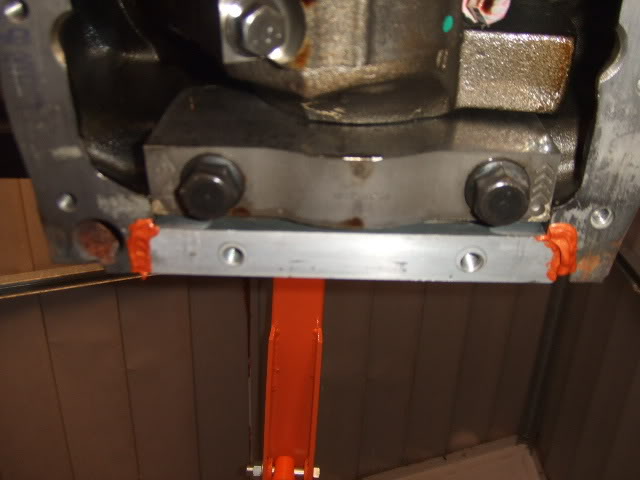

You will definitely want to put a dab of RTV in the corners, where the front cover and the rear cover meet the block:
Name:  L26139.jpg
Views: 0
Size:  35.8 KB

Name:  L26140.jpg
Views: 0
Size:  66.3 KB

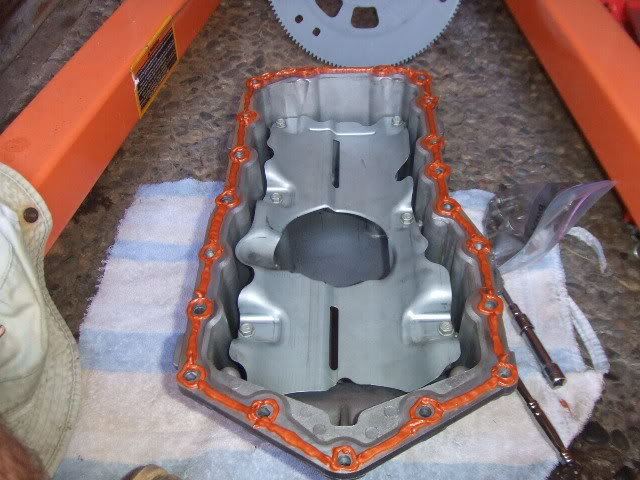

Even with that rubber oil pan gasket, I would recommend supplementing with a complete bead of RTV all the way around:
Name:  L26141.jpg
Views: 0
Size:  65.0 KB

Note: the pan shown is a Series 3 that uses no rubber gasket anyway; still I would recommend RTV plus the gasket for an aluminum Series 2 pan. I had to fix a leak on the wife'* 2004 LeSabre oil pan, where the rubber gasket had broken. I used a new gasket plus a complete bead of RTV, just to the outside of the rubber.
agrazela is offline   Reply With Quote
Old 05-13-2009, 04:47 PM   #20
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2007
Location: Cleveland, OH
Posts: 80
Thanks: 0
Thanked 0 Times in 0 Posts
buffstuffbuddha is on a distinguished road
Default

Thanks, but I saw your post a little too late. I just finished and let it run about 20 min, and no leaks. I let it cool and than let it run about another 15 min just to make sure and still no leaks. So everything is good, and I'll be sure to use RTV next time, but for now everything is good. Thanks to everyone who answered all my questions.
