Default motor mount tips.

So I need a new motor mount, no clue which one yet because I haven't been able to get under the car yet...should see tomorrow.

First, I need to know where all the motor mounts are located so I know where to look.

Secondly, I've read the posts about the solid hockey puck mount but won't be using this because I know the known vibration would drive me crazy most likely and it would probably risk causing some sort of problem with my warranty. Just wondering if there is any other solid motor mount offered that is offered by a parts manufacturer?

My warranty will cover the replacement of certain mounts in certain instances, that'* why I need an already manufactured mount that I could purchase and give to the mechanic if they install it.
Nashville Cowboy is offline   Reply With Quote
Old 04-24-2008, 12:36 AM   #2
Senior Member
Posts like a Northstar

Join Date: Feb 2004
Location: Fargo, ND
Posts: 685
Thanks: 0
Thanked 0 Times in 0 Posts
lglarum is on a distinguished road
Default

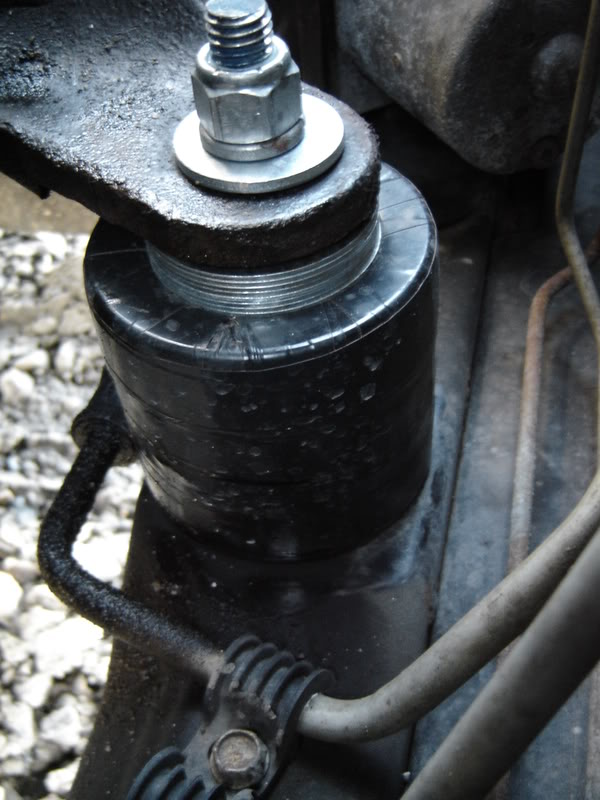

I think the main one that goes out is the front transmission mount. It comes off of the front of the tranny and bolts to a crossmember just ahead of it. Here'* a pic of my solid mount installed. The bracket attached to the top is bolted to the tranny via 3 bolts.
Name:  DSC00186.jpg
Views: 1
Size:  75.3 KB
lglarum is offline   Reply With Quote
Old 04-24-2008, 12:57 AM   #3
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Thanks: 0
Thanked 1 Time in 1 Post
Hans is on a distinguished road
Default

the vibration is not too bad with the hockey puck mount. It is noticable by myself and passengers but not very bad at all. The benefits are well worth it.


There is no other vendor that makes transaxle mounts for these cars.....you are on your own.
Hans is offline   Reply With Quote
Old 04-24-2008, 06:49 AM   #4
Senior Member
Certified GM nut

Join Date: Jun 2004
Posts: 1,933
Thanks: 0
Thanked 0 Times in 0 Posts
95seand78z28 is on a distinguished road
Default

Quote:
Originally Posted by Hans
the vibration is not too bad with the hockey puck mount. It is noticable by myself and passengers but not very bad at all. The benefits are well worth it.


There is no other vendor that makes transaxle mounts for these cars.....you are on your own.
X2. It took a little getting used to for me but now I don't even notice it. Pop the hood and watch the motor while somebody shifts from park to drive and back again. If the front mount is bad, you'll see a considerable amount of engine rock.
95seand78z28 is offline   Reply With Quote
Old 04-24-2008, 09:38 AM   #5
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Put a thin piece of neoprene between the pucks to damp the vibration.
willwren is offline   Reply With Quote
Old 04-24-2008, 09:40 AM   #6
Senior Member
Certified GM nut

Join Date: Jun 2004
Posts: 1,933
Thanks: 0
Thanked 0 Times in 0 Posts
95seand78z28 is on a distinguished road
Default

Quote:
Originally Posted by willwren
Put a thin piece of neoprene between the pucks to damp the vibration.
Does that really help? I always thought it was the bolt making contact with the mount and the carrier that made the most vibration.
95seand78z28 is offline   Reply With Quote
Old 04-24-2008, 11:33 AM   #7
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2007
Location: Buffalo, NY
Posts: 216
Thanks: 0
Thanked 0 Times in 0 Posts
Nashville Cowboy is on a distinguished road
Default

[quote="95seand78z28"]
Quote:
Originally Posted by Hans
Pop the hood and watch the motor while somebody shifts from park to drive and back again. If the front mount is bad, you'll see a considerable amount of engine rock.
This is where I notice the most movement, putting the car in drive. Is the front mount the transmission mount that was discussed earlier? Where is the front mount located?
Nashville Cowboy is offline   Reply With Quote
Old 04-24-2008, 11:38 AM   #8
Senior Member
Certified GM nut

Join Date: Jun 2004
Posts: 1,933
Thanks: 0
Thanked 0 Times in 0 Posts
95seand78z28 is on a distinguished road
Default

Quote:
Originally Posted by Nashville Cowboy
This is where I notice the most movement, putting the car in drive. Is the front mount the transmission mount that was discussed earlier? Where is the front mount located?
Yep... Open the hood, look between the radiator and the trans.
95seand78z28 is offline   Reply With Quote
Old 04-24-2008, 12:03 PM   #9
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2007
Location: Buffalo, NY
Posts: 216
Thanks: 0
Thanked 0 Times in 0 Posts
Nashville Cowboy is on a distinguished road
Default

I'm going to double check the location in a little bit. Just so you guys know I just talked with AutoZone and they said they have a solid mount.
Nashville Cowboy is offline   Reply With Quote
Old 04-24-2008, 12:08 PM   #10
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacDad is on a distinguished road
Default

Quote:
Originally Posted by Nashville Cowboy
Just so you guys know I just talked with AutoZone and they said they have a solid mount.
To them its solid, but it wont be. Stock mushy jellied filled solid is not a hockey puck.
