Default LIM, Valve Cover, Thermostat and Flush - Here we go!

I am working on a 2000 SSEi with 123K. After doing some research here I have decided to replace the LIM Gasket, VC gaskets (leaking), Thermostat and flush the coolant. I have bought all recommnded parts. I found the best prices at Oreilly'*.

Fel Pro Gaskets:
MS [email protected] $39.99
MS 95744 @ $9.99
6102 (TB Gasket) @ 4.49
VS 50465R (V/C gaskets w/ grommets) @ $49.99
35595

Dorman 47065 Heater Hoses @ $3.69

195 Thermo and Gasket

BWD Injector seal kits @ 3.29 x 6

Question: I need to drain the system to replace the LIM gasket and related parts, should I replace everything then flush the system or is there a way to flush it while I have everything apart?
atp is offline   Reply With Quote
Old 12-30-2009, 04:28 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

What I do is remove the thermostat and then use a shop vac to suck out some coolant. You just need to get the coolant down to the level of the heads. After you remove the LIM some coolant will drip in to the cam valley. Have a clean rag handy to dab up and coolant. Be sure to get it all. Then pour a small amount of oil around the cam and bearings to wash out any coolant that might be there.

I suggest getting a new set of coolant elbows, I think they cost about $5 or so.
Danthurs is offline   Reply With Quote
Old 12-30-2009, 05:26 PM   #3
atp
Junior Member
Thread Starter

Join Date: Feb 2009
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
atp is on a distinguished road
Default

Yeah - the Dorman part number above is the "coolant elbows."
atp is offline   Reply With Quote
Old 12-30-2009, 08:37 PM   #4
atp
Junior Member
Thread Starter

Join Date: Feb 2009
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
atp is on a distinguished road
Default

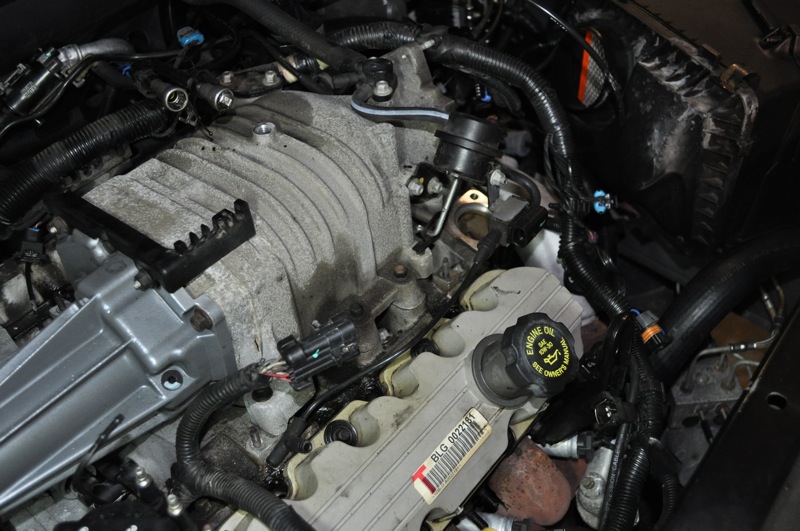

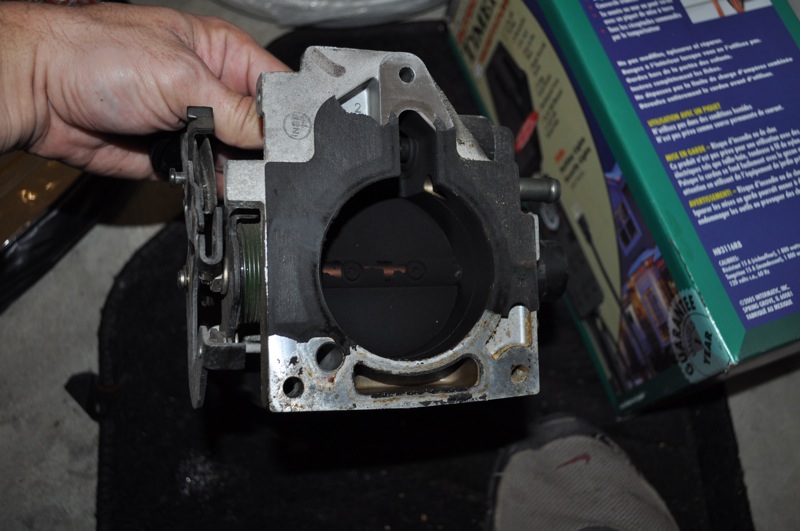

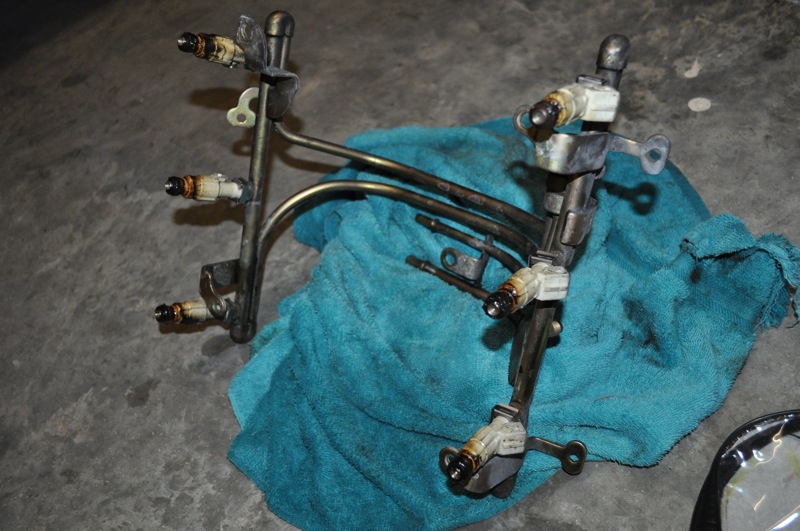

Managed to get most of the wires out of the way. The Alt removed. TB and rails off. I snapped a few pics. If you see something that may need attention, please feel free to add your 2 cents...
Attached Thumbnails
LIM, Valve Cover, Thermostat and Flush - Here we go!-dsc_0227.jpg   LIM, Valve Cover, Thermostat and Flush - Here we go!-dsc_0228.jpg   LIM, Valve Cover, Thermostat and Flush - Here we go!-dsc_0234.jpg
atp is offline   Reply With Quote
Old 12-30-2009, 08:39 PM   #5
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Clean the throttle body real good. And use a little spray lube on the injector O rings.
Danthurs is offline   Reply With Quote
Old 12-30-2009, 09:17 PM   #6
atp
Junior Member
Thread Starter

Join Date: Feb 2009
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
atp is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
Clean the throttle body real good. And use a little spray lube on the injector O rings.
I bought an injector seal kit that has 2 new O rings in it for the injectors. Should I replace them all?
atp is offline   Reply With Quote
Old 12-31-2009, 10:19 AM   #7
Senior Member
Posts like a Northstar

Nobotada84's Avatar

Join Date: Apr 2009
Location: Indianapolis, Indiana
Posts: 699
Thanks: 0
Thanked 0 Times in 0 Posts
Nobotada84 is on a distinguished road
Default

U coulda got all 6 from ZZP or even rockauto. Id say it wouldnt hurt. atleast u wont have to worry about any of them failing anytime soon.
Nobotada84 is offline   Reply With Quote
Old 12-31-2009, 10:49 AM   #8
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

Lubing up the O rings will make your life easy, I forgot to and ended up destroying a set of fuel rails
crunkfrunk is offline   Reply With Quote
Old 12-31-2009, 11:07 AM   #9
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Nothing wrong with replacing them. Keep the old ones as spares.
Danthurs is offline   Reply With Quote
Old 12-31-2009, 05:41 PM   #10
atp
Junior Member
Thread Starter

Join Date: Feb 2009
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
atp is on a distinguished road
Default

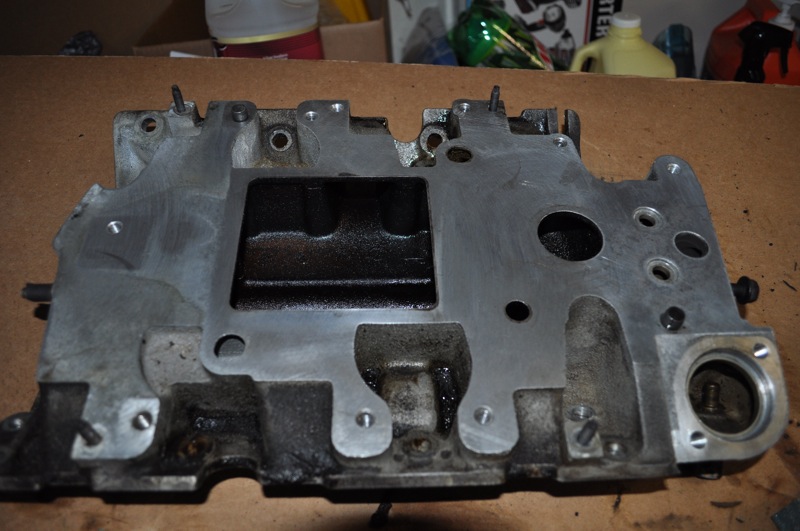

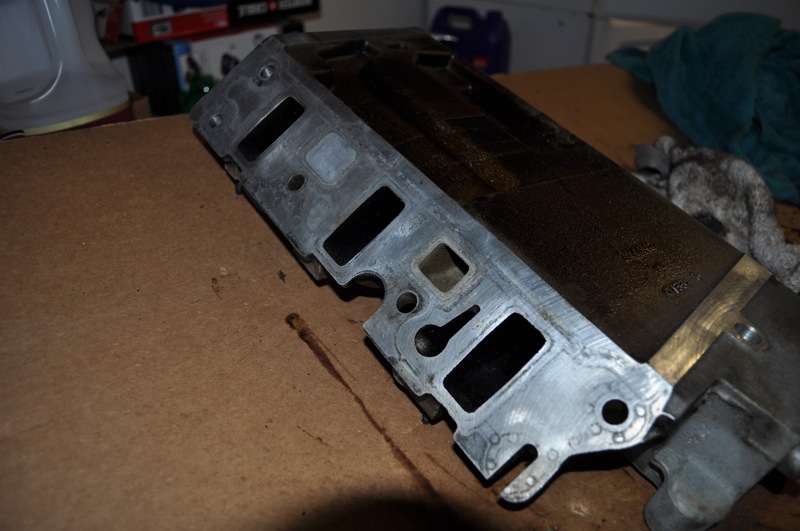

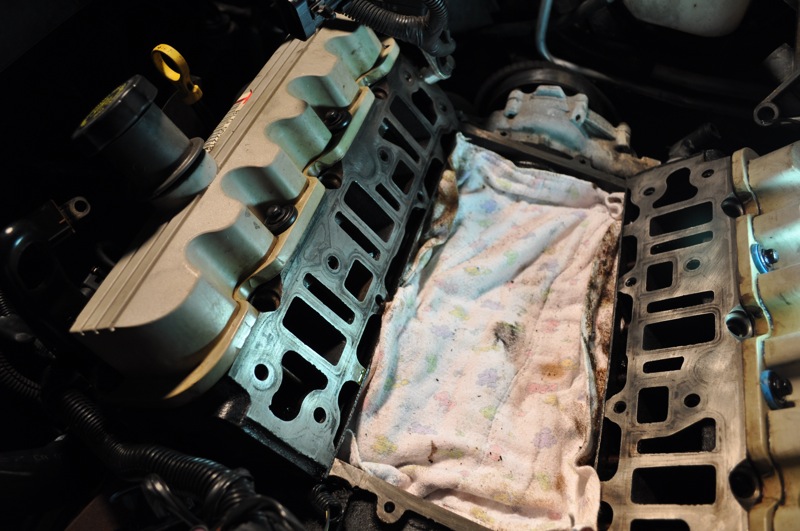

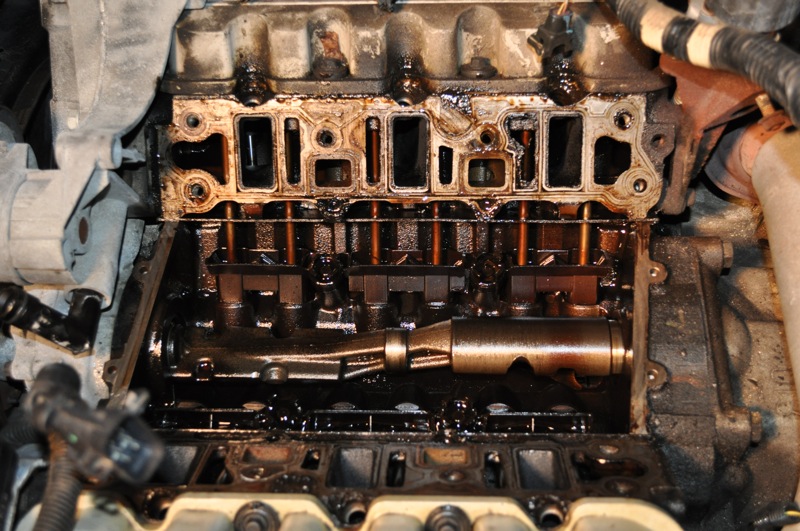

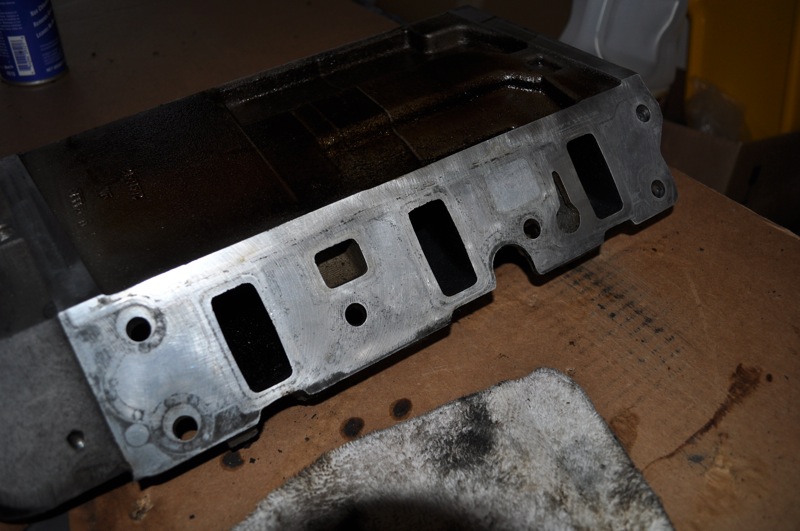

Here'* how it looked before cleaned and then cleaned up ready for reassembly.
Attached Thumbnails
LIM, Valve Cover, Thermostat and Flush - Here we go!-dsc_0226.jpg   LIM, Valve Cover, Thermostat and Flush - Here we go!-dsc_0231.jpg   LIM, Valve Cover, Thermostat and Flush - Here we go!-dsc_0234.jpg   LIM, Valve Cover, Thermostat and Flush - Here we go!-dsc_0235.jpg   LIM, Valve Cover, Thermostat and Flush - Here we go!-dsc_0238.jpg
