Old 12-22-2008, 07:12 PM   #11
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

The compressor should be located near the right rear wheel well. There is an air dryer on it as well as the level control lines. Disconnect the lines at the compressor and use a syringe and inject a liberal amount of isopropyl alcohol into all the lines. Close the system and go to the further point on each line and crack them open, one at time; while the compressor is running to discharge the alcohol. You can do the same blow down if you have an air compressor. After all the lines have been blown down, tighten all your fittings and change the air dryer.
Purplehazeir is offline   Reply With Quote
Old 12-22-2008, 07:13 PM   #12
Junior Member
Posts like a V-Tak
Thread Starter

drewpenzkover's Avatar

Join Date: Dec 2008
Posts: 26
Thanks: 0
Thanked 0 Times in 0 Posts
drewpenzkover is on a distinguished road
Default

good question! i asked that on my other thread but no response... wondering where my compressor is located on my 2000 also... and how do you get alcohol into the lines???? shop down the road said probably need new shocks and it would work again but i doubt it
drewpenzkover is offline   Reply With Quote
Old 12-22-2008, 07:15 PM   #13
Junior Member
Posts like a V-Tak
Thread Starter

drewpenzkover's Avatar

Join Date: Dec 2008
Posts: 26
Thanks: 0
Thanked 0 Times in 0 Posts
drewpenzkover is on a distinguished road
Default

anyone have a picture where this is located...? only thing i see where it could be is right above muffler in like a tin surronding case deal... wouldnt see how i could even get at that though...
drewpenzkover is offline   Reply With Quote
Old 12-22-2008, 07:50 PM   #14
Junior Member

Join Date: Jul 2008
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Photoman2008 is on a distinguished road
Default

wouldn't the alcohol dry out the rubber lines?
Photoman2008 is offline   Reply With Quote
Old 12-22-2008, 07:51 PM   #15
Junior Member
Posts like a V-Tak
Thread Starter

drewpenzkover's Avatar

Join Date: Dec 2008
Posts: 26
Thanks: 0
Thanked 0 Times in 0 Posts
drewpenzkover is on a distinguished road
Default

im thinkin that red heat bottle for taking water out of fuel tanks... just still wondering how to do this... need a picture or a really good explanation... im new to this elc stuff
drewpenzkover is offline   Reply With Quote
Old 12-22-2008, 09:33 PM   #16
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

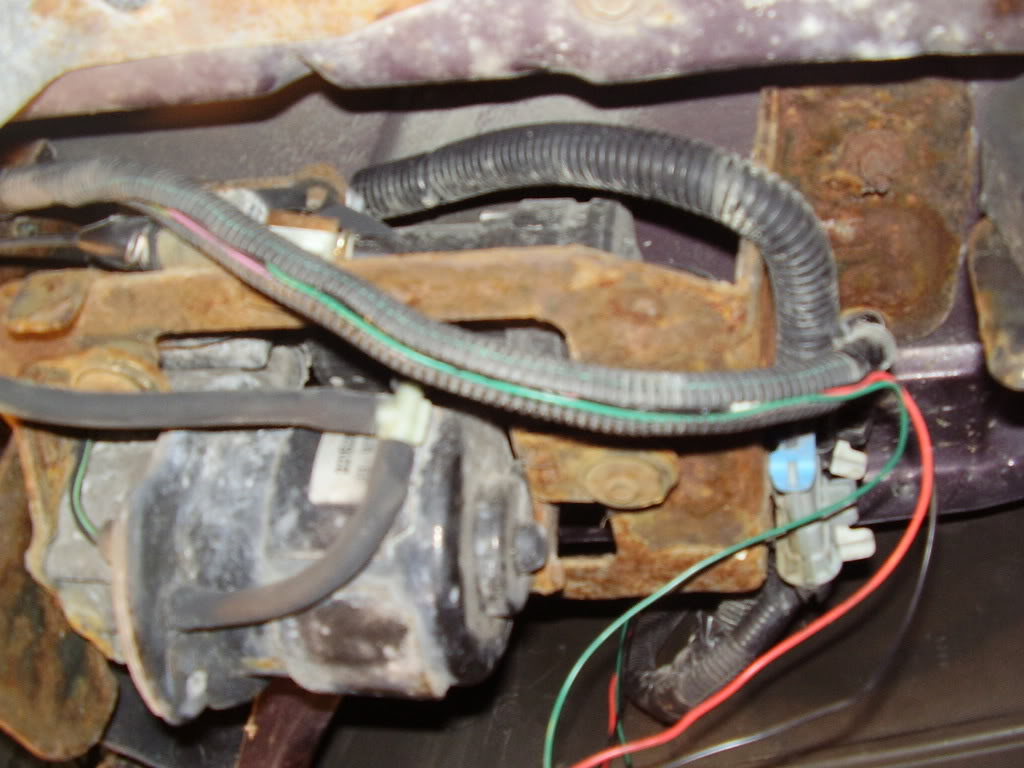

This is a picture of the pump on a 97. It'* located behind the passenger side rear tire. If you look under the fender you should see it.

Name:  P9110001-1.jpg
Views: 6
Size:  97.8 KB
Danthurs is offline   Reply With Quote
Old 12-23-2008, 12:47 AM   #17
Junior Member
Posts like a V-Tak
Thread Starter

drewpenzkover's Avatar

Join Date: Dec 2008
Posts: 26
Thanks: 0
Thanked 0 Times in 0 Posts
drewpenzkover is on a distinguished road
Default

alright thanks.. ill check er out when i pull it in for that tranny "flush" i plan on doing one these days, let ya know how it goes!
drewpenzkover is offline   Reply With Quote
Old 06-26-2011, 08:34 PM   #18
Junior Member

Join Date: Jun 2011
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
kerschbh is on a distinguished road
Default

can somone post a diagram for the ELC air line routing and attachement points for a 2002 Olds Silhouette mini van. Thanks!
kerschbh is offline   Reply With Quote
