Default Front stabilizer bar links snapped on both sides

The oil pressure sensor has been going crazy lately, going for 90 to 0 back and forth, even though I replaced the sensor last year with a OEM.....

Jacked up the front end and removed the tire to inspect the sensor, and I found that my front stabilizer bar link was not connected. Did a quick check on the front left and it also was not connected.

This answered a issue I had a few weeks ago driving on the interstate and moved lanes while accelerating and felt like the Bonny was going to spin.

Found the parts on RockAuto (Moog K8989) and will replace the links later in the week. will be driving the Bravada until then.
Attached Thumbnails

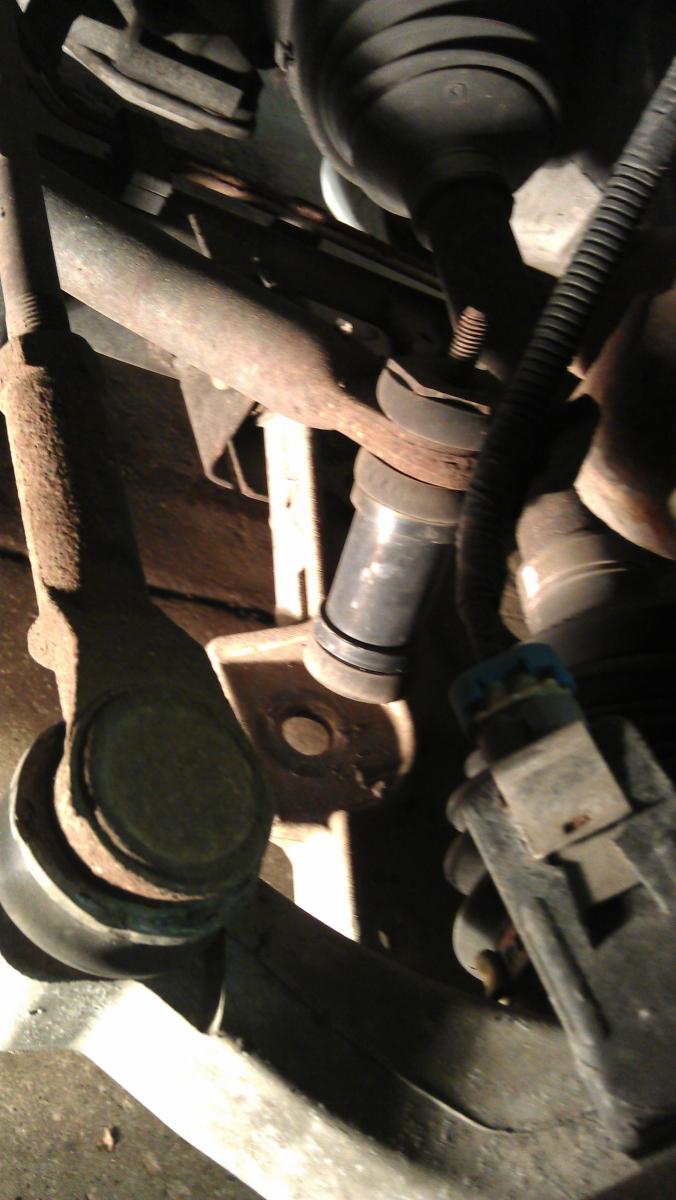

Front stabilizer bar links snapped on both sides-sway-bar.jpg
GunsOfNavarone is offline   Reply With Quote
Old 09-23-2012, 02:22 PM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

seems fairly common in rust belt,the one in my bonnie rusted through, you could tell though because it was making a banging noise. i replaced both
jwfirebird is offline   Reply With Quote
Old 09-23-2012, 04:03 PM   #3
Senior Member
Posts like a Turbo

Shaun_300's Avatar

Join Date: Feb 2012
Location: Ottawa, Ontario
Posts: 308
Thanks: 0
Thanked 1 Time in 1 Post
Shaun_300 is on a distinguished road
Default

Yep seen lots of those break in this part of the continent! Water gets down and eats the bolt away. All the ones I've changed have had 2 in the kit so you can change both at the same time. If one broke chances are the other one is gonna break soon.
Shaun_300 is offline   Reply With Quote
Old 10-02-2012, 08:48 AM   #4
Retired Administrator

True Car Nut
Thread Starter

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,856
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

Went to replace these with the MOOG heavy duty replacement kit last night. Could not compress the bushings enough to start the nut on the bolt. It was easier to replace the struts....

Will try to find a way to compress the bushings tonight. If I can't do it, I will revert back to the regular duty replacement. While the front end was on jack stands, I noticed my right outer tie rod was in bad shape. Went to remove it and the nut was rusted to the bolt and no threads. Had to sawzall off the nut, and went ahead and did the same to the left side.
GunsOfNavarone is offline   Reply With Quote
Old 10-02-2012, 12:02 PM   #5
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

sometimes to get the end links you have to jack up the control arm and sorta play with the angles with the jack and that will get you the extra
jwfirebird is offline   Reply With Quote
Old 10-02-2012, 12:54 PM   #6
Retired Administrator

True Car Nut
Thread Starter

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,856
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

Thanks Justin, tried that last night, but had no lights, will try again tomorrow with some lighting. All the research I read was this job was a piece of cake, I have found it not so. I had to cut out the old broken bar links, and now have a hassle putting in the replacements. It appears easy once one learns the tricks of it.
GunsOfNavarone is offline   Reply With Quote
Old 10-02-2012, 07:15 PM   #7
Senior Member
True Car Nut

MouSe's Avatar

Join Date: Oct 2009
Location: Atlanta
Posts: 5,988
Thanked 2 Times in 2 Posts
MouSe is on a distinguished road
Default

I have to replace mine as well. The drivers side is bent, but not broken.

I don't think I bought the HD ones, as mine are the black rubber and not the blue poly style. Gonna do it tomorrow in my suspension class.
MouSe is offline   Reply With Quote
Old 10-02-2012, 07:18 PM   #8
Retired Administrator

True Car Nut
Thread Starter

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,856
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

"Gonna do it tomorrow in my suspension class."

Good luck and let us know how it goes.
GunsOfNavarone is offline   Reply With Quote
Old 10-03-2012, 10:02 PM   #9
Senior Member
True Car Nut

MouSe's Avatar

Join Date: Oct 2009
Location: Atlanta
Posts: 5,988
Thanked 2 Times in 2 Posts
MouSe is on a distinguished road
Default

Got it done tonight.

Drivers side was snapped, easy removal. Passenger side was a bear as everything was all seized up. Once it was out, saw it was nice and bent. Only a matter of time before it would have broken too.

Putting the new ones in sucked. Took 3 of us using a giant prybar to squish the swaybar down enough plus a pair of channel locks holding it from the bottom so I could start the nut. Passenger side was easy money. Used the air ratchet to tighten them down and we're good to go.
MouSe is offline   Reply With Quote
Old 10-04-2012, 12:56 AM   #10
Retired Administrator

True Car Nut
Thread Starter

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,856
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

Good job Mouse.

I got mine on tonight also. I took a deep 14mm socket and put it on the lower bolt. Put a floor jack under the socket and jacked up. It provided enough pressure to start the threads.
GunsOfNavarone is offline   Reply With Quote
