Frame cracked at front motor mount - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


2000-2005 Discuss your 2000-2005 Bonneville SE, SLE, and SSEi Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 03-03-2012, 11:33 PM   #1
Member
Posts like a V-Tak
Thread Starter

Join Date: Aug 2004
Location: St Louis
Posts: 59
Thanked 0 Times in 0 Posts
BADLEG is on a distinguished road
Default Frame cracked at front motor mount

Saw engine moving today, had already replaced mount..found the frame cracked at the point where the stud goes through, anybody else ever see this?

One might think that I take this to the track and push the envelope with it but nothing could be farther from the truth, my wife drives this thing and babies it big time, of course situations come up where you have to accelerate and there is pressure put on the mounts but really?

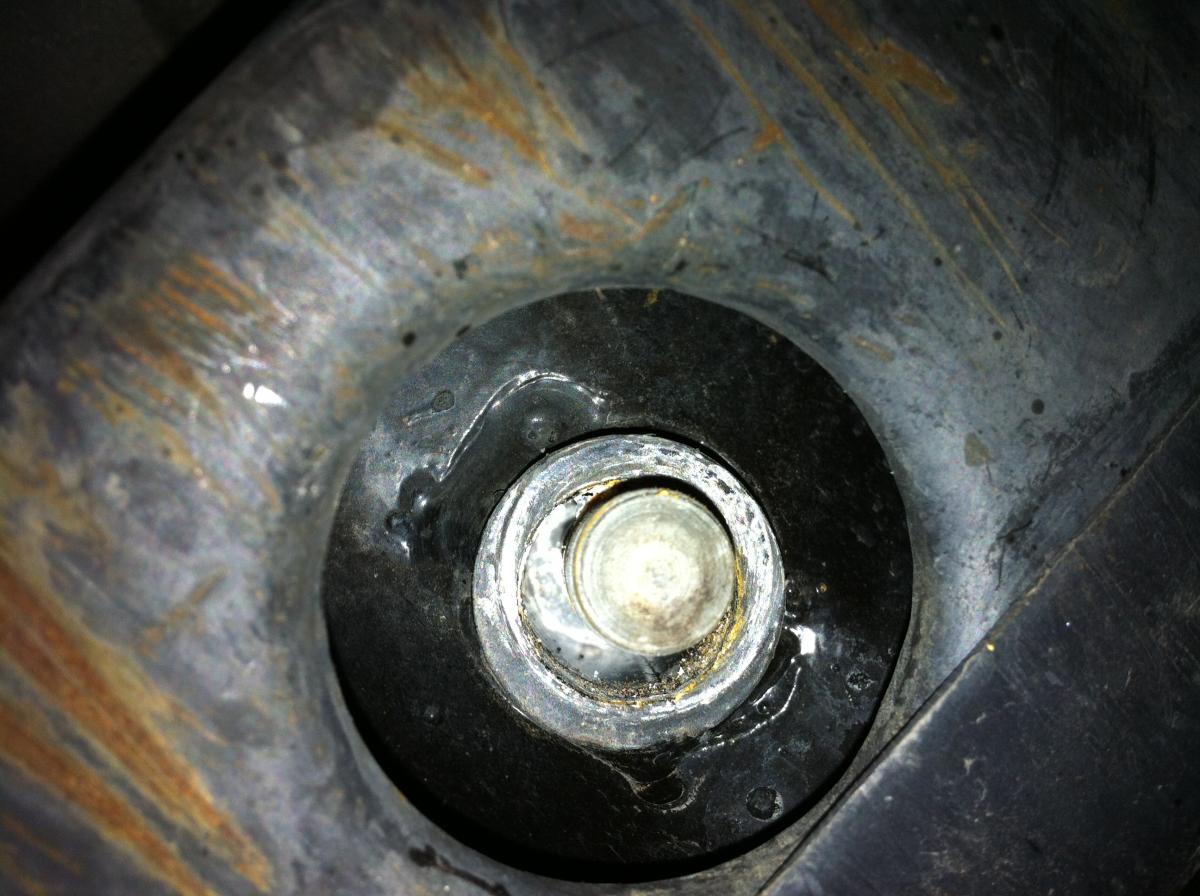

These shots are from under the front of the car near the radiator looking up at the nut/stud that attaches the motor mount to the frame.

Sorry the pics arent as clear as I wish they were, but I think you can see the crack around the mounting point

Kinda looking for suggestions, looking like it might be time to start welding?
Attached Thumbnails
Frame cracked at front motor mount-cracked-mount.jpg   Frame cracked at front motor mount-cracked-mount-2.jpg
BADLEG is offline   Reply With Quote
Old 03-04-2012, 10:42 AM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I believe that'* a washer you see there. You can jack up the car, support the subframe with jack stands and remove that bolt for inspection.
Danthurs is offline   Reply With Quote
Old 03-05-2012, 10:05 AM   #3
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Yeah, I don't think that is frame rail where you see the cracks. Like Dan said, remove the nut, and inspect the area. Probably only needs a new washer.
2kg4u is offline   Reply With Quote
Old 03-05-2012, 11:05 PM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: Aug 2004
Location: St Louis
Posts: 59
Thanked 0 Times in 0 Posts
BADLEG is on a distinguished road
Default

Thanks for the response fellas. Maybe I over reacted? If you look the first picture the nut is off, the second pic it is on...

I looked again at it today, putting it in drive and accelerating slightly, it appears that the movement is all coming from the oem marshmallow mount, I watched under neath and the stud in the pic, (which is the one coming out of the bottom of the mount) does not move and the frame apparently is fine..

I guess I just freaked when I saw how much movement there was in the mount and the mount was not seperated or broken like you see when they fail, just flexes more than I was expecting..
BADLEG is offline   Reply With Quote
Old 03-05-2012, 11:27 PM   #5
Member
Posts like a V-Tak
Thread Starter

Join Date: Aug 2004
Location: St Louis
Posts: 59
Thanked 0 Times in 0 Posts
BADLEG is on a distinguished road
Default

I was gonna edit my last post but found out that thats not an option? ok, Anyway was just gonna throw in that the washer is made on the nut so that wasn't the problem, it was just me over reacting and my 50 something eyes dont do well looking upside down through the wrong side of bifocals!
BADLEG is offline   Reply With Quote
