Default doing the UIM (Dorman) and LIM gasket soon

I've read a lot of good tips and info in the threads about this. However I didn't see a source for the antifreeze Elbow that is recommended to be replaced. Is this a dealer-only item? One other question, what is the best way of getting the air out of the coolant system after replacing these? Thanks!
Woody_02SilverSE is offline   Reply With Quote
Old 10-31-2006, 08:10 PM   #2
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default

Woody, Check this in Techinfo http://www.bonnevilleclub.com/forum/...=article&k=100
You can find lots of good information there.
markwb is offline   Reply With Quote
Old 10-31-2006, 09:44 PM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Jun 2006
Location: south central PA
Posts: 79
Thanks: 0
Thanked 0 Times in 0 Posts
Woody_02SilverSE is on a distinguished road
Default

Thanks, I always forget to look in TechInfo Also found the GM elbow # in JR'* How-To.
Woody_02SilverSE is offline   Reply With Quote
Old 10-31-2006, 11:49 PM   #4
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

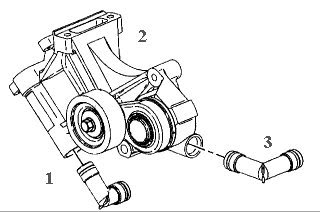

Woody - yours will have 2 plastic coolant elbows...

Name:  tensioner.jpg
Views: 50
Size:  14.5 KB

#3, in the picture, which will be the one that you have the GM part number for, as well as #1 in the picture. When I tried to get a part number from a local GM dealer for that, they couldn't find one. If you're doing the work, I'd suggest replacing both elbows. The Dorman Help #47065 has both elbows in the package.
Archon is offline   Reply With Quote
Old 11-01-2006, 12:04 AM   #5
Senior Member
Posts like a Camaro

Join Date: Dec 2005
Location: Clovis, CA
Posts: 851
Thanks: 0
Thanked 0 Times in 0 Posts
MACDRIVE is on a distinguished road
Default

Archon,

How did you get that image? Did you scan it directly out of an FSM or do you have an AllData account?
MACDRIVE is offline   Reply With Quote
Old 11-01-2006, 11:05 AM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Dick...are you sure 00'* have both elbows? I thought that was early S2'*.

Alldata account Mac...
BillBoost37 is offline   Reply With Quote
Old 11-01-2006, 11:13 AM   #7
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
Dick...are you sure 00'* have both elbows? I thought that was early S2'*.

Alldata account Mac...

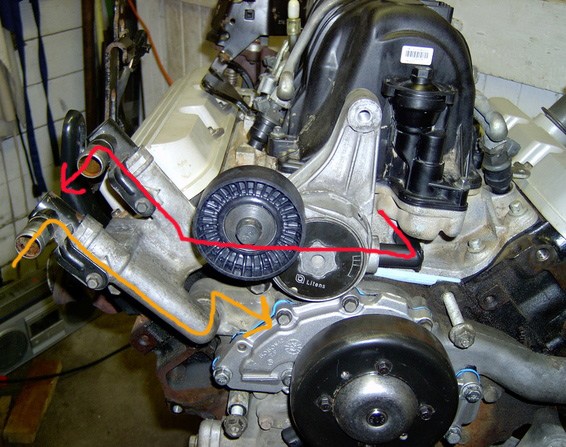

Nah, the early SII, (at least my '95) just has one plastic elbow for the joint to the LIM. The water pump fitting is an elbow cast into the tensioner assembly with its own o-ring. Here'* a pic of an early SeriesII:

Name:  heaterflow.jpg
Views: 38
Size:  88.8 KB
bill buttermore is offline   Reply With Quote
Old 11-01-2006, 11:19 AM   #8
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

While we are actually ON the topic, does anyone know a source for aluminum rather than plastic coolant elbows? I have heard them referred to here on BC, but none of my local parts houses know anything about them.
bill buttermore is offline   Reply With Quote
Old 11-01-2006, 11:21 AM   #9
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Woody, you did read the Techinfo article on the UIM/LIM I hope?
http://www.bonnevilleclub.com/forum/...e=article&k=38
bill buttermore is offline   Reply With Quote
Old 11-01-2006, 11:48 AM   #10
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

Bill, so far as I can tell the metal version of the coolant elbow is no more than a myth. I'd love it if someone could prove me wrong on this, but.....don't think so....
