Default dashboard lights

what do I all need to do to replace a burned out bulb in my gauge cluster? The bulb behind the volts gauge is burned out. This is on a 2000 SE
Merrill'spontiac is offline   Reply With Quote
Old 04-29-2007, 04:20 PM   #2
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Feb 2006
Location: Muskego Wisconsin
Posts: 182
Thanks: 0
Thanked 0 Times in 0 Posts
Merrill'spontiac is on a distinguished road
Default

any ideas?
Merrill'spontiac is offline   Reply With Quote
Old 04-29-2007, 05:10 PM   #3
Junior Member

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
wjcollier07 is on a distinguished road
Default

IIRC, you just need to remove the top of the dash and replace the bulb. Anyone here have a 2k+ FSM?
wjcollier07 is offline   Reply With Quote
Old 04-29-2007, 06:24 PM   #4
Senior Member
Posts like a Turbo

Join Date: Jan 2007
Location: South Bend, IN
Posts: 223
Thanks: 0
Thanked 0 Times in 0 Posts
BoneZ is on a distinguished road
Default

I'm getting ready to convert all my outside lights over to LED'*. After that project, i plan on changing all my inside lights/dash lights over to LED. When you figure out how to change the bulbs, let us know what'* involved getting the dash apart to get to the bulbs if you could. Thank you.
BoneZ is offline   Reply With Quote
Old 04-29-2007, 07:42 PM   #5
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

2000+ dashes are already LED
harofreak00 is offline   Reply With Quote
Old 04-29-2007, 10:53 PM   #6
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Feb 2006
Location: Muskego Wisconsin
Posts: 182
Thanks: 0
Thanked 0 Times in 0 Posts
Merrill'spontiac is on a distinguished road
Default

is it unusual that a bulb burned out?
Merrill'spontiac is offline   Reply With Quote
Old 04-30-2007, 12:16 AM   #7
Junior Member

Join Date: Apr 2007
Location: PA
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Gorge is on a distinguished road
Default

This may sound a little counter intuitive but, when a few of my dash LEDs went out I gave it a few good smacks and they relit. This took a few trys as some would come back on while others did not. I felt like the Fonz. For reference, the dash is very easy to remove once you've removed the bezel. Other than the two pop-out pins that are directly above the gauge cluster, the whole bezel pops out with some gentle force. Start pulling below the AC controls The ring around the key will pop out on its own as you pull the bezel. Just remember to pull the two plastic pins from above the gauge cluster first. I've never put mine back. To pull the gauge cluster, there are a few spring tabs that you need to depress to release it. I pulled mine out, removed the back cover, then decided that it was not worth going any further. This is when I tried the smacking tecnique. I don't suggest this move for the radio though because the few lightbulbs in the radio are super sensitive to shock. I've replaced the three bulbs behind the display and I could see that a few of the smaller ones were out as well. Good luck.
Gorge is offline   Reply With Quote
Old 04-30-2007, 05:28 PM   #8
Senior Member
Posts like a Turbo

Join Date: Jan 2007
Location: South Bend, IN
Posts: 223
Thanks: 0
Thanked 0 Times in 0 Posts
BoneZ is on a distinguished road
Default

Quote:
Originally Posted by harofreak00
2000+ dashes are already LED
Mine sure doesn't look like it. LED'* don't put out heat like incandescent bulbs do and i can feel the heat from the incandescent bulb(*) inside my foglight/dimmer switch housing. If our dashes were LED, why would they mix LED and incandescent bulbs throughout the dash? Doesn't make sense to me. And if they are mixed, i will unmix them and make them all LED, and since several different colors of LED bulbs are offered at Pep Boys and even online, i'd like to add some color to my dash. Like make the fuel gauge green and of course make the boost gauge blue.
BoneZ is offline   Reply With Quote
Old 04-30-2007, 05:32 PM   #9
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

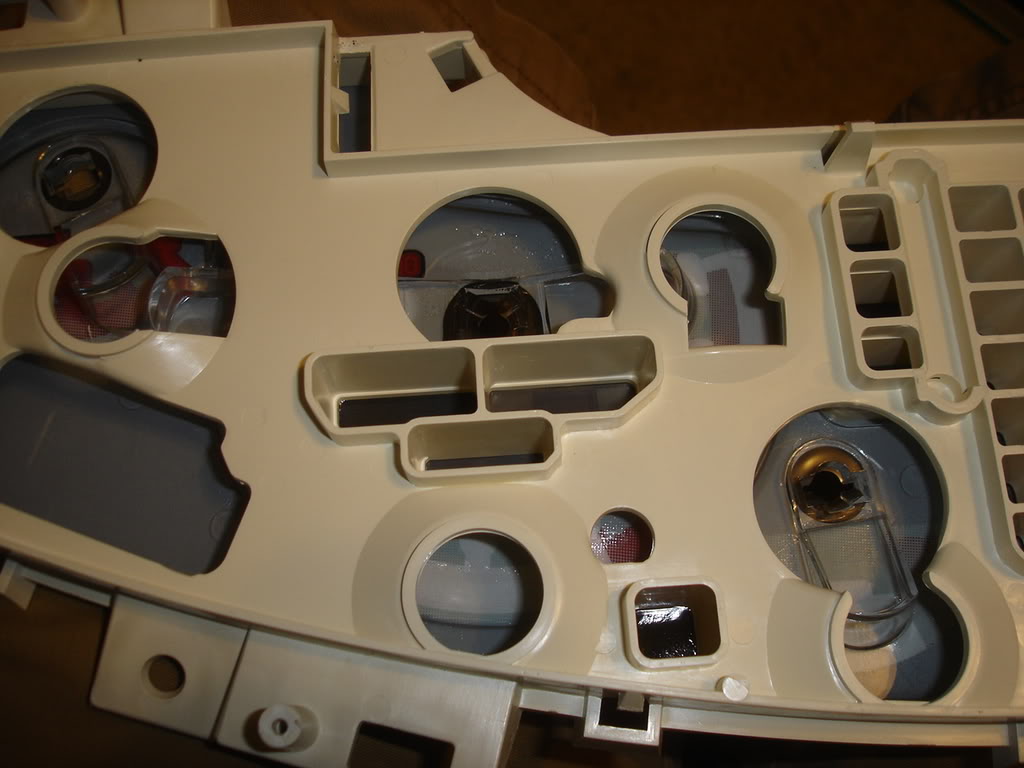

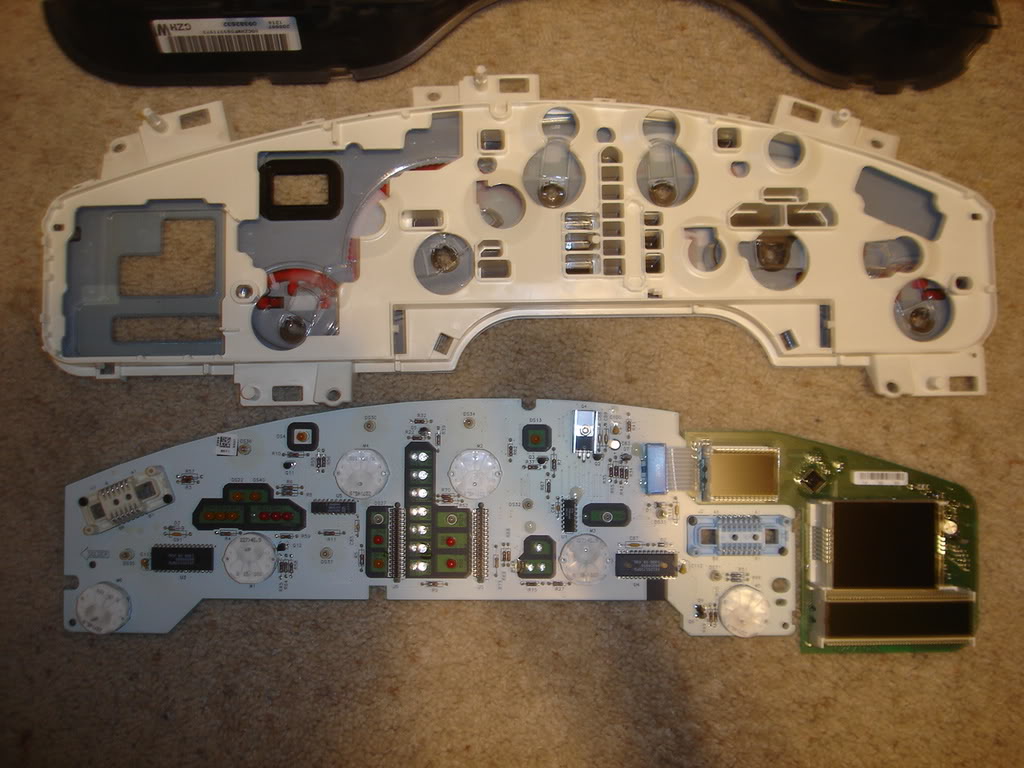

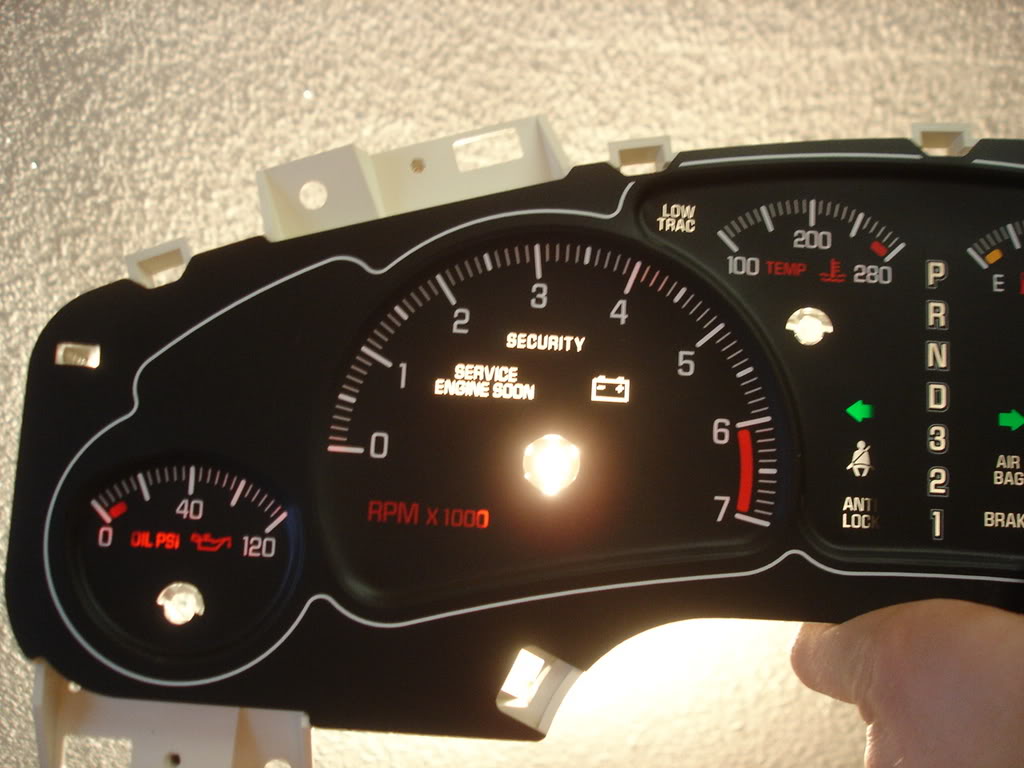

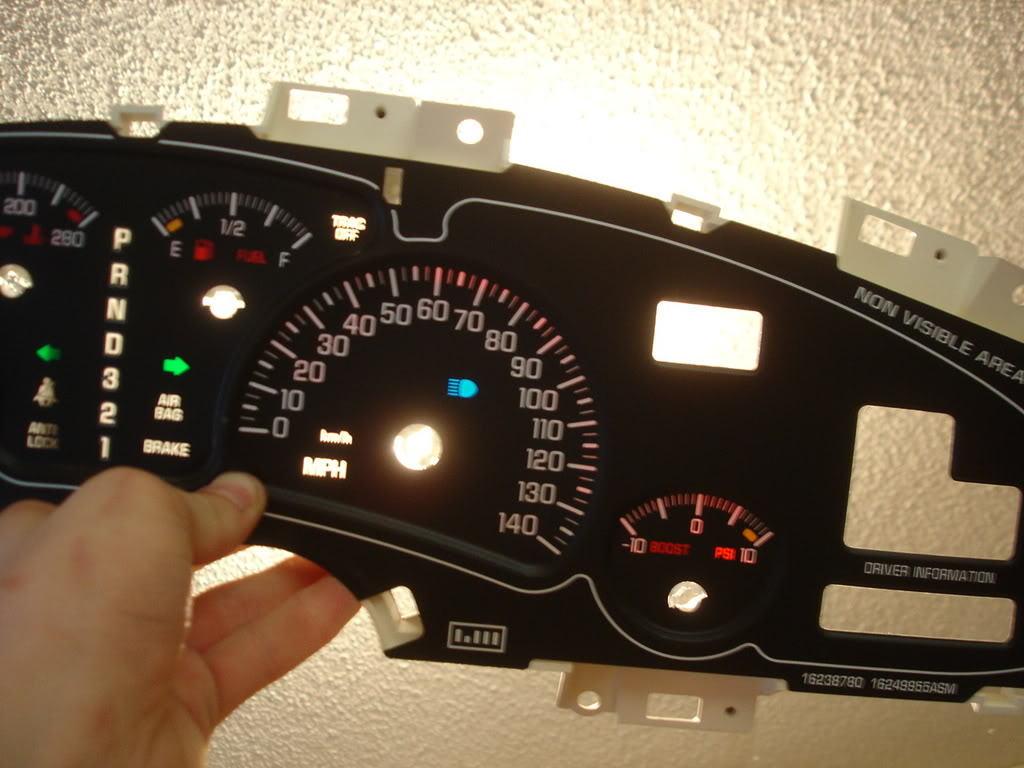

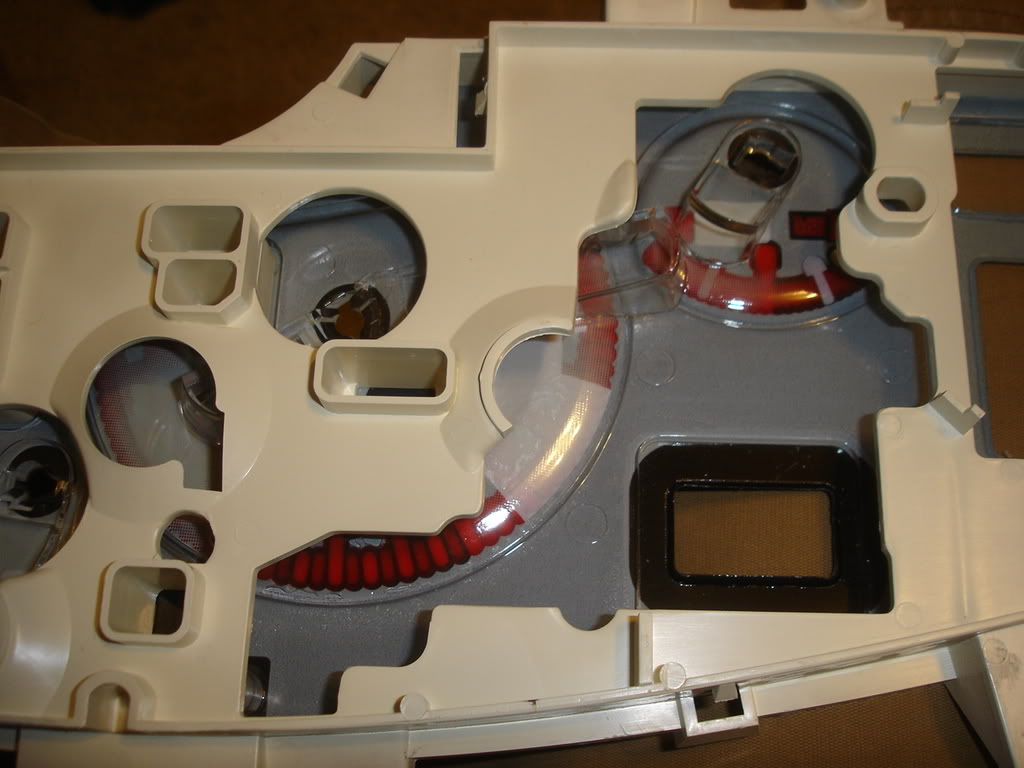

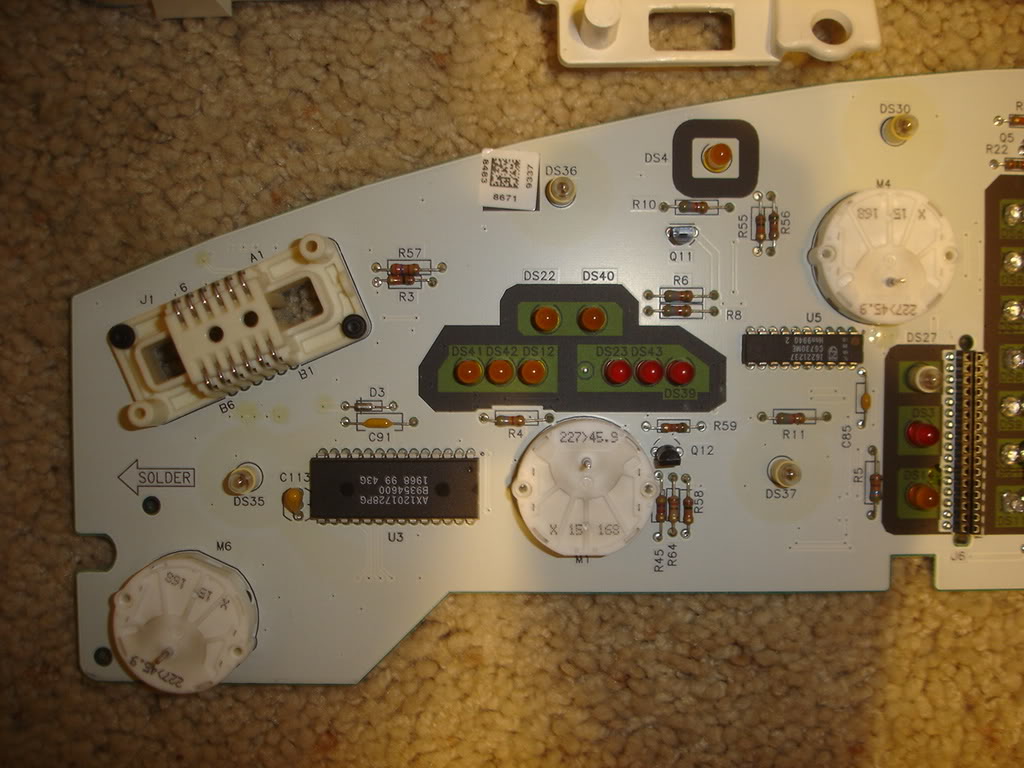

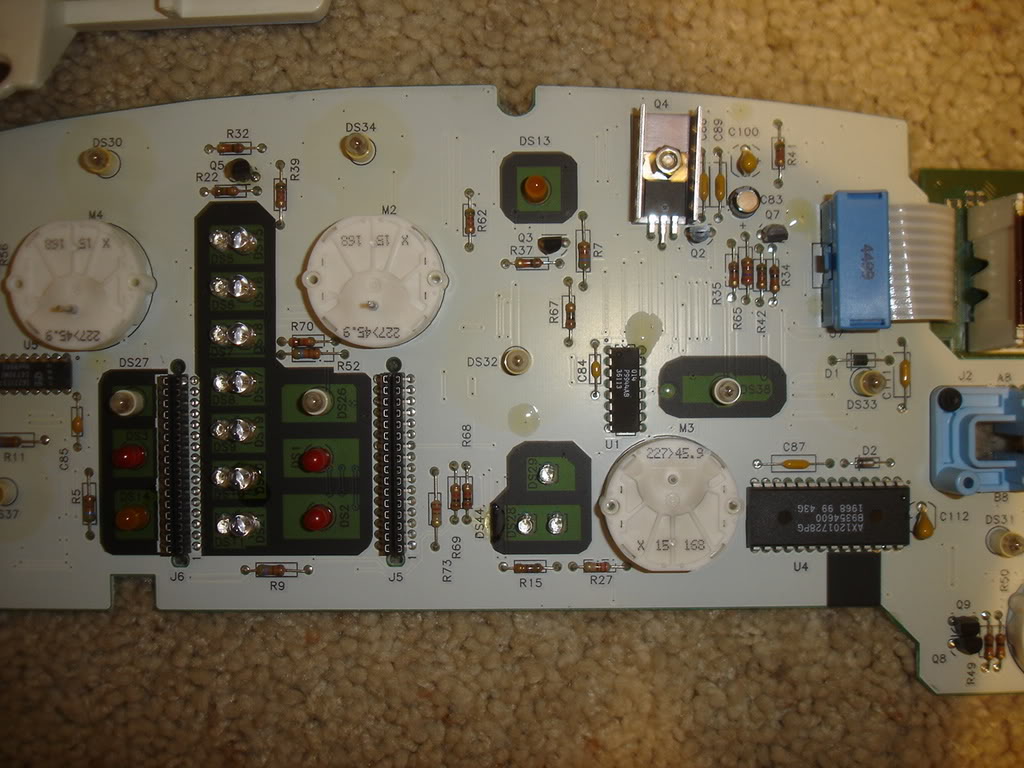

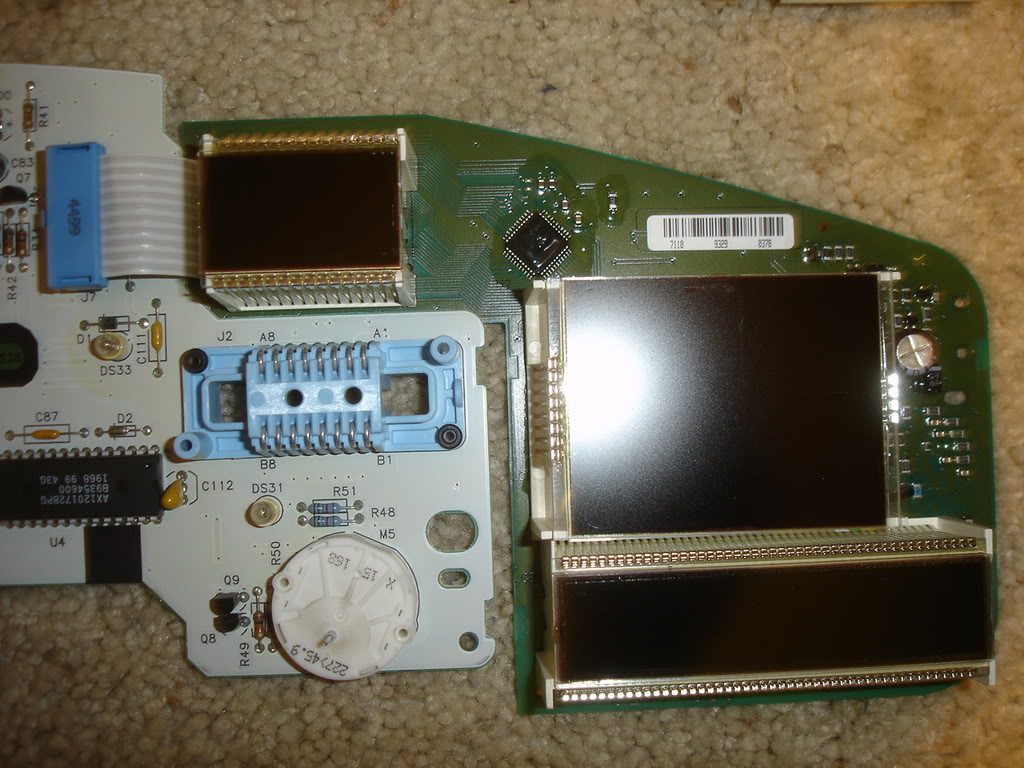

ill pull apart my spare cluster and get some pics for ya... i havent had it apart yet, im just going off what i have heard about 2000+.
harofreak00 is offline   Reply With Quote
Old 04-30-2007, 08:25 PM   #10
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

Name:  DSC06889.jpg
Views: 22
Size:  123.1 KB
Name:  DSC06890.jpg
Views: 19
Size:  116.0 KB
Name:  DSC06891.jpg
Views: 14
Size:  130.5 KB
Name:  DSC06892.jpg
Views: 18
Size:  145.7 KB
Name:  DSC06893.jpg
Views: 26
Size:  126.5 KB
Name:  DSC06894.jpg
Views: 23
Size:  92.0 KB
Name:  DSC06895.jpg
Views: 19
Size:  97.9 KB
Name:  DSC06896.jpg
Views: 18
Size:  83.5 KB
Name:  DSC06897.jpg
Views: 16
Size:  80.9 KB
harofreak00 is offline   Reply With Quote
