Default Cruise control

My cruise stopped working about two weeks ago for no reason. It did this about four years ago, but just started working again on its own. So I am trying to figure out where to start diagnosing this problem and how. I checked the fuse and made sure the wires to the box all looked good and where plugged in, but that was all so far and it all looked good. Any ideas or anyone else have this problem?
jshelton54 is offline   Reply With Quote
Old 05-09-2008, 11:59 AM   #2
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

Any of the switches for the cruise control (on/off, resume, set) can cause a problem. One place to start looking is the stop light switch for the ABS/TCC which also controls the release of the cruise, for proper operation.
Archon is offline   Reply With Quote
Old 05-10-2008, 11:30 PM   #3
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Jul 2006
Location: Meridian, ID
Posts: 508
Thanks: 0
Thanked 0 Times in 0 Posts
jshelton54 is on a distinguished road
Default

Were do I find that Archon? I am fairly confident that the switches are intact and okay. But again not 100% sure. Just wondering if there is something I can test in the wire harness to see if it is getting power or what. This is a tough one.
jshelton54 is offline   Reply With Quote
Old 05-10-2008, 11:58 PM   #4
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

It is down by the brake pedal - the top switch.
Name:  brakelampswitches.gif
Views: 21
Size:  7.5 KB

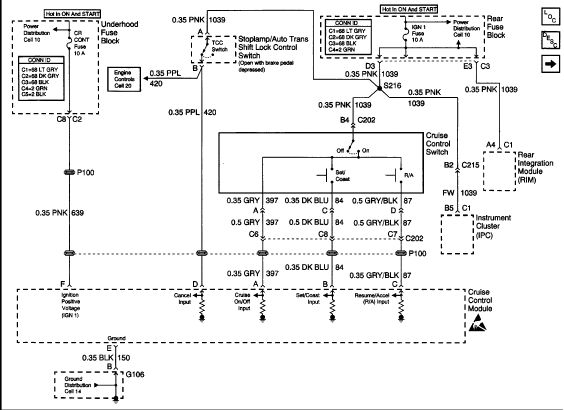

This is the power and ground electrical diagram for the cruise control module
Name:  00CruiseElectrical.gif
Views: 15
Size:  25.1 KB
Archon is offline   Reply With Quote
Old 05-11-2008, 11:38 AM   #5
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Jul 2006
Location: Meridian, ID
Posts: 508
Thanks: 0
Thanked 0 Times in 0 Posts
jshelton54 is on a distinguished road
Default

Okay, yep, that'* what I thought you ment. I will check it out and see if that might be it.
jshelton54 is offline   Reply With Quote
Old 05-11-2008, 12:14 PM   #6
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

IIRC, a faulty throttle position sensor can also cause problems with the cruise. I'd expect there to be other issues also if that was bad.
Archon is offline   Reply With Quote
Old 05-15-2008, 04:56 PM   #7
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Jul 2006
Location: Meridian, ID
Posts: 508
Thanks: 0
Thanked 0 Times in 0 Posts
jshelton54 is on a distinguished road
Default

Problem solved. Was the brake sensor.
jshelton54 is offline   Reply With Quote
Old 05-15-2008, 10:09 PM   #8
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

Good job. Thanks for reporting back.
