Old 10-22-2007, 05:02 PM   #11
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2007
Location: South Bend, IN
Posts: 223
Thanks: 0
Thanked 0 Times in 0 Posts
BoneZ is on a distinguished road
Default

Quote:
Originally Posted by Archon
The AllData link shows it on the left side. The arrow toward the top of the picture points to the front of the car. The rectangular area farther down shows the pass-through to the interior of the car. That'* the same picture that is in the FSM.
Ok, if you're standing in the back of the car looking in the trunk, the actual module is on the drivers side of the trunk The Alldata diagram shows the module to be on the passenger side of the trunk.

Either way, if the diagram is wrong, the module i found still says "Compass Transducer" so it can't be anything else.
BoneZ is offline   Reply With Quote
Old 10-22-2007, 11:52 PM   #12
Senior Member
Posts like a Camaro

Join Date: Apr 2005
Location: Niagara Falls Ontario Canada
Posts: 1,121
Thanks: 0
Thanked 0 Times in 0 Posts
brianj is on a distinguished road
Default Re: Compass question/problem for this year of Bonne

Quote:
Originally Posted by BoneZ




Upon closer inspection, it says "Compass Transducer", whatever that means:


That is your compass module. I've had repeatative compass issues in my car with "dinging calibration" messages on the DIC all the time, and when I unplug that module using that wire harness it goes away. You have the compass module there my friend!
Archon'* shielding suggestion is your best bet.....but likely you'll have lots of calibration issues to go along with it!
brianj is offline   Reply With Quote
Old 10-23-2007, 12:46 AM   #13
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

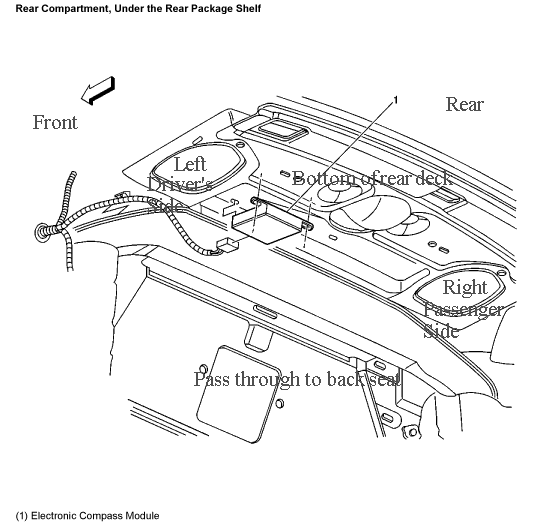

Name:  compass.gif
Views: 0
Size:  25.5 KB
Archon is offline   Reply With Quote
Old 10-23-2007, 01:17 AM   #14
Senior Member
Posts like a Corvette

Join Date: Nov 2006
Location: Alberta, Canada
Posts: 1,446
Thanks: 0
Thanked 0 Times in 0 Posts
ddalder is on a distinguished road
Default

In a 2002, there are only two possible modules mounted under the rear deck. If you have OnStar, there will be one on the right side and it will have a single coaxial cable going into it. The compass module is mounted under the left side and will have a connector with several conductors. These are your only two options. The speakers can cause problems for BOTH of these modules. The difference being that if you don't use OnStar, the adverse effect is of no concern.

You are looking for the module with the single connector and several conductors under the driver side rear deck.
ddalder is offline   Reply With Quote
Old 10-23-2007, 01:27 AM   #15
Senior Member
Posts like a Camaro

Join Date: Apr 2005
Location: Niagara Falls Ontario Canada
Posts: 1,121
Thanks: 0
Thanked 0 Times in 0 Posts
brianj is on a distinguished road
Default

Unplug it...........if your compass stops working.....that'* it...........simple...............!

Now finding a solution.....well that'* where the fun begins! Goodluck.
brianj is offline   Reply With Quote
