Old 09-10-2006, 02:21 PM   #1
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default calling ARCHON, need regulator advice

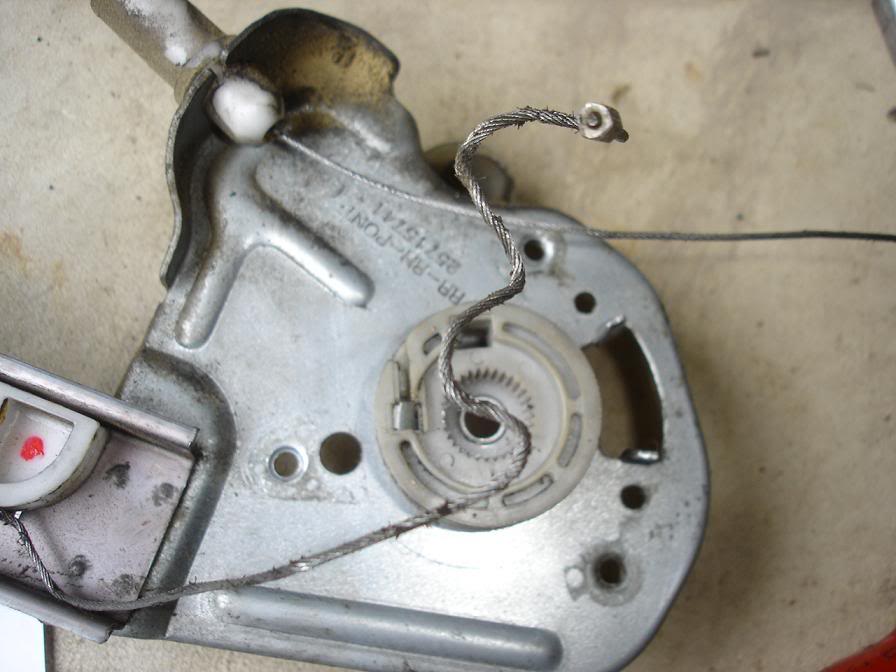

is this cable to messed up to reuse?
Name:  DSC04214.jpg
Views: 1
Size:  64.7 KB

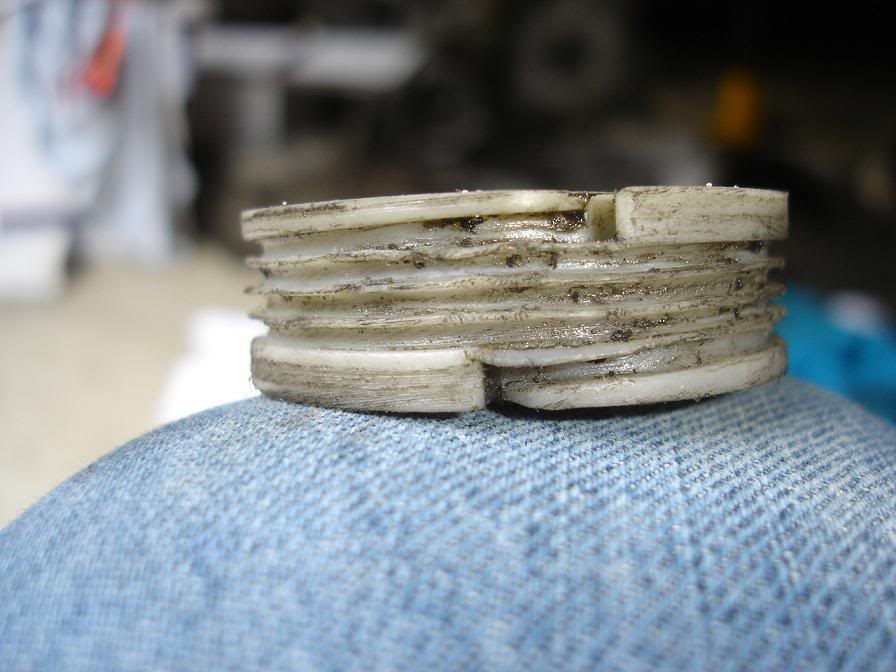

how about this pulley, this is after straightening most of the grooves
Name:  DSC04215.jpg
Views: 0
Size:  69.0 KB

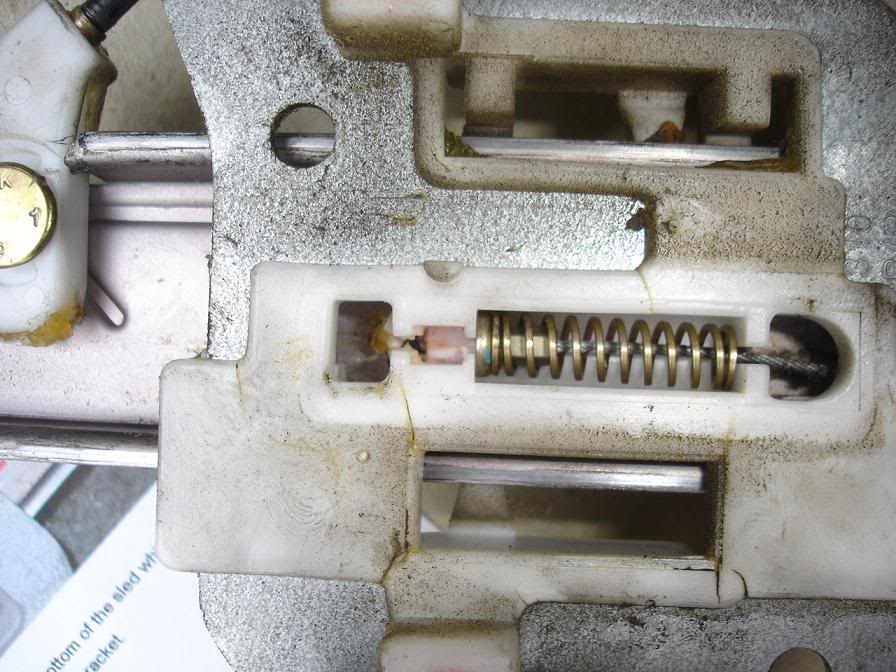

the other end looks ok?
Name:  DSC04217.jpg
Views: 0
Size:  112.6 KB
harofreak00 is offline   Reply With Quote
Old 09-10-2006, 03:00 PM   #2
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

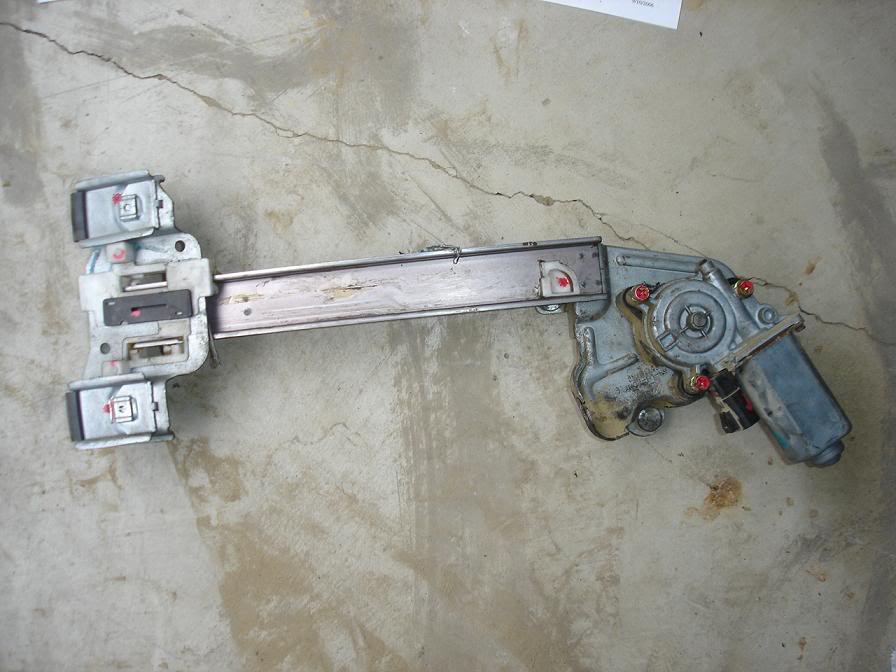

this is the other window, i am screwed.. adam (previous owner)had messed with this already, and now its missing parts...

Name:  DSC04218.jpg
Views: 0
Size:  71.5 KB

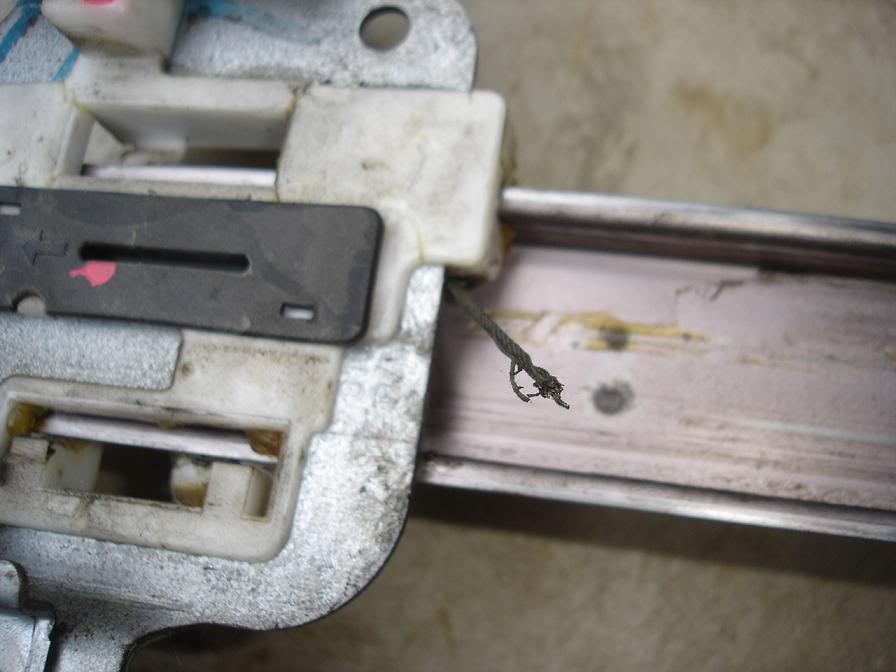

cut cables
Name:  DSC04219.jpg
Views: 0
Size:  53.5 KB

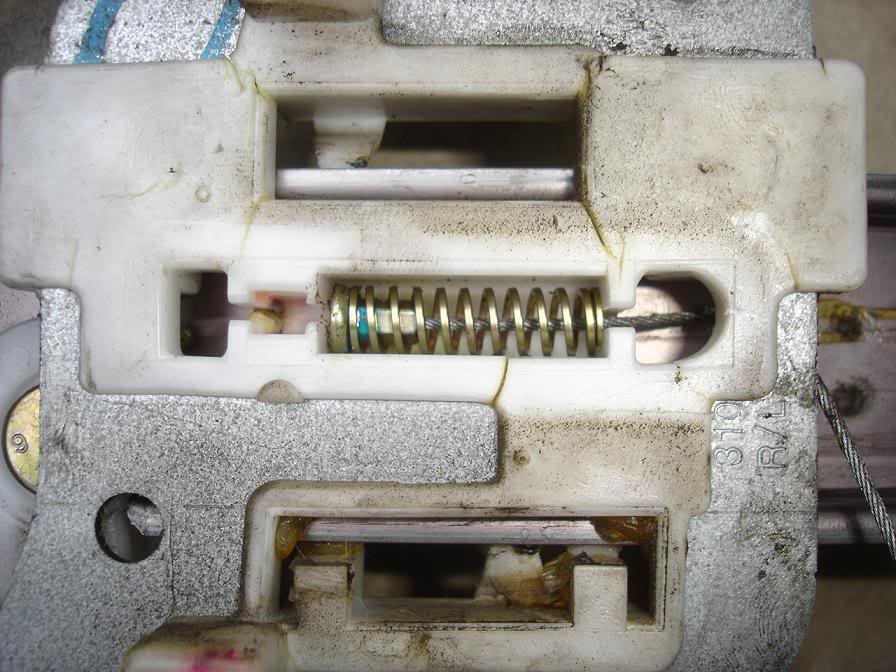

however this end still looks ok
Name:  DSC04221.jpg
Views: 0
Size:  108.0 KB

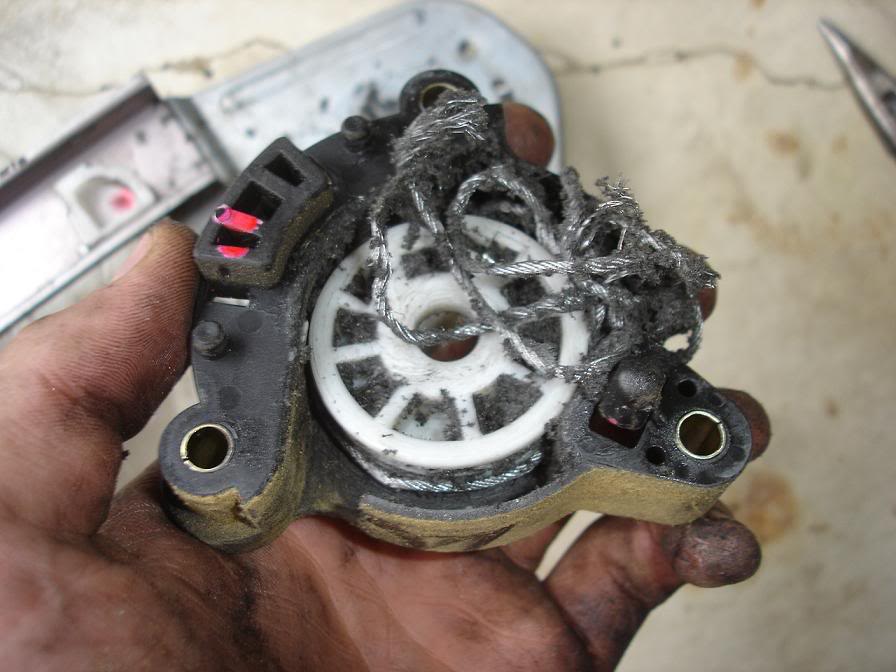

not this end
Name:  DSC04223.jpg
Views: 0
Size:  71.0 KB








who all had a junk regulator that i could steal parts off of?











.
harofreak00 is offline   Reply With Quote
Old 09-10-2006, 10:17 PM   #3
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

Haro, the first couple of regulators that I worked on had cables and pulleys that looked much worse than those, and they still worked ok. It will take a bit more muscle to get it all back together because you'll be fighting those kinks in the cable, along with the spring tension. It should work fine, however. The plastic around the spring on the bottom of the sled looks good. I can't tell from the picture how much of the plastic is still there when the cable pulled through the top. If most of it is still there, even if cracked, you're good to go. If you have a hole there, you may want to add a split washer between the cable anchor and the new bracket.

If no one has an old one laying around to help out with your missing parts, you may have to hit a junkyard for one. They may question your sanity on taking a broken one...but maybe then they'll give you a good deal.
Archon is offline   Reply With Quote
Old 09-10-2006, 10:21 PM   #4
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

what model'*/year'* have the same regulators?
harofreak00 is offline   Reply With Quote
Old 09-10-2006, 10:46 PM   #5
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

I believed all of the 2000+ Bonnevilles, regardless of trim level used the same one. There are likely other makes that use the same one. I'd have to do some investigation to find out which ones.
Archon is offline   Reply With Quote
Old 09-11-2006, 09:13 AM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Hit up GMPD or equivlent and find the part number. Then search the part number and it will show you all applications.

(told ya it wasn't so bad... but you were too busy making fun of the Idaho thread)
BillBoost37 is offline   Reply With Quote
