Default Cabin air filter...

Hey guys, I went to replace my cabin airfilter and noticed there wasn't one in there.
I went to my local auto parts and bought a filter for it but something doesn't seem right about the fit. The filter fits in there, but isn't there suppose to be something that it'* suppose to be fasten to? Or does it just lay in there? It'* got a flap that bends down. Whats the deal here?
MikeD is offline   Reply With Quote
Old 09-11-2006, 08:16 PM   #2
Senior Member
Posts like a 4 Banger

Join Date: Oct 2005
Location: Alexnandria MN
Posts: 108
Thanks: 0
Thanked 0 Times in 0 Posts
kobrak is on a distinguished road
Default cabin filter

I just replaced mine and I also was a bit confused. Let me take a look tonight and I'll see if I can splain it. Or, is there an easy way to post a pic? Also, didn't the book show a pic of it installed?
kobrak is offline   Reply With Quote
Old 09-11-2006, 08:51 PM   #3
IO
Senior Member
Posts like a Turbo

Join Date: Jan 2004
Location: Lake Forest, CA
Posts: 321
Thanks: 0
Thanked 0 Times in 0 Posts
IO is on a distinguished road
Default

It does not clip on. It just slides into the compartment on the passenger side of the engine compartment by the windshield. Once you slide it in the short part of the filter bend goes down. It is a bit of a funky design but it works.
IO is offline   Reply With Quote
Old 09-11-2006, 09:35 PM   #4
Senior Member
Posts like a Northstar

Join Date: Sep 2005
Location: Dayton, OH
Posts: 600
Thanks: 0
Thanked 0 Times in 0 Posts
imidazol is on a distinguished road
Default Re: Cabin air filter...

Quote:
Originally Posted by MikeD
Hey guys, I went to replace my cabin airfilter and noticed there wasn't one in there.
I went to my local auto parts and bought a filter for it but something doesn't seem right about the fit. The filter fits in there, but isn't there suppose to be something that it'* suppose to be fasten to? Or does it just lay in there? It'* got a flap that bends down. Whats the deal here?
There'* a plastic skeleton that needs to be purchased if your car came without one. My 03 LeSabre did not have one. Someone said that Fram has the skeleton and filter for purchase. I bought from the dealer originally and then just replace the filter part with PUrolator.

Ask at the parts houses if they ahve the versions with the plastic skeleton that snaps into the car with the filters...
imidazol is offline   Reply With Quote
Old 09-11-2006, 09:38 PM   #5
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default

There should be a plastic support frame that the filter fits into. The filter should be located in the frame to be secured in place. The Fram Cabin Air Filters come with the frame. I think the GM replacement filter elements come w/o a frame based on the fact that you should already have the support frame.
markwb is offline   Reply With Quote
Old 09-11-2006, 09:50 PM   #6
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by markwb
There should be a plastic support frame that the filter fits into. The filter should be located in the frame to be secured in place. The Fram Cabin Air Filters come with the frame. I think the GM replacement filter elements come w/o a frame based on the fact that you should already have the support frame.
yup someone put a GM Filter in mine with out the Frame...its just sitting there as of right now cause im not driving the car
1993 SLE is offline   Reply With Quote
Old 09-11-2006, 09:55 PM   #7
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default

This is the Fram Filter with support frame.
http://www.partsamerica.com/ProductD...ype=10&ptset=A
markwb is offline   Reply With Quote
Old 09-11-2006, 10:16 PM   #8
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE
its just sitting there as of right now cause im not driving the car
Pat, when you gonna drive the car? Get yourself a Fram with the proper support frame.
markwb is offline   Reply With Quote
Old 09-11-2006, 10:23 PM   #9
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: May 2005
Location: Union County N.J
Posts: 112
Thanks: 0
Thanked 0 Times in 0 Posts
MikeD is on a distinguished road
Default

Okay, I don't have the plastic support frame. How important is that? Also, is it possible to order just the frame being that I already have the filter?

Thanks guys
MikeD is offline   Reply With Quote
Old 09-12-2006, 12:32 AM   #10
Junior Member

Join Date: Aug 2005
Location: North of Buffalo, NY *** NEBF '05, '06, '07 *** ***ONBF & NYBF 06; 07*** ***WCBF 06***
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
singscountry1967 is on a distinguished road
Default

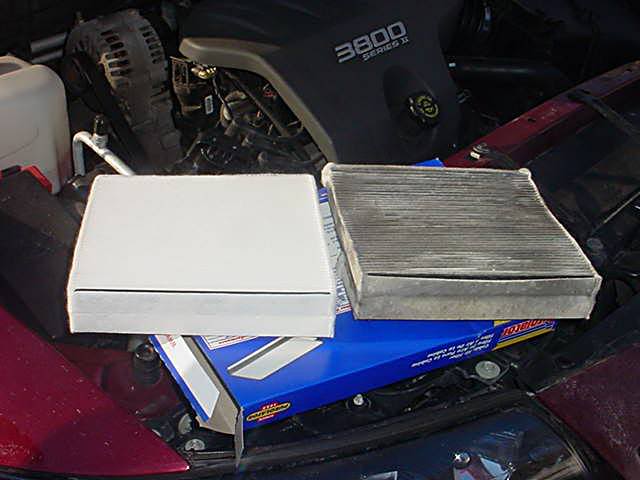

I think we determined that the 00'* came with the filter - no plastic frame though. Here'* a pic of mine when I changed it out. It just slides into the compartment - but I do remember my son saying it was a bugger getting it in... But on mine, I don't remember there being room for a plastic frame...not sure if your 03 is the same or different.

Name:  MVC-003S.jpg
Views: 1
Size:  34.3 KB
