Default Brothers newest problem

Well this past weekend we developed a misfire. Got home and parked it. Called up a couple of helpful guys and got some common troubleshooting ideas. Well started the car up and watched the scantool. Cylinder 6 misfire. Pulled the plugs. All were very black and looked fouled. Cylinder 6 plugged appears to have been smashed (in my opinion), he and others said it appears to be more melted then anything. Put new plugs in and the car runs fine. I have some pics loading right now and will have them up tonight. I would like some opinons. Car doesnt run like there is a problem but i want to be safe. (personally i dont think the motor had ran perfect sense day 1, i have said it has that noise in it). (We just played it off along with everyone else being just normal noises in the motor).



I dunno, just scares me. :(
TJ'sblackbonne is offline   Reply With Quote
Old 11-18-2007, 08:03 PM   #2
Senior Member
Certified GM nut
Thread Starter

Join Date: Dec 2002
Location: plattsburgh NY
Posts: 2,037
Thanks: 0
Thanked 0 Times in 0 Posts
TJ'sblackbonne is on a distinguished road
Default

Ps-- It is on a 2000 Se with a L67 swap


(sorry, was just thinking that most realized what my brothers car was, then thought about it and realized it wasnt the smartest move. Also thought i put it in the 2000+ section, my mistake)
TJ'sblackbonne is offline   Reply With Quote
Old 11-18-2007, 08:08 PM   #3
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

In the future, please specify what car and don't post mechanical problems in General Chat.
willwren is offline   Reply With Quote
Old 11-18-2007, 08:23 PM   #4
Senior Member
Certified GM nut
Thread Starter

Join Date: Dec 2002
Location: plattsburgh NY
Posts: 2,037
Thanks: 0
Thanked 0 Times in 0 Posts
TJ'sblackbonne is on a distinguished road
Default

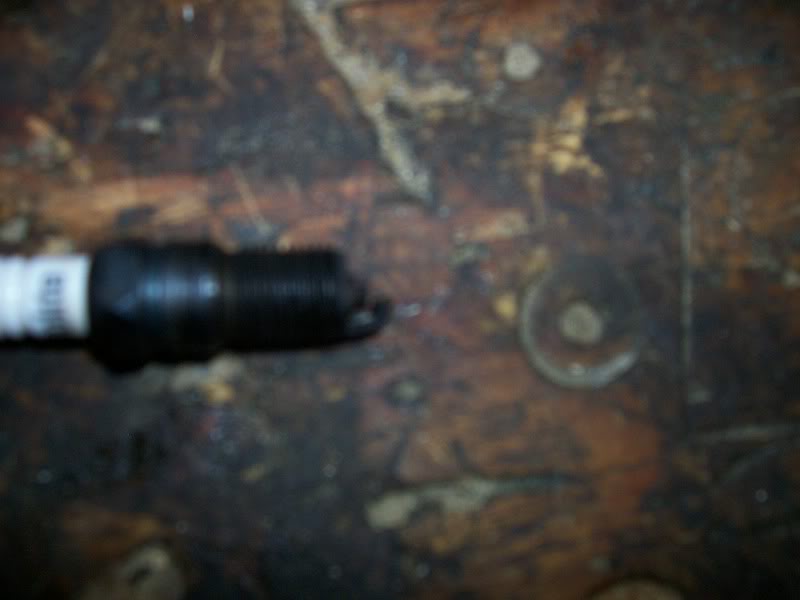

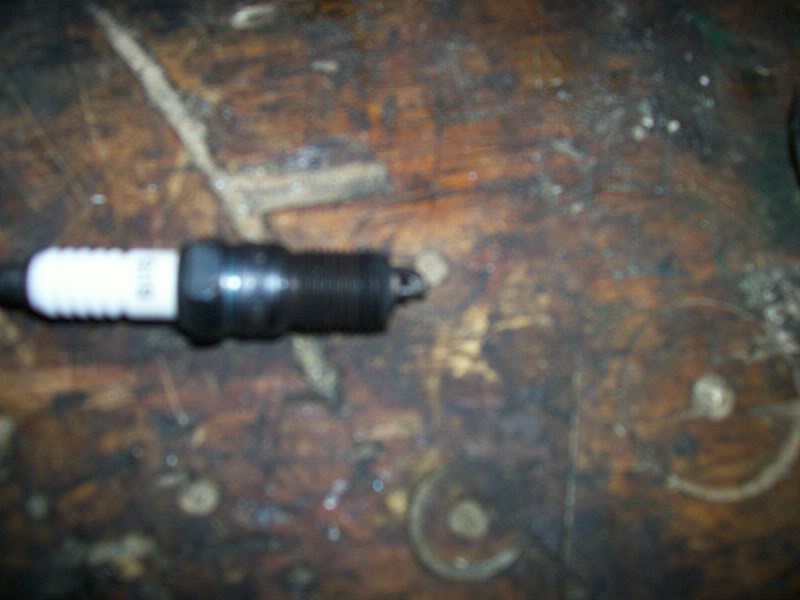

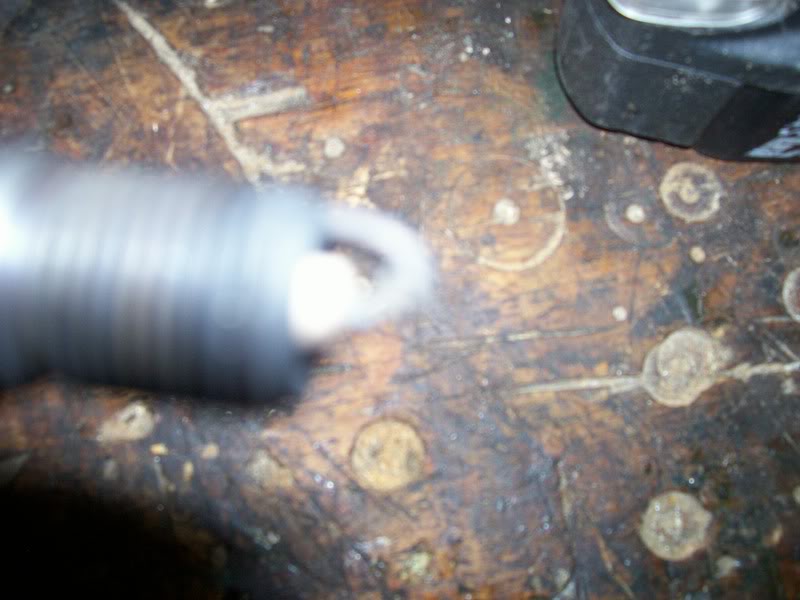

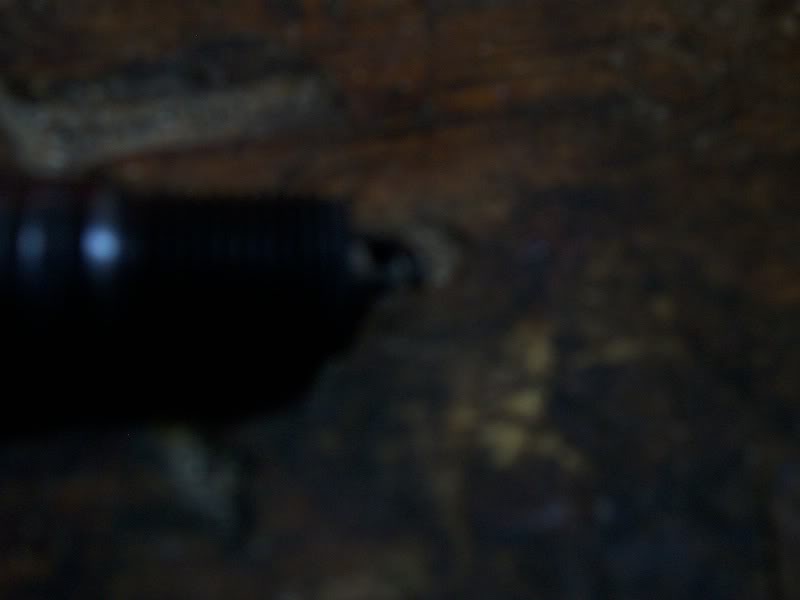

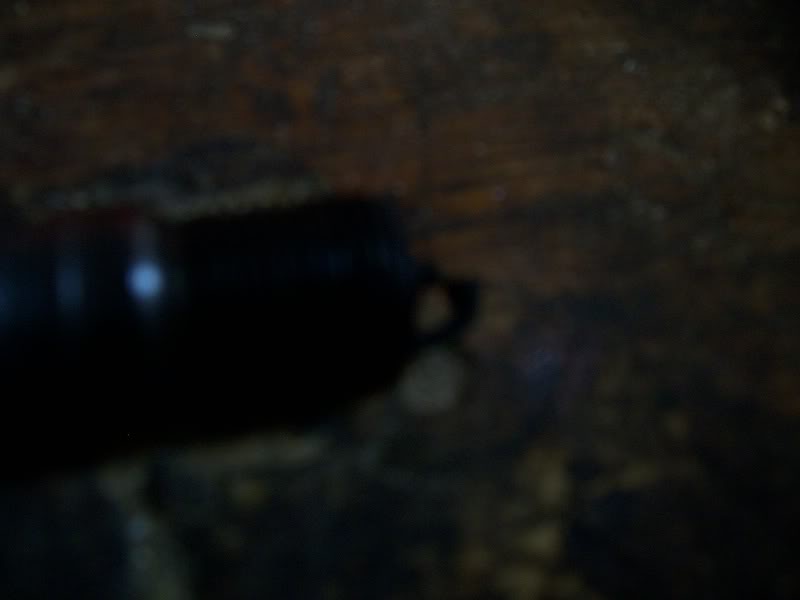

Pics up (sorry my camera'* micro sucks bad, so pics are useless)

Name:  100_3717.jpg
Views: 1
Size:  22.4 KB

Name:  100_3718.jpg
Views: 1
Size:  22.4 KB

Name:  100_3719.jpg
Views: 1
Size:  41.9 KB

Name:  100_3720.jpg
Views: 1
Size:  57.3 KB

Name:  100_3721.jpg
Views: 1
Size:  34.9 KB

Name:  100_3722.jpg
Views: 1
Size:  51.2 KB



I may just send the plug to Bill and have him take some pics. My cam is just too cheap
TJ'sblackbonne is offline   Reply With Quote
Old 11-18-2007, 08:25 PM   #5
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

That last pic tells the story. Major KR.

I've been there too. Time to look at the pulley size, fueling, and general maintenance (vac leaks, etc).
willwren is offline   Reply With Quote
Old 11-18-2007, 08:31 PM   #6
Senior Member
True Car Nut

Join Date: Feb 2002
Posts: 3,993
Thanks: 0
Thanked 0 Times in 0 Posts
JimmyFloyd is on a distinguished road
Default

not sure which story they are telling to you, but the pictures are really out of focus.

Wren, could you please explain what leads you to your conclusion in the last picture?
JimmyFloyd is offline   Reply With Quote
Old 11-18-2007, 08:35 PM   #7
Senior Member
Certified GM nut
Thread Starter

Join Date: Dec 2002
Location: plattsburgh NY
Posts: 2,037
Thanks: 0
Thanked 0 Times in 0 Posts
TJ'sblackbonne is on a distinguished road
Default

Well, stock pulley, so that isnt the issue.

As for fueling, we have checked pressure and it was where it needs to be.

As for scan data, We scanned on a hot day (believe it was high 80'* and humid) and the most KR we saw was like 3 degrees after the pulls and stuff and that was just a blip here and there.

As for maintance, we did new plugs, has newer wires on it (not sure of how many miles but they are ac delcos and the motor only had 80K when we got it so maybe they have like 30k or something). Cleaned MAF, checked for vac leaks ect. So i am not really sure there.
TJ'sblackbonne is offline   Reply With Quote
Old 11-18-2007, 08:37 PM   #8
Senior Member
Certified GM nut
Thread Starter

Join Date: Dec 2002
Location: plattsburgh NY
Posts: 2,037
Thanks: 0
Thanked 0 Times in 0 Posts
TJ'sblackbonne is on a distinguished road
Default

Again i am sorry that the pics suck.

The end is angled towards the electorde and actually just about touching it. Looks like it is smashed.



So all ideas and opinions are welcomed. The car is a 2000 se with a L67 swap. Only mod is Front PEM.


Maybe bad gas? (always runs 93, but we put the gas in in vermont, so maybe they have different blends)
TJ'sblackbonne is offline   Reply With Quote
Old 11-18-2007, 08:53 PM   #9
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

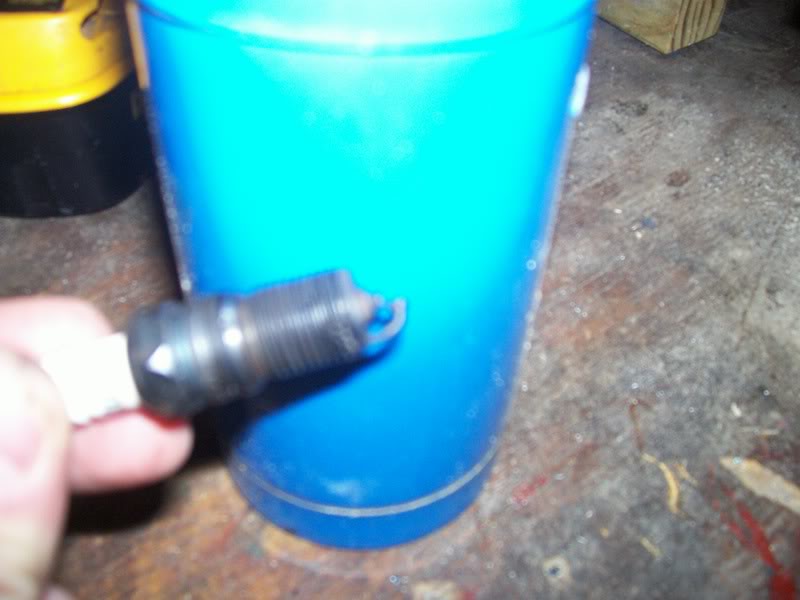

This fuzzy impression of a good digital photo:

Name:  100_3722.jpg
Views: 1
Size:  51.2 KB

The ground electrode should extend past the center (positive) electrode. It did when new unless it was side-gapped.

That is a melted ground electrode, clearly visible in spite of the fuzzy focus.

anyone remember mine?

Name:  autopsy1.jpg
Views: 1
Size:  37.3 KB
willwren is offline   Reply With Quote
Old 11-18-2007, 09:01 PM   #10
Senior Member
Certified GM nut
Thread Starter

Join Date: Dec 2002
Location: plattsburgh NY
Posts: 2,037
Thanks: 0
Thanked 0 Times in 0 Posts
TJ'sblackbonne is on a distinguished road
Default

By side gapping, you mean my cheap 99 cent gapper dont you?


If so, i know it isnt the perfered choice of gapping, and you guys suggested a "real" gapper. Does anyone have a link to where i can invest in a "real" gapper.




PS (that camera takes very nice pictures, and realitivly nice videos. But its close up pics suck almost as bad as that L36 in the white bonneville). But for what i paid for it, i am not going to complain. It is a Kodak EasyShare CD33. And if i am doing something wrong with it, please tell me
