Default broken supercharger pulley (tensioner?)

My parents 2000 SSEI has a broken (missing!) pulley, what appears to be the supercharger tensioner. Its kind of in the middle of the motor, near the bottom and uses a torx bit.

Does anyone know the part number, or name of this? The local GM dealer isn't too much help.
greg fell is offline   Reply With Quote
Old 02-05-2007, 03:11 PM   #2
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

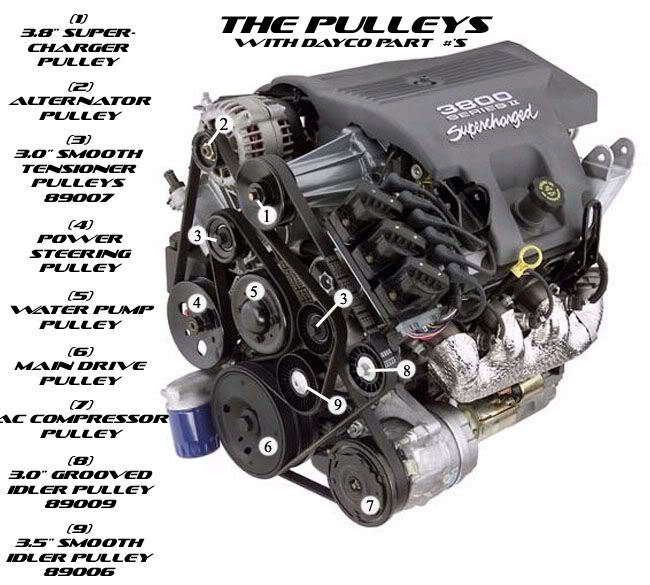

Which one?

Name:  S2L67.jpg
Views: 20
Size:  74.1 KB
J Wikoff is offline   Reply With Quote
Old 02-05-2007, 03:24 PM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Feb 2005
Posts: 31
Thanks: 0
Thanked 0 Times in 0 Posts
greg fell is on a distinguished road
Default

perfect! looks like #9. is this common at all? never seen that before.
greg fell is offline   Reply With Quote
Old 02-05-2007, 03:33 PM   #4
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

It'* been known to happen from time to time. Sometimes they start to make noise before they go, sometimes it does it silently. It may be time to start replacing them, to prevent future problems. You may want to do all of them in this belt path now, while you have the belt off. That would be 3, 8, and 9.
Archon is offline   Reply With Quote
Old 02-16-2007, 03:27 PM   #5
Junior Member
Posts like a Ricer Type-R

Join Date: Nov 2006
Posts: 17
Thanks: 0
Thanked 0 Times in 0 Posts
Jer8778 is on a distinguished road
Default

Hey there, mine did the exact same thing a few weeks ago. The bearing was still in place but the tensioner was nowhere to be found. I ended up replacing all the pulleys at the same time along with a new belt. Cost me about $70 and 30 minutes of work. Just make sure you have a T-50 Torx socket handy!
