Default Air In Trunk?

I have an SSEI and inside the trunk is what looks like a button that says "air" on it. What is this for? I'm guessing I may have air suspension, but I'm not sure.
samgash702 is offline   Reply With Quote
Old 07-04-2008, 07:28 PM   #2
Member
Posts like a V-Tak

Bonneville_GXP's Avatar

Join Date: Jul 2008
Location: Ohio
Posts: 99
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville_GXP is on a distinguished road
Default

Its actually called an accessory inflator. There should be a hose you can hook up to it. The pervious owner may have taken it with them. If everything is there and works then when you hook it up press the bottom and air should go into your tire. The compressor maybe drop tho, what happens when you push the button?
Bonneville_GXP is offline   Reply With Quote
Old 07-06-2008, 04:06 PM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Jun 2008
Posts: 50
Thanks: 0
Thanked 0 Times in 0 Posts
samgash702 is on a distinguished road
Default

Well I was with my brother who does auto body work and started to track it down we found it went to struts. The button never did anything till we got the bright idea to try to start the car then push the button. And like magic, the rear of the car started to raise up. It allowed us to raise and lower suspension 2 in.
samgash702 is offline   Reply With Quote
Old 07-07-2008, 07:41 PM   #4
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

the button is not the for suspension...

look on the other side of the trunk latch, as you see the schrader valve. the car orignally came with a hose that would allow you to fill the tires or other inflatables. YES if you do hit the air then the rear end will lift up

the ELC or electronic level controll is fully automatic and self contained
1993 SLE is offline   Reply With Quote
Old 07-07-2008, 10:46 PM   #5
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

The rear raises up because on newer models, hitting the "Air" button causes the ELC switch uses the rear air shocks as air reservoirs. Air tanks on the fly, so to speak. Once the timer shuts the compressor down, the rear air shock will return to their position set by the ride height adjustment switch.
GXP Venom is offline   Reply With Quote
Old 07-07-2008, 11:12 PM   #6
Member
Posts like a V-Tak

Join Date: Jul 2008
Posts: 45
Thanks: 0
Thanked 0 Times in 0 Posts
ssei-K is on a distinguished road
Default

hmmm neat function.... didnt know that...
ssei-K is offline   Reply With Quote
Old 07-08-2008, 12:35 AM   #7
Member
Posts like a V-Tak
Thread Starter

Join Date: Jun 2008
Posts: 50
Thanks: 0
Thanked 0 Times in 0 Posts
samgash702 is on a distinguished road
Default

OK, so if I push the Air button then I can air up tires and inflatable tubes and such? Wow, that is awesome! There was a mention of there being a hose, I don't seem to have one, do you know how to get one?
samgash702 is offline   Reply With Quote
Old 07-08-2008, 10:04 AM   #8
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

you can search Ebay, the car orignally came with a "Pontiac Accessory Kit" that included alot of different things such as the inflator hose, a poncho, road flares, first aid kit, and much more
1993 SLE is offline   Reply With Quote
Old 07-17-2008, 06:20 PM   #9
Junior Member
Posts like a Ricer Type-R

Join Date: Jul 2008
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
BronzeSSEI is on a distinguished road
Default

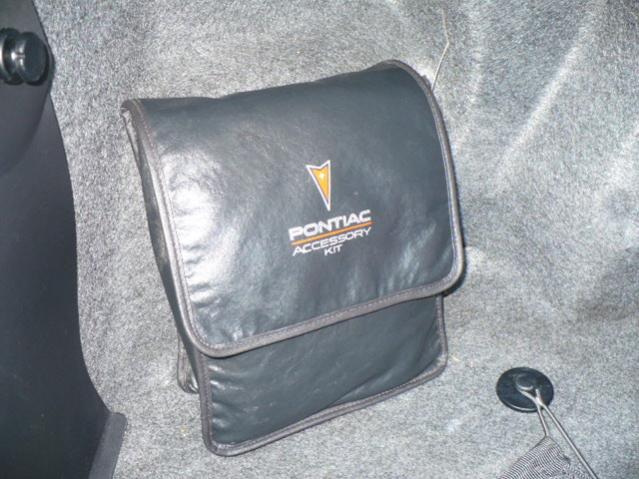

You mean this. I don't think It had ever been opened. It has a flashlight, ice scraper, poncho, air hose with nozzles, a chemstick, and a first aid kit. I'm gonna take it all out tonight to see if there is anything else.
Attached Thumbnails
Air In Trunk?-p1010220.jpg   Air In Trunk?-p1010222.jpg
BronzeSSEI is offline   Reply With Quote
Old 07-17-2008, 07:46 PM   #10
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

yes that is the said Kit that came with all Bonneville SSEi'* thru the 2002 model Year, in 2003-2005 the Kit was optional, but all of the 2003-2005'* got an air hose regardless
1993 SLE is offline   Reply With Quote
