So is this a Bonneville design only issue or an H body design issue?

Mine doesn't seem to have rust around the filler neck, or in the metal where that supposed drain hole is. I'm not exactly sure what I'm looking for, either though. Is it something you can catch early on and fix it yourself, or do you have to wait for some bad symptoms to appear first?
SilverSleeper8704 is offline   Reply With Quote
Old 03-14-2011, 10:37 PM   #12
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

nope have seen it on park ave, lesabres, GP, lumina, Impala, basically the whole line
sawgunner is offline   Reply With Quote
Old 03-14-2011, 11:18 PM   #13
Junior Member

Join Date: Sep 2009
Location: Upstate NY, Allegany County
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
63sportsman is on a distinguished road
Default

Quote:
Originally Posted by SilverSleeper8704 View Post
So is this a Bonneville design only issue or an H body design issue?

Mine doesn't seem to have rust around the filler neck, or in the metal where that supposed drain hole is. I'm not exactly sure what I'm looking for, either though. Is it something you can catch early on and fix it yourself, or do you have to wait for some bad symptoms to appear first?
Mine was not visible until the paint bubbled on the exterior of the body. By then it was too late, a hole had formed below the paint. It started on the inside in an area that cant be accessed I think. It seems to be present everywhere the inner fender contacts the exterior body panel on the gas filler side because I have a hole forward of the filler, but also signs rear of the filler. Has anybody repaired this themselves? I'm contemplating starting it soon, but am a little leary of cutting and welding near the fuel filler area...
63sportsman is offline   Reply With Quote
Old 03-14-2011, 11:54 PM   #14
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Must be a GM tradition. My 84 Camaro did this just the same and by the time I noticed it come through the body, the subframe was gone.
GXP Venom is offline   Reply With Quote
Old 03-15-2011, 04:19 PM   #15
Junior Member

Join Date: Sep 2009
Location: Upstate NY, Allegany County
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
63sportsman is on a distinguished road
Default

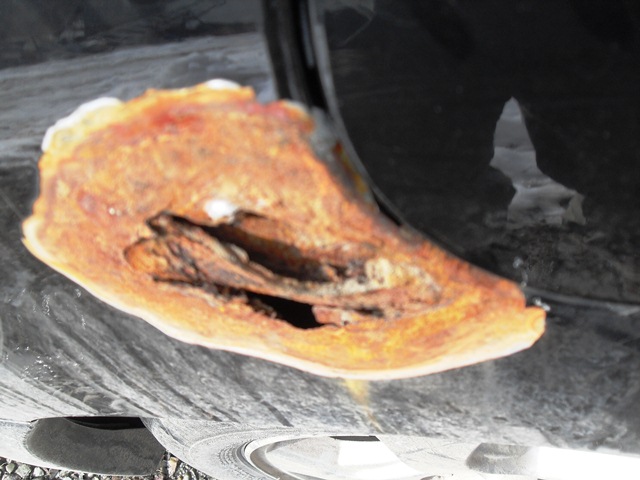

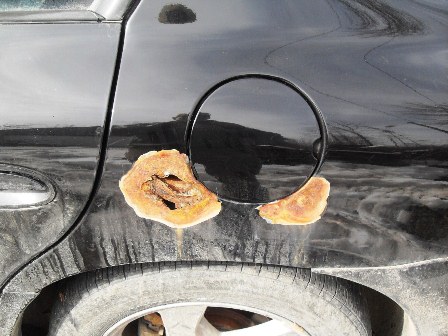

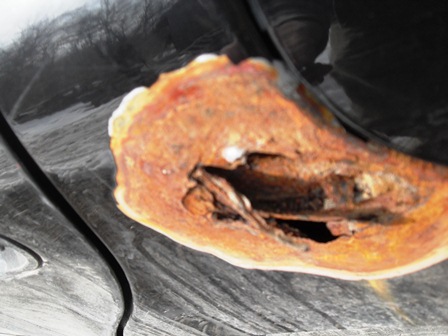

Took a pic today, pulled some more of the loose rust off. There is indeed foam tape between were the inner fender meets the body panel. Will probably attempt to tackle this on thursday. Cut out the bad, fab a panel and weld it back in and primed. Anybody have any recommendations, tips or suggestions before I begin?
Attached Thumbnails
2002 Bonneville: Rust under gas filler door-sdc17013.jpg   2002 Bonneville: Rust under gas filler door-sdc17014.jpg   2002 Bonneville: Rust under gas filler door-sdc17015.jpg
63sportsman is offline   Reply With Quote
Old 03-15-2011, 04:30 PM   #16
Member
Posts like a V-Tak

sseilmnop's Avatar

Join Date: Jan 2010
Location: Mercer, PA
Posts: 52
Thanks: 0
Thanked 0 Times in 0 Posts
sseilmnop is on a distinguished road
Default

POR13 is the best rust/bare metal primer. It is expensive but worth it. Brush it on and paint IIRC within 4 hours.
sseilmnop is offline   Reply With Quote
Old 03-15-2011, 04:48 PM   #17
Junior Member

Join Date: Sep 2009
Location: Upstate NY, Allegany County
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
63sportsman is on a distinguished road
Default

Yeah, I have been looking at inhibitors to apply in the area because im sure there is no way that I will get all of the affected areas cut out. I also plan on removing as much of the foam that I can and try to replace it with seam sealer. Going to be quite a project, I'm an amature at body repair....looks as if it will be a learning experience.
63sportsman is offline   Reply With Quote
Old 03-15-2011, 05:24 PM   #18
Member
Posts like a V-Tak

sseilmnop's Avatar

Join Date: Jan 2010
Location: Mercer, PA
Posts: 52
Thanks: 0
Thanked 0 Times in 0 Posts
sseilmnop is on a distinguished road
Default

Make sure you us POR or it will rust again, I've tried several types and this is the only one that works!!!!!
sseilmnop is offline   Reply With Quote
Old 03-15-2011, 05:34 PM   #19
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

hell if you have to pour some into the holes to help cover the existing rust..at least i would
