Default 2000 Bonnie Interior electrical issue

I have my fluke meter in hand and need some direction where to start.

hopped in the car yesterday after work,
I noticed the climate control had this in the display " - - - " no buttons on the climate control unit are responsive including the lower row with rear defrost

center column traction control button LED illuminated however no response when depressed

no fog lamp button response

no dimmer dial response including dome lights however they do light with open door

no headlight control response however they do come on at dusk

the lock toggles on both front doors UNLOCK the door but are unresponsive when LOCK is depressed. the key fob is still functional in both lock and unlock

when parking vehicle lights off, key out of ignition when i open the door the chime dings fast similar to the "keys still in ignition" ding and the security light near speedo flashes

I have checked all the fuses I can find, all are good

?!?!?
jethrow is offline   Reply With Quote
Old 05-26-2011, 09:56 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Did you check the fuse box under the rear seat? The other is under the hood. But I will say something sounds rather odd here. Perhaps sawgunner can shed some light on this.
Danthurs is offline   Reply With Quote
Old 05-26-2011, 10:08 PM   #3
Member
Posts like a V-Tak
Thread Starter

jethrow's Avatar

Join Date: Feb 2009
Location: Green Bay, WI
Posts: 88
Thanks: 0
Thanked 0 Times in 0 Posts
jethrow is on a distinguished road
Default

yes i did locate both fuse boxes. this was day 2 of all that rain we had earlier this week, I was working in Shb falls that day never had any water issues other than in the trunk and thats been fixed for awhile
jethrow is offline   Reply With Quote
Old 05-26-2011, 10:44 PM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Did you lift up the fuse box and look at the bottom. If anything got wet it will corrode. And that'* what it sounds like your dealing with.
Danthurs is offline   Reply With Quote
Old 05-27-2011, 12:13 AM   #5
Member
Posts like a V-Tak
Thread Starter

jethrow's Avatar

Join Date: Feb 2009
Location: Green Bay, WI
Posts: 88
Thanks: 0
Thanked 0 Times in 0 Posts
jethrow is on a distinguished road
Default

never thought of checking the underside, will check that tomorrow.

if all of these components are on the same circuit which I would have to assume they are connected somehow I was thinking of pulling the easy ones and testing individually for example the traction control button could of gotten a drink of Mt Dew from the wife, however that one stumps me with the illuminated LED on the button must be gettin
12V+ & ground but not relaying the signal upstream

otherwise the other route I might take is the theft system, door lock toggles have power and UNLOCK but will not LOCK maybe its in some type of "safe mode" if its a anti-theft failure
jethrow is offline   Reply With Quote
Old 05-27-2011, 12:16 AM   #6
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

I moved your thread to its proper Mechanical section.It will provide better visibility.I also lenghtend the title for quicker response from members that are familiar with the issue! Thanks
sseidriver97 is offline   Reply With Quote
Old 05-27-2011, 09:54 AM   #7
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

looking through the schematics it seems the power comes from these fuse blocks i would probably check here to start.
jwfirebird is offline   Reply With Quote
Old 06-12-2011, 01:21 AM   #8
Member
Posts like a V-Tak
Thread Starter

jethrow's Avatar

Join Date: Feb 2009
Location: Green Bay, WI
Posts: 88
Thanks: 0
Thanked 0 Times in 0 Posts
jethrow is on a distinguished road
Default

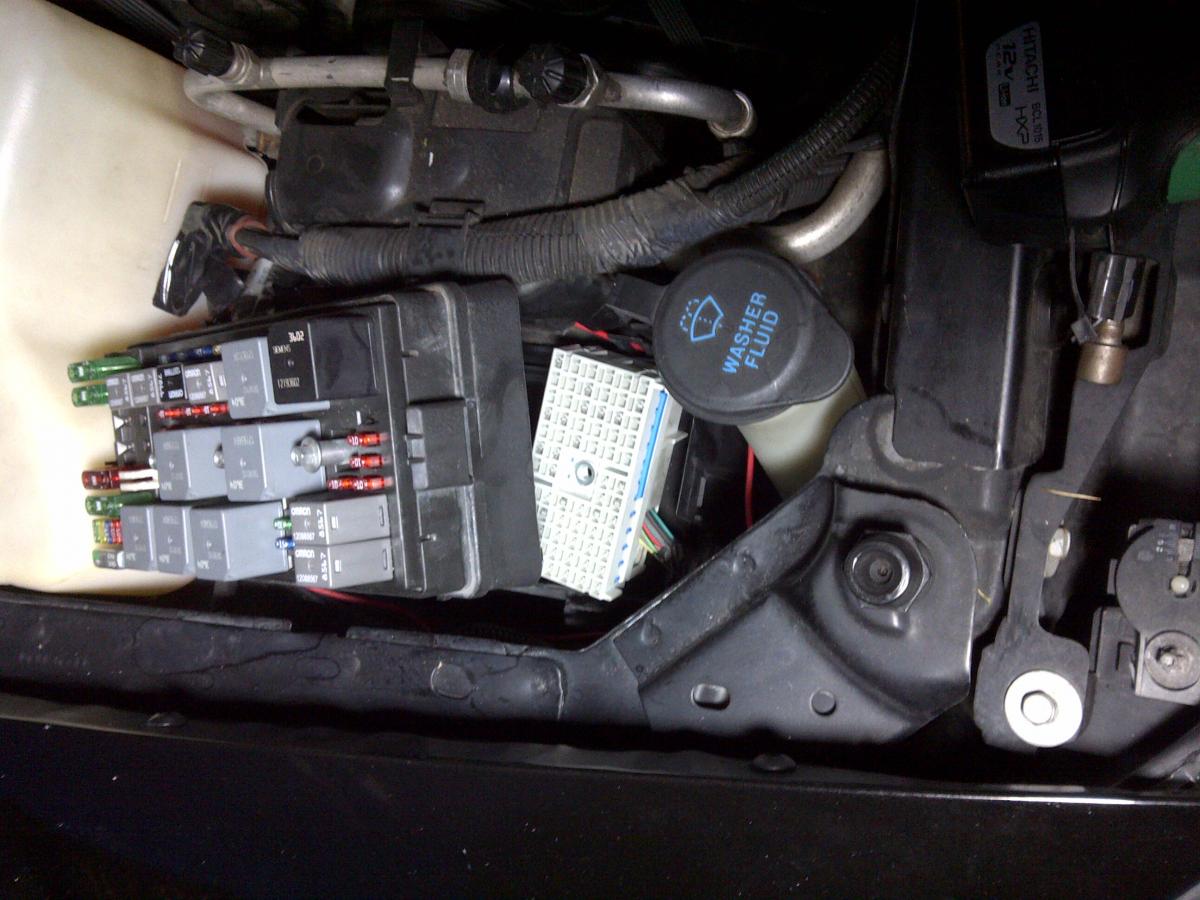

turns out there was a pool in the base that holds the fuse box in place. it does have a drain system that was full of sticks and bugs
Attached Thumbnails
2000 Bonnie Interior electrical issue-img-20110611-00059.jpg
jethrow is offline   Reply With Quote
Old 06-12-2011, 08:03 AM   #9
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

That would do it.
Danthurs is offline   Reply With Quote
Old 06-12-2011, 12:50 PM   #10
Senior Member
Posts like a Supercharger

Join Date: Sep 2005
Posts: 195
Thanks: 0
Thanked 6 Times in 5 Posts
imidazol97 is on a distinguished road
Default

Quote:
Originally Posted by jethrow View Post
turns out there was a pool in the base that holds the fuse box in place. it does have a drain system that was full of sticks and bugs
Glad to see you found the problem and thanks for posting the picture.
