Default Wheel cylinder application snafu

The problem here is simple. Went to the parts store to pick up a rear wheel cylinder for my '94 Bonneville SE and when I got home, it didn't look at all like the one on the car. The main difference is that the 'new' one has the bolt holes for attachment to the backing plate above the bleeder. The one on the car as the bolt holes below the brake line.

The rear brake setup looks a lot like the one on a friend'* '89 Buick. Is it possible that Pontiac put a 'new old stock' brake set on my car? What do I ask for at the part store?
PaulDFixr is offline   Reply With Quote
Old 03-19-2007, 08:23 AM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

If you put up a picture of the one they gave you, we should be able to tell you if it'* the wrong one quickly. It sounds like the wrong part.
BillBoost37 is offline   Reply With Quote
Old 03-19-2007, 10:47 PM   #3
Senior Member
Posts like a 4 Banger
Thread Starter

PaulDFixr's Avatar

Join Date: Sep 2005
Location: Budd Lake, NJ
Posts: 105
Thanks: 0
Thanked 0 Times in 0 Posts
PaulDFixr is on a distinguished road

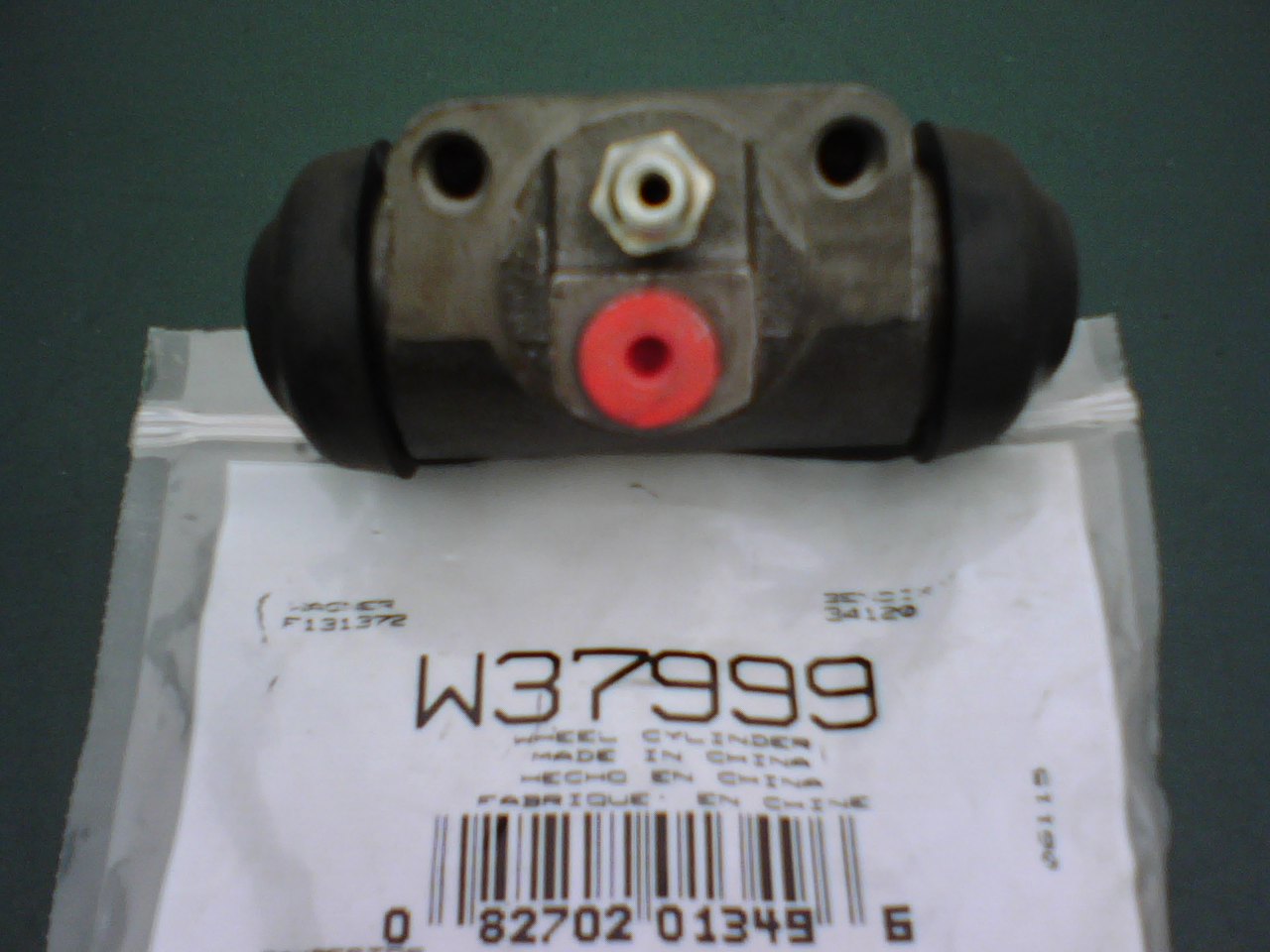

Default Wheel Cylinder picture (from my phone)


See, the bolt holes are like Mickey Mouse ears, but should be more like ore cart wheels!
PaulDFixr is offline   Reply With Quote
Old 03-19-2007, 11:12 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Actually..that looks right on .. but then..I haven't seen one lately.
BillBoost37 is offline   Reply With Quote
Old 03-19-2007, 11:18 PM   #5
Junior Member

Join Date: Mar 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
vital49 is on a distinguished road
Default

I'm with Bill....that looks right. Can you post a pic of the old one? I don't see where the new one could be wrong.
vital49 is offline   Reply With Quote
Old 03-19-2007, 11:34 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Keep in mind..they can be a pain in the buns to get in on certian cars..Although..I think ours are easy..
BillBoost37 is offline   Reply With Quote
Old 03-19-2007, 11:50 PM   #7
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

Trying to think back to the '93, but if memory serves me right (which it may not) I thought the bolt holes were closer to the bleeder screws and contained within the circle. Also, that the whole circle area was raised. I do remember trying to get those torx bolts out was a PITA because of a lack of room.
Archon is offline   Reply With Quote
Old 03-20-2007, 09:59 AM   #8
Senior Member
Posts like a 4 Banger
Thread Starter

PaulDFixr's Avatar

Join Date: Sep 2005
Location: Budd Lake, NJ
Posts: 105
Thanks: 0
Thanked 0 Times in 0 Posts
PaulDFixr is on a distinguished road

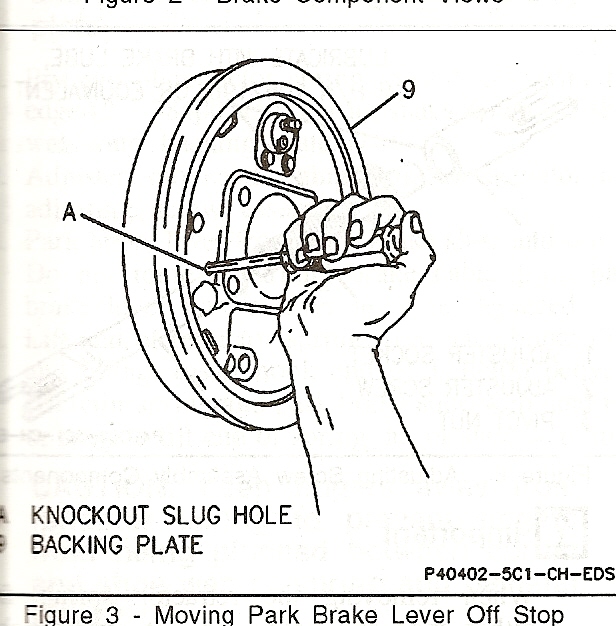

Default More pics...

This isn't my picture, but it does show the wheel cylinder I have.

My factory service manual does show the configuration of the cylinder'* brake line inlet, bleeder and attachment bolt holes from this brake backing plate view.


So, maybe I should try AutoZone instead of Advance!
PaulDFixr is offline   Reply With Quote
Old 03-20-2007, 12:15 PM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

In that case.. sorry to have misled you. It has been a while since I've seen one first hand... or maybe there was a slight change at some point over the years.

I prefer to research the part online at two or three major parts suppliers like Parts America/Autozone/Napa. They typically have a good reference picture of the actual part. Then you can go in armed with the exact part number you need and take the possible problem out of the equation.
BillBoost37 is offline   Reply With Quote
Old 03-20-2007, 12:47 PM   #10
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

gmpartsdirect shows the P/N to be:

18060172
lash is offline   Reply With Quote
