Default UIM Where does this tube go?

Hey members! I just purchased a dorman intake from Advance for $153. While looking through the box I see a 3/8" transparent tube attached to the new gasket. What does this tube attach to? I'm going to throw this uim in on sat. I sure HOPE some of my fellow members will be on line because I'm sure to have some questions like how do you get these fuel injectors out?? Thanks, Bob (Pgh. Pa.)
VillianVille is offline   Reply With Quote
Old 03-29-2007, 07:57 PM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

That'* to disperse the PCV spooge. The short bent end goes up the underside of the PCV/MAP standpipe. The long part clips into the gasket, pointing the tube towards the throttle body.
willwren is offline   Reply With Quote
Old 03-29-2007, 07:59 PM   #3
Senior Member
Posts like a Turbo

Join Date: Nov 2006
Location: Northern WV
Posts: 456
Thanks: 0
Thanked 0 Times in 0 Posts
two bonnies is on a distinguished road
Default

Send me a PM. I just did this and learned alot. I'm nearby but other members are MUCH more knowledgable than me.
two bonnies is offline   Reply With Quote
Old 03-29-2007, 09:08 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Two.. being near and willing to go help is GREAT! That can be much better than having others that may have been through it a couple more times on a website.
BillBoost37 is offline   Reply With Quote
Old 03-29-2007, 09:33 PM   #5
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

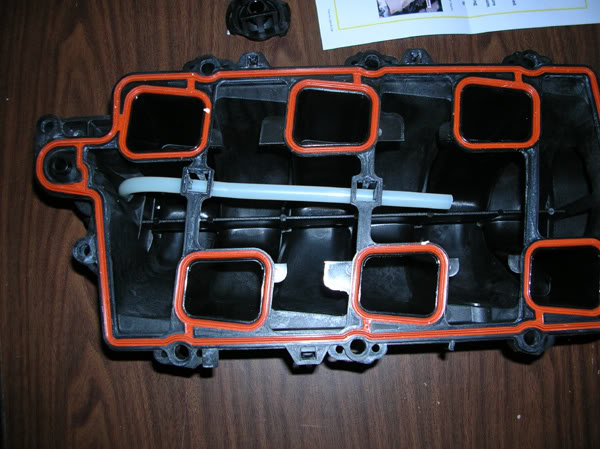

Name:  apnupperfrombelow2.jpg
Views: 0
Size:  57.6 KB
Archon is offline   Reply With Quote
Old 03-29-2007, 09:36 PM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Feb 2007
Location: Pittsburgh, Pa.
Posts: 24
Thanks: 0
Thanked 0 Times in 0 Posts
VillianVille is on a distinguished road
Default

Archon, Thanks soooo much for the pic.
VillianVille is offline   Reply With Quote
Old 03-29-2007, 09:42 PM   #7
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Feb 2007
Location: Pittsburgh, Pa.
Posts: 24
Thanks: 0
Thanked 0 Times in 0 Posts
VillianVille is on a distinguished road
Default

Archon, Thanks soooo much for the pic. Also thanks to Billboost37, Willwren,and two bonnies for your help!!! Bob.
VillianVille is offline   Reply With Quote
Old 03-29-2007, 09:45 PM   #8
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

You're welcome. I "stole" it out of this thread.

http://www.bonnevilleclub.com/forum/...4311&highlight
Archon is offline   Reply With Quote
Old 03-29-2007, 11:36 PM   #9
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by two bonnies
Send me a PM. I just did this and learned alot. I'm nearby but other members are MUCH more knowledgable than me.
Please don't ever do this. The idea of a Forum is to keep the information public and accessible so everyone can benefit from it. Not just now, but in the future when new members search for information.
willwren is offline   Reply With Quote
Old 03-30-2007, 09:48 AM   #10
Senior Member
Posts like a Turbo

Join Date: Nov 2006
Location: Northern WV
Posts: 456
Thanks: 0
Thanked 0 Times in 0 Posts
two bonnies is on a distinguished road
Default

Quote:
Please don't ever do this. The idea of a Forum is to keep the information public and accessible so everyone can benefit from it. Not just now, but in the future when new members search for information.
...in case he wants to meet. I live near him.
two bonnies is offline   Reply With Quote
