Two problems, shudder and front end noise - Page 2 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 10-29-2007, 12:03 PM   #11
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Jun 2007
Location: Chambersburg, Pennsylvania
Posts: 882
Thanks: 0
Thanked 0 Times in 0 Posts
putertopia is on a distinguished road
Default

Yeah. On the original trans, downshift under 35 would drop trans into neutral, other than that it functioned fine. Torque converter shuttered a LOT up hills, like a good 200-300 rpm difference. Second transmission, just shifted like crap, and when they ripped it back out, they found the torque converter was making tons of little shreds of metal. Third transmission, that I have now, is still shimmying but not noticeable in RPMs. It'* not a constant up down up down up down that you could measure with a stop watch like the first TC. It'* more like you can see the radar detector on the windshield vibrating from it, but it'* not completely uniform. That'* why I'm wondering if it'* originating from motor, almost feels like one certain piston isn't firing properly. But I've done everything, tested coils, replaced plugs and wires, pcv valve, fuel filter, only thing I haven't done is the o2 valves. Have an LIM gasket, dogbone, and soon the complete UIM kit coming to take care of that end.

The clunking noise is getting to be louder, and it starting to happen with just accelerating/braking. I think I'm going to rip it back apart and pry on the ball joints with a big pry bar. I'm kind of hoping that Dog bone has something to do with it.

EDIT: TC was replaced thru every transmission under warranty. Used, ofcourse.
putertopia is offline   Reply With Quote
Old 10-31-2007, 09:06 PM   #12
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Jun 2007
Location: Chambersburg, Pennsylvania
Posts: 882
Thanks: 0
Thanked 0 Times in 0 Posts
putertopia is on a distinguished road
Default

I've made a discovery! It leads me to believe that the clunk isn't caused by the transmission mount... unfortunately. Number one... as I've mentioned before, if you steer the wheel back and forth, you can hear a light clunk every time it goes from one side to another. Not sure if that'* related.

My most recent discovery kills the trans mount idea because... if I coast up hill in my driveway in neutral, and slow myself down with the brakes, but don't let them stop me to the point where the weight of the vehicle shifts backwards, then let myself roll down the hill and touch the brakes, theres a CLUNK. It'* pretty distinct. I can do it as many times as I'd like, and it still does it. It can't be the brakes... I just had them apart about a week ago to put some brake disc quiet on them and lubed them up. Only thing I found wrong is the pins needed a good lubing, but everything was solid. So what could it be? It does it occasionally when backing up in reverse, and now that I think of it, it probably does it for the same reason that I hit the brakes while in reverse, and it does it when I'm turning and applying throttle from time to time. Rough roads really don't amplify it.

I really wish I had an alignment lift. Then I could just set the vehicle down on the coasters and steer left and right and find the source of the noise.
putertopia is offline   Reply With Quote
Old 11-11-2007, 11:29 PM   #13
Junior Member
Posts like a Ricer Type-R

Join Date: Nov 2007
Location: Omaha NE
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
james5275 is on a distinguished road
Default

My 96 olds LSS also has a shudder, not sure if it'* the same as yours. At about 45 mph, when the TC locks up. It feels similar to a manual transmission car that is shifted in too high of gear. Mine will only do it at about 45-50 mph and WITH the TC locked up. I can manually downshift, romp on the throttle for an automatic downshift, or ease up the throttle and accellerate gently to bypass the symptoms. Once the car is up to about 60 mph (1700 rpm) it goes away. I havn't worried about it since my driving habits dont usually give the conditions mentioned above. However, a coworker thinks my engine is running lean, which could cause the bucking. Ironic, I also have a PO171(Bank 1 lean) code that I cant get rid of. Good luck!

As far as the clunk- keep looking, you will find it. Sounds like its related to the torque action on the suspension. If your caliper pins are good and tight, maybe you have a lower control arm bushing or an upper strut bearing starting wear. When was the last time you lubed the ball joints? My first olds made all kinds of noise in the rear suspension, untill I lubed it. Good luck,
JJ
james5275 is offline   Reply With Quote
Old 11-12-2007, 01:46 AM   #14
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

I have an odd question...

When each trans was replaced, was it rebuilt?

In 1997 There was a different lock up strategy used... in other words you can't just use any converter on that trans... Say a 95 Converter was ordered, This converter would not be designed to function with the 1997 Bonnevilles Lock up strategy...

any ideas on that ?

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 11-12-2007, 01:47 PM   #15
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Jun 2007
Location: Chambersburg, Pennsylvania
Posts: 882
Thanks: 0
Thanked 0 Times in 0 Posts
putertopia is on a distinguished road
Default

They couldn't seem to give my any information on where the trans came from/background on it. They said they got me a 'low mileage unit' for replacement. It'* clean looking... that'* about all I can say.
putertopia is offline   Reply With Quote
Old 11-12-2007, 01:51 PM   #16
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Do you have the WA2 RPO?

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 11-12-2007, 02:24 PM   #17
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Jun 2007
Location: Chambersburg, Pennsylvania
Posts: 882
Thanks: 0
Thanked 0 Times in 0 Posts
putertopia is on a distinguished road
Default

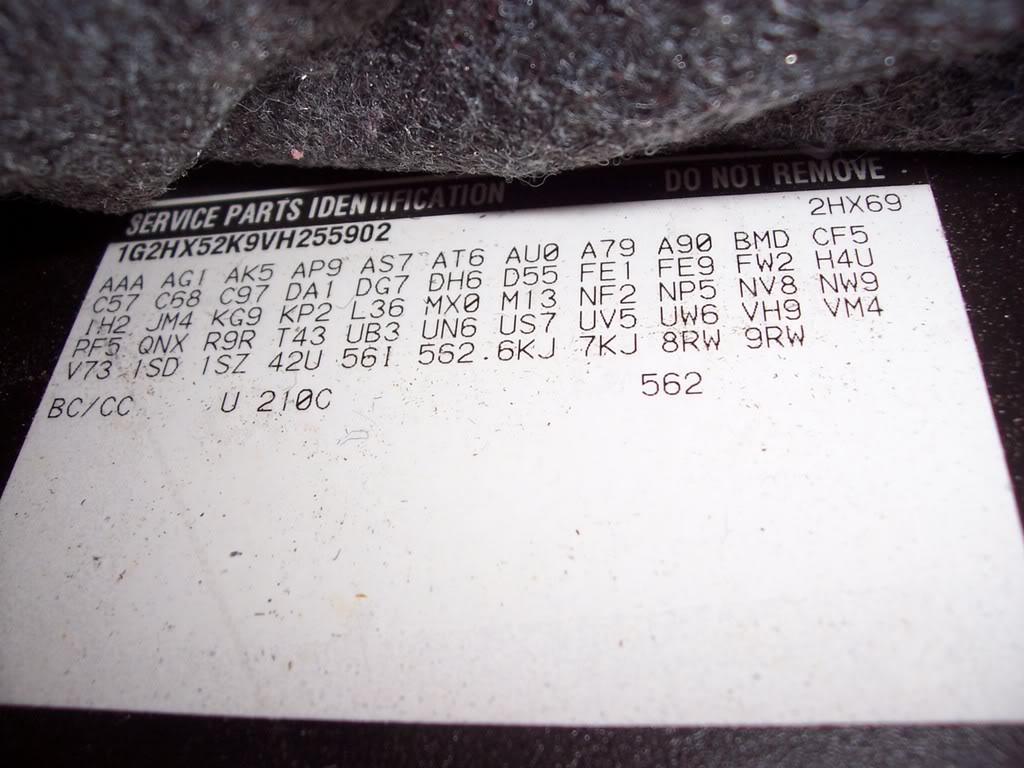

RPO tag:

Name:  100_4367.jpg
Views: 40
Size:  110.8 KB

Sorry... it took me a few mins to build the gumption to move the subs and box to get at the label lol.
putertopia is offline   Reply With Quote
Old 11-12-2007, 05:42 PM   #18
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Ok in that case you should have the Older Lock up strategy...

If its not a Miss under load it could be the Trans slipping.. But I would like to see that Dogbone good and tight

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 11-12-2007, 07:47 PM   #19
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

By Chance what are the Numbers on the Tranny Tag

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 11-12-2007, 09:39 PM   #20
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Jun 2007
Location: Chambersburg, Pennsylvania
Posts: 882
Thanks: 0
Thanked 0 Times in 0 Posts
putertopia is on a distinguished road
Default

Where'* the tag? lol. I've been looking for it (without a jack)... and haven't found nuttin but a junkyard stock number. Need a jack?
putertopia is offline   Reply With Quote
