Default transmission valve body question

So i had to replace the 4th gear clutch shaft and i for some dumb reason pulled the valve body appart and in the process 2 of the balls fell out and Im not exactly sure where they go. So does someone have a pic of where these things belong?
fixingmosbonnevill is offline   Reply With Quote
Old 06-11-2009, 05:22 PM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Please add your year and model to your signature in the future. It would help greatly had you mentioned which you have to determine the correct transmission.

Although..you are replacing the 4th clutch shaft which typically does not wear out in the 4T60, and does in the 4T65

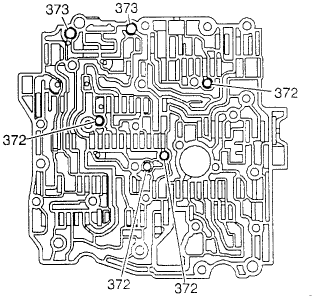

Here'* the valve body checkball location from the FSM
Name:  Valvebodycheckballlocations.gif
Views: 372
Size:  18.3 KB

I know there'* more on another side. Here'* a link to a friends rebuild thread where everything is labeled and mentioned.
BonnevillePRO.com • View topic - Rebuilding a 4T65E-HD
BillBoost37 is offline   Reply With Quote
Old 06-11-2009, 05:25 PM   #3
Senior Member
Posts like a Turbo

PaulPool's Avatar

Join Date: May 2009
Location: NJ
Posts: 257
Thanks: 0
Thanked 0 Times in 0 Posts
PaulPool is on a distinguished road
Default

You have a 99 bonneville SE? Might want to put that in your sig to make it easier for others to help you.

EDIT: Nevermind, forgot to hit enter while I was searching for a picture.
PaulPool is offline   Reply With Quote
Old 06-12-2009, 12:44 AM   #4
Junior Member
Thread Starter

Join Date: May 2009
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
fixingmosbonnevill is on a distinguished road
Default

thanks for the help there. sorry about the whole sig thing i thought i had set that up.
fixingmosbonnevill is offline   Reply With Quote
Old 06-12-2009, 09:05 AM   #5
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

It'* not a big deal when you gave us enough into to get it done.

Just had to read and know the common issue to know the right trans. Other thing is..the 60 and 65 are "probably" the same locations and probably nearly the same VB design.
BillBoost37 is offline   Reply With Quote
