Default Transmission removal 1994 ssei

Hey guys, I got the engine and tranny off of the cradle, and started removing bolts from the tranny. I got the big bolts that go along the top and one that mounts the starter. What else am I missing? I also got the bolt where the power steering bracket hooks to the tranny too, I'm just not seeing any other big bolts that are preventing me from removing the transmission.

Thanks guys!
JamesCurtis is offline   Reply With Quote
Old 10-11-2007, 11:35 PM   #2
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

Flywheel bolts.
Bonneville92V688 is offline   Reply With Quote
Old 10-11-2007, 11:43 PM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2005
Location: North Platte, Nebraska
Posts: 52
Thanks: 0
Thanked 0 Times in 0 Posts
JamesCurtis is on a distinguished road
Default

could you explain a little more? I'm not seeing how to get to those bolts. I've been reading and I also heard about a bolt that you need like 3-4' of extensions to get to it.

edit: I guess I'm just very curious where I will be able to get access to the flywheel and what is holding that starter there. I removed the big bolt that had the female star pattern.
JamesCurtis is offline   Reply With Quote
Old 10-12-2007, 01:05 AM   #4
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Quote:
Originally Posted by JamesCurtis
I've been reading and I also heard about a bolt that you need like 3-4' of extensions to get to it.
Yep. you need to get the backwards bolt thats above the transmission tailshaft. It bolts the other way into the transmission.
95naSTA is offline   Reply With Quote
Old 10-12-2007, 07:25 AM   #5
Senior Member
True Car Nut

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

There are two plastic pieces that cover the lower part of the bellhousing. Those come off. You can then access the torque converter bolts...one at a time. You will have to rotate the crankshaft after you remove one, until you remove all three.
sandrock is offline   Reply With Quote
Old 10-12-2007, 07:56 AM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Got a pictorial from my performance thread. Hope it helps..

First up..I put the engine in the engine bay and went to put in the backwards bolt. Anyone that'* ever pulled the motor knows all about finding this little gem. The painted engine and the non painted transmission with the light placed in the A arm for vision...OMG the perfect shot. Here'* a little progression for anyone ever wanting to see it'* location.

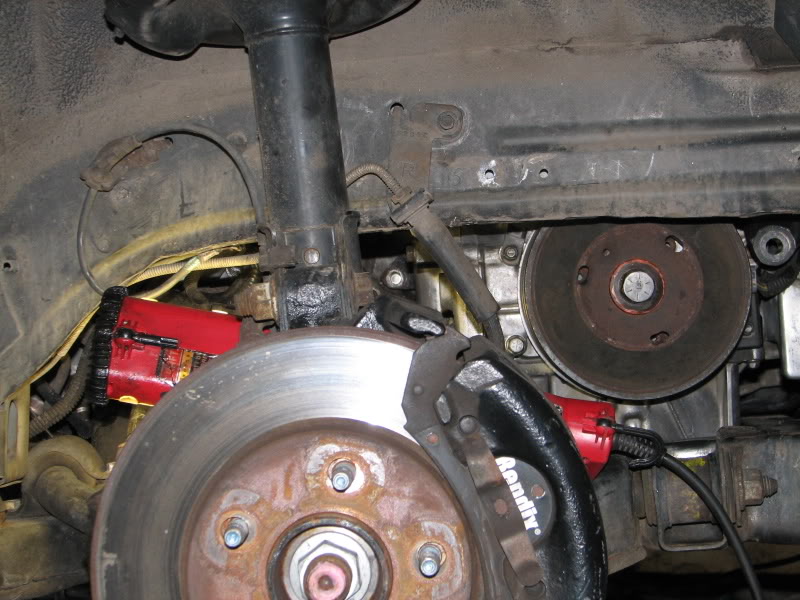

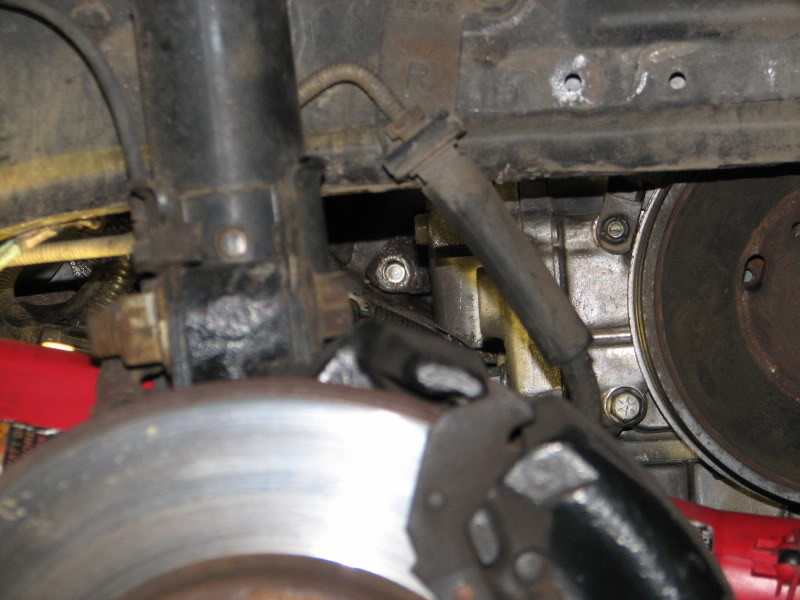

First pic..look right of the strut and between the wheel well bottom edge and the rotor.

Name:  IMG_1675.jpg
Views: 31
Size:  95.0 KB
Name:  IMG_1674.jpg
Views: 31
Size:  58.7 KB
And here it is..up close and very personal.
Name:  IMG_1673.jpg
Views: 27
Size:  39.4 KB

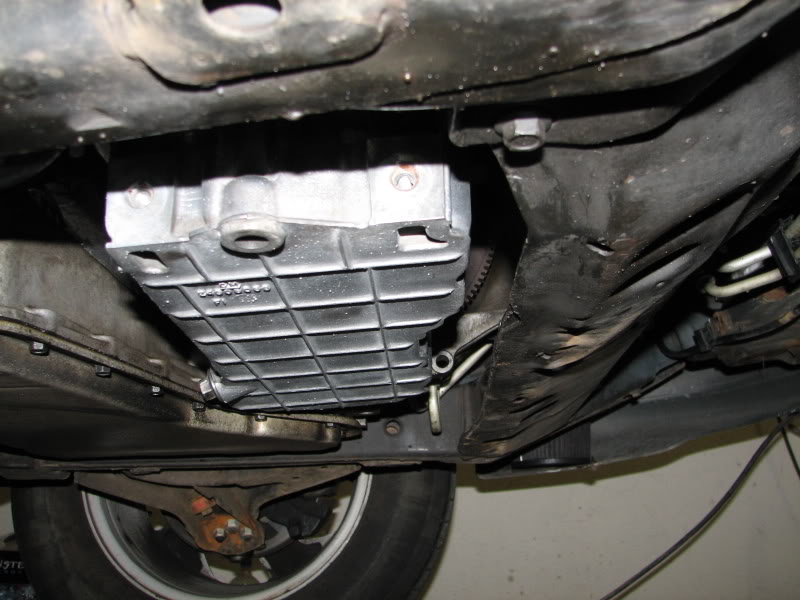

Next up..Oil pan and oil filter adapter...hence the first part to modify for my application.
The oil pan fits beautifully as expected
Name:  IMG_1679.jpg
Views: 103
Size:  73.3 KB

Keep in mind..that is an engine to transmission bolt. It is located on the driverside...but only accessible from the passenger side.
BillBoost37 is offline   Reply With Quote
Old 10-12-2007, 09:06 AM   #7
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2005
Location: North Platte, Nebraska
Posts: 52
Thanks: 0
Thanked 0 Times in 0 Posts
JamesCurtis is on a distinguished road
Default

I'm going to assume that'* a 15? and you also recommend using a 1/2" ratchet and extensions? Thanks for all the help guys, I see the light at the end of the tunnel now

I hate to make 40 minute trips to town for parts that I forgot to get :(
JamesCurtis is offline   Reply With Quote
Old 10-12-2007, 09:17 AM   #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

18mm Use a deep socket for removal and shallow for install

There is an oil pressure sender and trans to engine bracket in the way of you seeing that bolt if not already removed from the passenger wheel well area.

I use a 3/8 ratchet with a long handle.
BillBoost37 is offline   Reply With Quote
Old 10-12-2007, 10:17 AM   #9
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2005
Location: North Platte, Nebraska
Posts: 52
Thanks: 0
Thanked 0 Times in 0 Posts
JamesCurtis is on a distinguished road
Default

thanks bill, I think you've given me all the information I could ever want to know about this bolt removal
JamesCurtis is offline   Reply With Quote
Old 10-12-2007, 10:29 AM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

BTW.. there'* only one thing left, I can think of to mention. The bolt is the same as 3 of the trans bolts. The odd bolt out is for your most front engine to trans connection and goes through the trans mount.
BillBoost37 is offline   Reply With Quote
