Default trans leak? need help!!!!!!

my trans leaked enough fluid to where my car crawls in the driveway. I was looking under the car and traced it up to the top. on the top of the trans right above a wire harness. i had to remove the intake inlet to view it. this little thing sticking out had a cap on it that was loose. when i start the car this is where the fluid is comming from.

what is it?
and how do i fix it?
sseiboss is offline   Reply With Quote
Old 11-26-2006, 05:56 PM   #2
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2006
Location: Farmington hills, MI
Posts: 37
Thanks: 0
Thanked 0 Times in 0 Posts
sseiboss is on a distinguished road
Default the pics

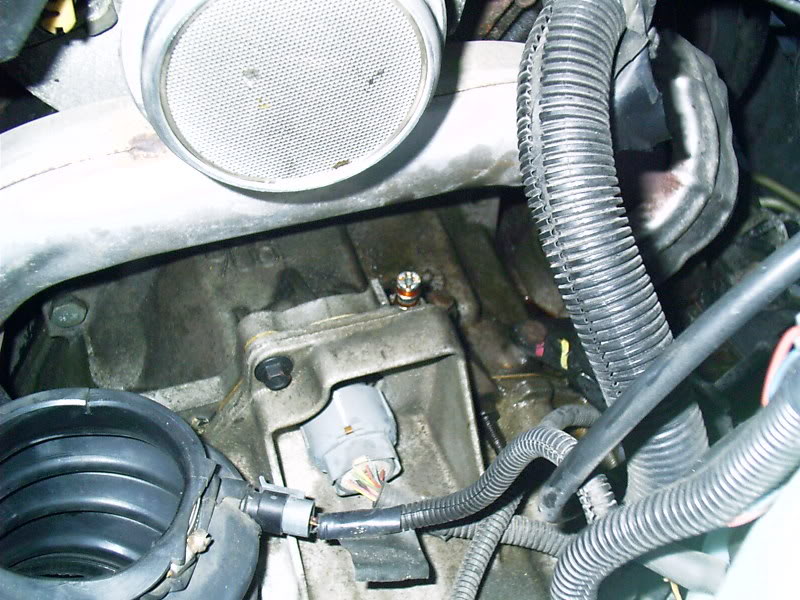

Name:  IMAG0042.jpg
Views: 0
Size:  109.4 KB

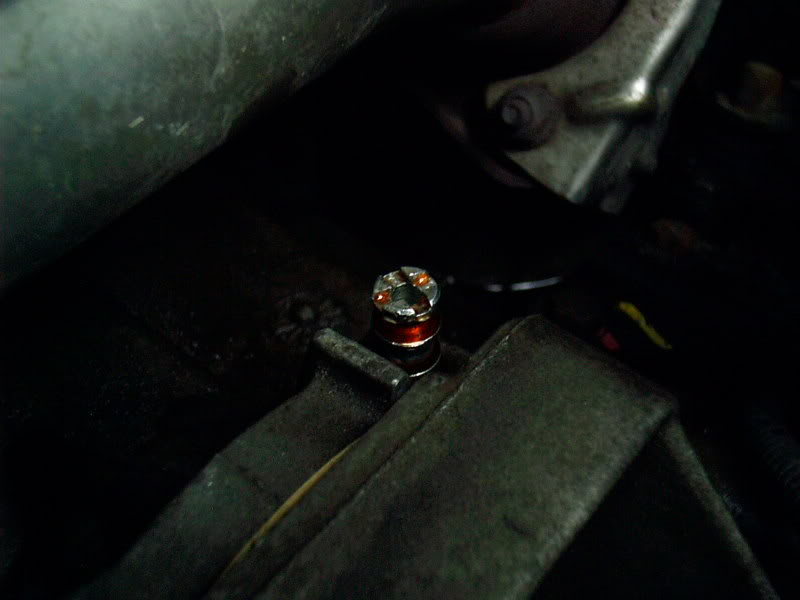

Name:  IMAG0044.jpg
Views: 0
Size:  35.3 KB

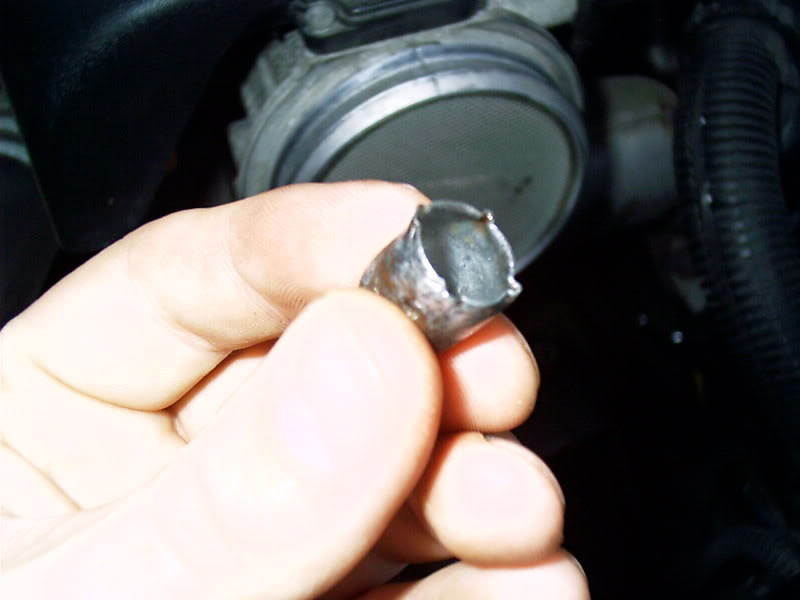

Name:  IMAG0046.jpg
Views: 0
Size:  36.6 KB

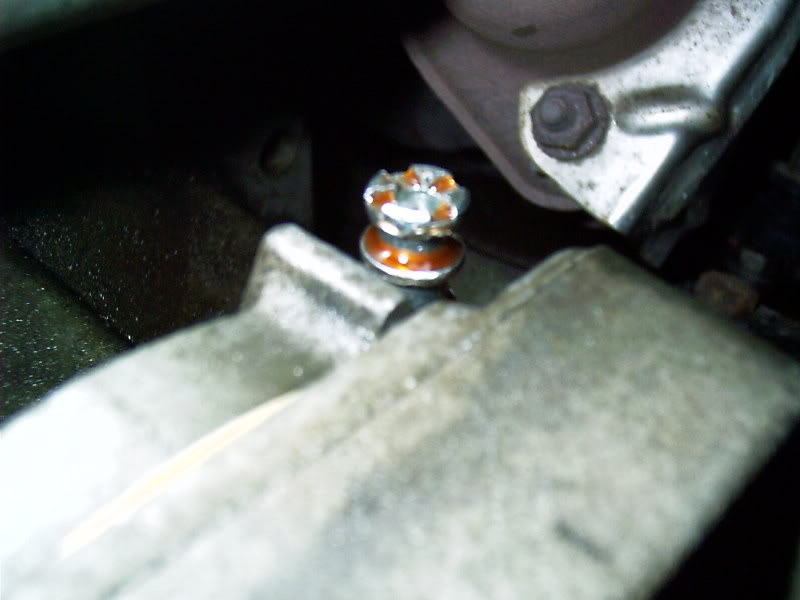

Name:  IMAG0049-1.jpg
Views: 0
Size:  39.2 KB

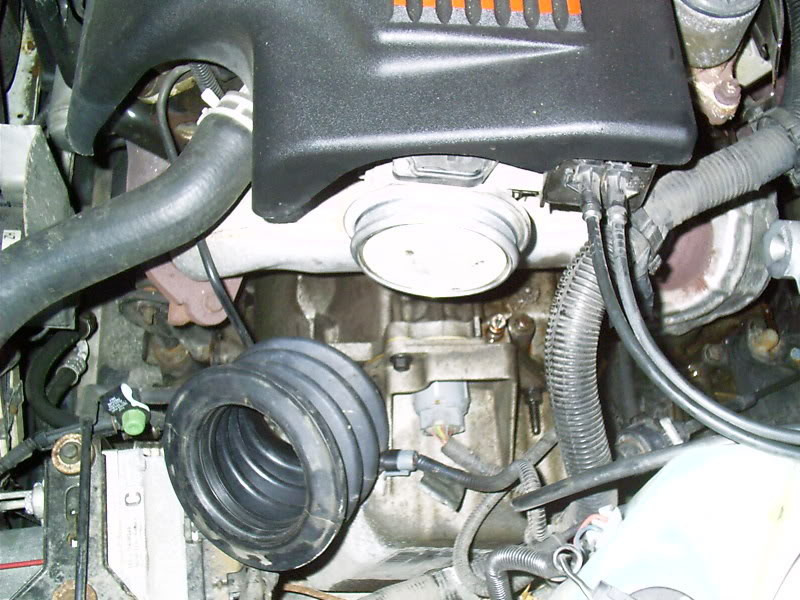

Name:  IMAG0050-1.jpg
Views: 0
Size:  105.4 KB
sseiboss is offline   Reply With Quote
Old 11-26-2006, 05:57 PM   #3
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Can we get a picture of it? Or a better description? It sounds like the pressure relief valve to me, which is VERY uncommon. But I can't say for sure with your description.
willwren is offline   Reply With Quote
Old 11-26-2006, 06:10 PM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2006
Location: Farmington hills, MI
Posts: 37
Thanks: 0
Thanked 0 Times in 0 Posts
sseiboss is on a distinguished road
Default

i posted the pics. can you see um?
sseiboss is offline   Reply With Quote
Old 11-26-2006, 06:27 PM   #5
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2006
Location: Farmington hills, MI
Posts: 37
Thanks: 0
Thanked 0 Times in 0 Posts
sseiboss is on a distinguished road
Default

are the pics showing up? it you can see them. what is that thing with the trans fluid on it and is it a quik fix. i have to be to work a 7am and im wondering if it is something i can do myelf.
sseiboss is offline   Reply With Quote
Old 11-26-2006, 06:32 PM   #6
Senior Member
Certified GM nut

Join Date: Oct 2005
Location: Western New York
Posts: 1,942
Thanks: 0
Thanked 0 Times in 0 Posts
Technical Ted is on a distinguished road
Default

Pics are showing. I'm sure someone will chime in shortly.
Technical Ted is offline   Reply With Quote
Old 11-26-2006, 06:58 PM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Your valve has failed. It'* a pressure relief/breather. The cap is missing. Go to a parts store with it in your hand, explain where it was (dealer preferred) and get it replaced. A trans shop is another option. Preferably one that deals with FWD GM transmissions.

You should be fine after that. It normally only releases under pressure, but from the looks of your fluid, you don't have tranny overheating issues. Looks good and pink.
willwren is offline   Reply With Quote
Old 11-26-2006, 07:12 PM   #8
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2006
Location: Farmington hills, MI
Posts: 37
Thanks: 0
Thanked 0 Times in 0 Posts
sseiboss is on a distinguished road
Default

is there a tool i need to put a new cap on. or should i have a dealer do it? and does that valve come out of the trans because it spins in place and seams a little loose.
sseiboss is offline   Reply With Quote
Old 11-26-2006, 07:22 PM   #9
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Both of mine spin too.

To be honest, I'm not sure how it'* removed or installed. Try sending a PM to Rogue with a link to this topic. He'* customer service for Intense. They rebuild trannies for us in their shop. Don't ask the question via PM. Let'* keep that posted in public. Just link him to it.
willwren is offline   Reply With Quote
Old 11-26-2006, 11:51 PM   #10
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

It'* crimped on. Use some pliers, squeeze it a little bit so it still spins around.
Mike is offline   Reply With Quote
