Old 06-27-2007, 11:54 PM   #21
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

IT'* DONE!!

I bought a newish pump off of Ebay. Funny thing is...it'* from a -65. A near perfect replacement that I can't use in its entirety. But I sure as hell can use the cover! (I'm not complaining...the pump cost me 24 bux shipped. The cover alone would have cost 4 times that from the dealer). Everything is assembled up, ready to be mated. Though I do have some concerns.

Biggest concern is the coffee can. MLBB sent me Ben'* old can, and looks to be in mighty fine shape. But remember that video I posted a few responses ago? My rebuilt unit has play in that area as well...though nowhere near as much. I reused all the old thrustwashers and replaced all the missing or damaged ones, so I know that isn't the issue. I am hoping the slop will go away once all the clutches get broken in, but if it ain't supposed to be there, now would be the time to tell me.

Actually, that is my only concern. I tfollowed the ATSG pretty much to the letter...I even colored in it to make the pictures more appealing As an upgrade, I also added a big 'cooler to the front, along with my HUGE eninge oil cooler (Don has seen those projects and was quite pleased with my work).

In a few more weeks Jinx will either be one helluva athlete...or scrap. Anyone wanna place wagers?
sandrock is offline   Reply With Quote
Old 06-28-2007, 10:10 AM   #22
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Turns head.... Prays to god....

Let it move the earth


I hope this one goes well buddy.... I;m not good with bets

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 06-28-2007, 01:56 PM   #23
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

I've gotten a few PMs regarding the use of -65 components in a -60. So for the benefit of everyone, here are my findings.

The -65 pump body appears to use the latest -60 design. The housings are near identical with the exception of filter bosses. The cover of the -65 pump is also slightly redesigned with extra webbing, but will physically bolt to the latest -60 body. The key difference is in the impeller design. -65s use 11-vane impellers, whereas the -60 uses 9. This explains why the -65 does not suffer from cavitation at high RPMs like the -60. BUT, for the moment anyways, you CANNOT use the -65 impeller on a -60. This is where another key difference comes into play...the oil pump shaft on the -60 is actually larger in diameter.

What I would like to see is a -65 oil pump shaft and how it compares to the -60. If the shaft can physically fit into the -60 guts, then just maybe builders can utilize the -65 oil pump and be rid of cavitation.

I don't have my camera with me (it'* on loan) so I cannot provide pics like I normally would. Don stopped by here recently and I went over my findings with him, and he was amazed at how little the designs changed, but changed just enough to where you can't crossbreed easily.
sandrock is offline   Reply With Quote
Old 06-28-2007, 02:31 PM   #24
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

I just looked at both the ATSG manuals (dunno why I didn't look at the pump shaft before ) and they do appear to be different other than the diameter of the gear going into the rotor.
The taper at the other end of the pump shaft (torward the torque converter) is represented differently in the illustration. The fatter portion of the shaft that keeps it in place is also shown as slightly different on the torque converter side. And finally the seal rings are different.
These issues may be trivial but we're not going to know untill someone tries it.

I have been wanting to try and use the 11 vane pump for the longest time. The 60e wasn't made to shift high as shown with the LQ1'*. And I know from experience that at 6.6k, that trans is not happy.
95naSTA is offline   Reply With Quote
Old 06-28-2007, 02:31 PM   #25
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

It was very interesting indeed... I didn't expect such a change.... I actually expected a lot more

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 06-28-2007, 04:14 PM   #26
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

The taper appeared to be the same between the two models. Don, however, saw the -65 impeller and the FIRST model -60, which has no taper at all. The first -60 model is the least desireable of them all, as they were based on the original -60, or 440T4.

ANOTHER difference...and thank goodness I just noticed it...is that in order to use the -65 cover on a -60 pump, you have to drill one hole in the cover for a bolt that the -60 uses but was deleted in the -65. Looking over the two, I doubt it would have made any difference by leaving it. But I take no chances. Well, not when it comes to a project that has taken many months to do.

Don shared his thoughts on the coffee can slop....anyone else got any insight?
sandrock is offline   Reply With Quote
Old 06-28-2007, 04:37 PM   #27
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I would do whatever it takes to be 100% sure about that slop. Sorry I don't have any info..

Other than that... if it'* together..how come it'* going to take "weeks" to get running?
BillBoost37 is offline   Reply With Quote
Old 06-28-2007, 05:56 PM   #28
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

Reason 1: I am going to New York City for a week for work stuff. I leave tomorrow morning, and I won't be back until the 4th of July.

Reason 2: I am repairing/upgrading front suspension. The ENTIRE suspension is being rehashed. Already installed NOS GM struts (got the goahead from a GM tech that they are "decent", so I may as well use them), and strut mounts installed. I am also prototyping an aluminum STB (running it on the gold SSE right now and have been for the past few weeks with no issues at all), and I am going to give the Energy Suspension grease caps a try on the ball joints and tie rods. In fact, most of the suspension is done now, just got to tie up a few loose ends.

Reason 3: While the car is in the garage, I might as well look at the fuel pump connections. I know for a fact they are bad, and probably part of my fueling issues.

Reason 4: Remember at SEBF 2K6 me bypassing the oil cooler completely? I gots a new cooler and I need to modifiy the factory lines (good thing I saved them). I also need to repair a power steering line.

Reason 5: New air intake of my design. This requires a total throwaway of the canister purge system. So instead, I am put an inline filter on the vapor line with a check valve and then to the intake. Simple and still functional (will still be controlled via PCM).

I think those a good reasons why it won't be running anytime soon. I am looking at turning the key around the end of July, perhaps even August. I've said it before that Jinx is a testbed of ideas. The hybrid L27 was a start. The Frankensteined trans, if successful, could open up a few more options for the 92-93 crowd for a better shifting trans. Besides, I'm in no hurry. Gas prices haven't quite come down enough yet.
sandrock is offline   Reply With Quote
Old 06-28-2007, 06:05 PM   #29
Senior Member
Certified GM nut

Join Date: Mar 2007
Location: Yuma, AZ.
Posts: 1,936
Thanks: 0
Thanked 0 Times in 0 Posts
GXP_Vince is on a distinguished road
Default

Quote:
Originally Posted by whitecrystal1
Quote:
Originally Posted by MyLittleBlackBird
I sorta suspected that may have been the issue as well. So the steel spacer at the manual 1st drum was intact then, I assume? Would you believe that thrust washer that goes in there is made of plastic? I noticed that one of those had worn down significantly on the trans I put together for Ben'*(it got replaced of course). I'm going to agree that the 4th gear thingee is shot How did the side of the 2nd gear drum(one that would have been rubbing) look? I'm just curious is all.
Did somebody say plastic He'* the piece that was taken out of my pan at 205K. Still running strong.
Same thing with mine after 90k now I have 160k on it still running good.
GXP_Vince is offline   Reply With Quote
Old 06-28-2007, 11:29 PM   #30
Senior Member
Posts like a 4 Banger

Join Date: Jun 2007
Posts: 111
Thanks: 0
Thanked 0 Times in 0 Posts
91buickman is on a distinguished road
Default

Quote:
Originally Posted by sandrock
Reason 1: I am going to New York City for a week for work stuff. I leave tomorrow morning, and I won't be back until the 4th of July.

Reason 2: I am repairing/upgrading front suspension. The ENTIRE suspension is being rehashed. Already installed NOS GM struts (got the goahead from a GM tech that they are "decent", so I may as well use them), and strut mounts installed. I am also prototyping an aluminum STB (running it on the gold SSE right now and have been for the past few weeks with no issues at all), and I am going to give the Energy Suspension grease caps a try on the ball joints and tie rods. In fact, most of the suspension is done now, just got to tie up a few loose ends.

Reason 3: While the car is in the garage, I might as well look at the fuel pump connections. I know for a fact they are bad, and probably part of my fueling issues.

Reason 4: Remember at SEBF 2K6 me bypassing the oil cooler completely? I gots a new cooler and I need to modifiy the factory lines (good thing I saved them). I also need to repair a power steering line.

Reason 5: New air intake of my design. This requires a total throwaway of the canister purge system. So instead, I am put an inline filter on the vapor line with a check valve and then to the intake. Simple and still functional (will still be controlled via PCM).

I think those a good reasons why it won't be running anytime soon. I am looking at turning the key around the end of July, perhaps even August. I've said it before that Jinx is a testbed of ideas. The hybrid L27 was a start. The Frankensteined trans, if successful, could open up a few more options for the 92-93 crowd for a better shifting trans. Besides, I'm in no hurry. Gas prices haven't quite come down enough yet.

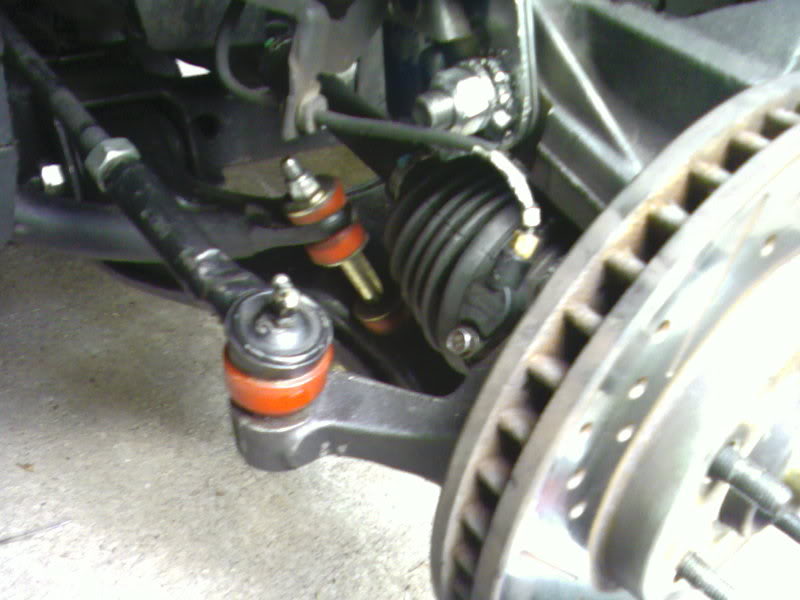

dont do the ball joint caps grease WILL leak out gardually trust me i did do the tie-rod boots those i do recomend
heres a picName:  Photo-0004.jpg
Views: 0
Size:  56.5 KB
91buickman is offline   Reply With Quote
