Question Tranny Problem With O/D

I have a 96 Bonnie with 180K miles and the transmission won't shift into O/D until about 60 mph and then it is very touchy. The slightest change in speed and it jumps right out of O/D. This is killing my MPG. Used to be 25/31 now it is about 17/22. In today'* gas market that is not good. Any help will be greatly appreciated.
geno4952 is offline   Reply With Quote
Old 02-02-2009, 10:52 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

For slipping or no 4th gear.

Low fluid level
Plugged filter
debris in the valve body assembly
Bad 4th gear clutch

I would suggest a filter and fluid change.
Danthurs is offline   Reply With Quote
Old 02-02-2009, 11:08 PM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2009
Location: Western NY
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
geno4952 is on a distinguished road
Default

Actually this problem started shortly after a fluid - filter change. Maybe 500 miles or so. Ya think maybe a vacuum problem??
geno4952 is offline   Reply With Quote
Old 02-02-2009, 11:14 PM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Did you do the fluid filter change? One thing that happens real easy is this part falls out. You need to make sure it goes back in right.

Danthurs is offline   Reply With Quote
Old 02-03-2009, 08:31 AM   #5
Junior Member

Toddster's Avatar

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 1 Time in 1 Post
Toddster is on a distinguished road
Default

did you just have the fluid and filter changed or did you opt on the flush as well.
The flush is not always the best thing to do with a transmission with high miles.
Flushing it will remove old tarnish that the transmission actually needed to perform correctly over time.
Toddster is offline   Reply With Quote
Old 02-03-2009, 10:20 AM   #6
Member
Posts like a V-Tak

Join Date: Dec 2008
Posts: 79
Thanks: 0
Thanked 0 Times in 0 Posts
pumpedTSI is on a distinguished road
Default

Dan...........just a question..........what happens if the thermo element is not installed or installed incorrectly? What exactly does it do, whats its function? Reason for my question is that during my fluid/filter change it DID fall out and I mayu have reinstalled it upside down with the indentation in the plate facing down instead of up..............my tranny "seems" to be functioning fine tho..........
pumpedTSI is offline   Reply With Quote
Old 02-03-2009, 10:53 AM   #7
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I believe it'* a 1 way valve.
Danthurs is offline   Reply With Quote
Old 02-03-2009, 11:30 AM   #8
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2009
Location: Western NY
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
geno4952 is on a distinguished road
Default

The fluid change was done by my mechanic. I did not opt for the flush as I thought it seemed like a lot of cash at the time. One other thing that came up in another conversation was the TPS. Is this adjustable or just an electrical component that may be shot?

Thanks for the replies so far guys.
geno4952 is offline   Reply With Quote
Old 02-03-2009, 11:50 AM   #9
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Nothing can be adjusted on the TPS. You can test it by using a ohm meter between the signal(dark blue) and the ground (black) Watch for smooth changes, no jumps. I think that'* what you need to do. Guess I should try it out. Looks like I'm doing another write up.
Danthurs is offline   Reply With Quote
Old 02-03-2009, 12:42 PM   #10
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Here you go.

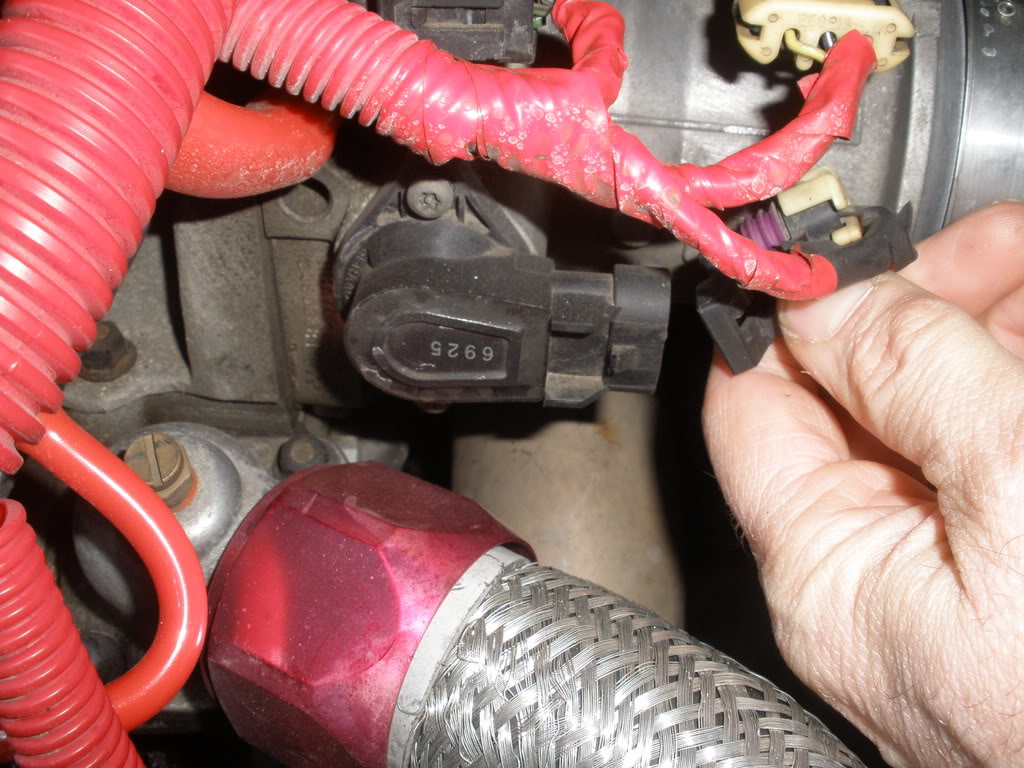

Locate your TPS, it'* on the throttle body in front. This is the sensor that'* connected to the butterfly inside the throttle body.

You will need to unplug the sensor.
Name:  P2030001.jpg
Views: 1
Size:  148.7 KB

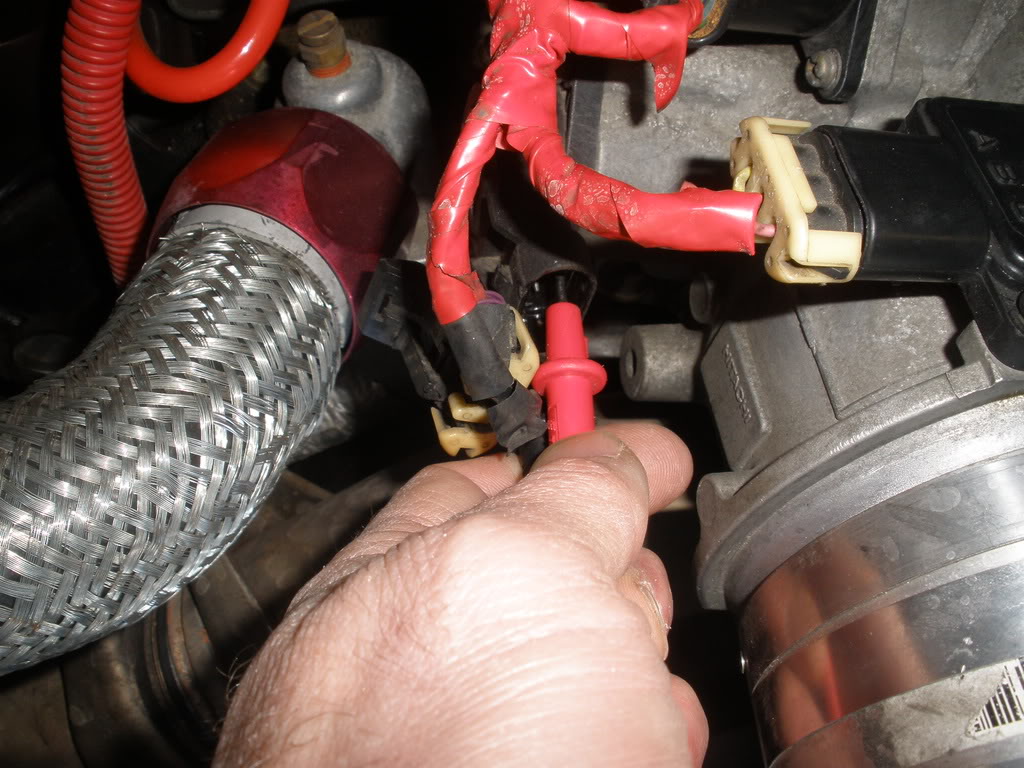

Then using a ohm meter locate your sense wire, (Dark blue (center)) and your ground wire, (black(bottom)) and connect the meters probes to these. Alligator clips will make this much easier.
Name:  P2030003.jpg
Views: 1
Size:  144.7 KB

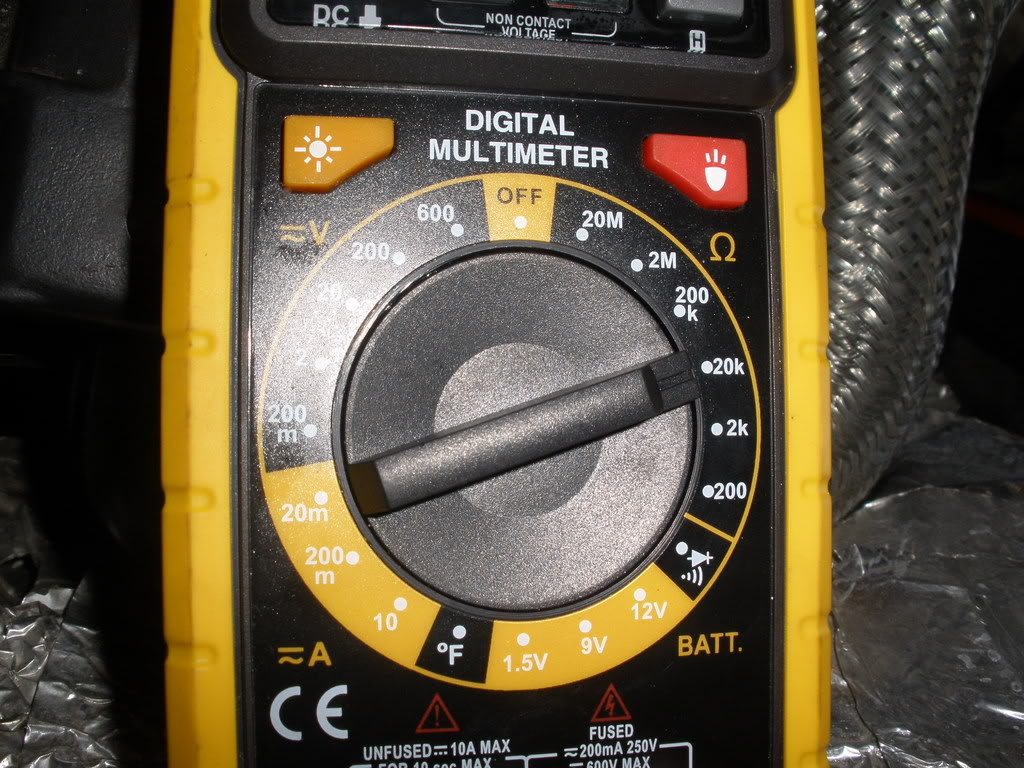

If you don not have a auto scaling meter you will need to set to the correct scale.
Name:  P2030005.jpg
Views: 2
Size:  169.5 KB

Now move the linkages and watch the readings. Move it slowly. You want to see a smooth change in the reading. Open all the way, then slowly close it again watching the readings. If at any point you see the readings drop or not move slowly, the sensor is bad.

Last edited by Danthurs; 02-04-2009 at 04:21 PM.
