Tranny line leak..Two pics..and one question - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 11-09-2005, 09:12 PM   #1
Senior Member
True Car Nut
Thread Starter

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default Tranny line leak..Two pics..and one question

I called the dealer, i got the trans pipe, that threads into the trans on one side, then comes out to the front of the trans, were the rubber hose, factory fitted to the pipe comes down to another metal line then i double clammed onto another pipe..
This is what the dealer sold me..the metal pipe, can I use this, then double clamp new tranny hose onto it..or does it have to crimped the same way it is in my picture.

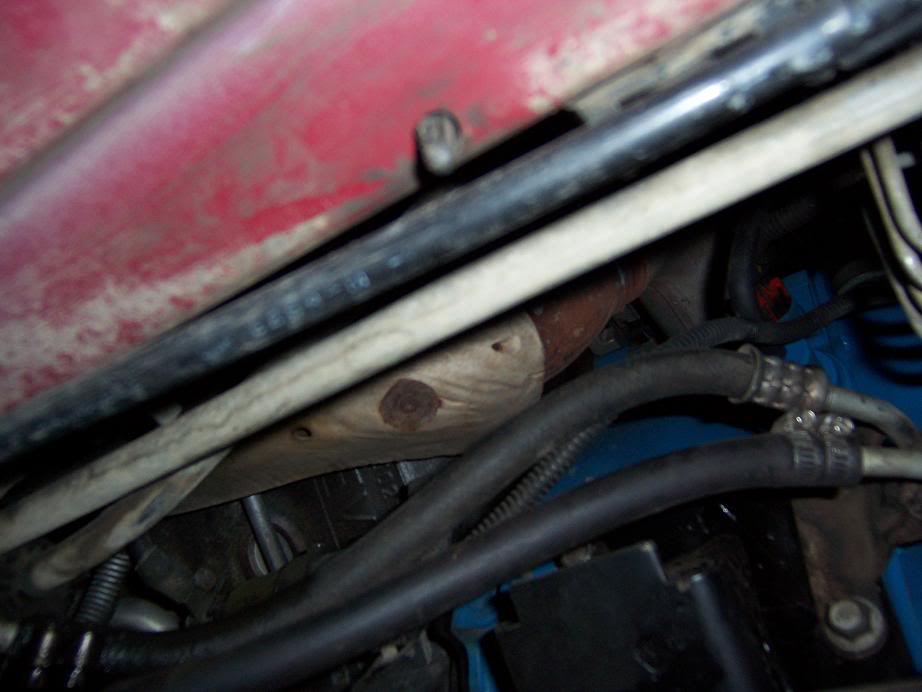

Name:  lineleak1.jpg
Views: 0
Size:  55.7 KB
Its the top line in that picture, at the very left side, u can see were its all wet around those two crimps
My concearn is...does the new line also need to be crimped at the top like the factory one is in the pic?
Second pic: The pipe Pontiac sold me...it will fit up there quite nicely then thread in
If i can use this...do i need to use loctite?
Name:  newline1.jpg
Views: 0
Size:  56.1 KB
SSEimatt93 is offline   Reply With Quote
Old 11-09-2005, 09:33 PM   #2
Member
Posts like a V-Tak

Join Date: Sep 2004
Location: Hilton, NY
Posts: 71
Thanks: 0
Thanked 0 Times in 0 Posts
jrw1234 is on a distinguished road
Default

No, the line doesn't have to be clamped like the original one was. You right on with cutting the original hose at the clamp, then replace the tranny line, and double clamp it like you said. It will work out fine. I've done many like this before to get by.
jrw1234 is offline   Reply With Quote
Old 11-09-2005, 11:32 PM   #3
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

That pipe the dealer sold you looks like an original piece. The factory clamp is a one time use permanent metal that is crimped to hold the hose the same way a screw clamp works.
You simply have to cut off the crimped clamp and remove the hose. I use a circular cutting tool driven by compressed air...but a hacksaw works.
2000SilverBullet is offline   Reply With Quote
Old 11-09-2005, 11:34 PM   #4
Senior Member
True Car Nut
Thread Starter

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

instead of all the cutting and fun stuff, Paul, I will use the new line from the factory and double crimp at each line..as that rubber hose, is just inbetween two metal lines..use a hose to make the connection type thing?
SSEimatt93 is offline   Reply With Quote
Old 11-10-2005, 07:51 AM   #5
Senior Member
Posts like a Camaro

Join Date: Apr 2005
Location: Grand Rapids,MI
Posts: 981
Thanks: 0
Thanked 0 Times in 0 Posts
Masterbm is on a distinguished road
Default

did you just have new tranny installed a few months ago. just wondering
Masterbm is offline   Reply With Quote
Old 11-10-2005, 08:40 AM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Matt.. While that is a perfectly fine fix to the problem. I personally prefer to get the entire line if available. That way it is crimped hose on both ends and there is no question about the pressure going through it.

If the part isn't available then I'd be right there with you on the next best method of the double clamp.
BillBoost37 is offline   Reply With Quote
Old 11-10-2005, 11:07 AM   #7
BANNED
Posts like a 4 Banger

Join Date: Sep 2003
Posts: 113
Thanks: 0
Thanked 0 Times in 0 Posts
sse for me is on a distinguished road
Default

I replaced both of mine on my old 92 with factory lines from the dealer and they both came with the hose crimped on there already. If I remember correctly the price wasn't too bad and they were both stock items.
sse for me is offline   Reply With Quote
Old 11-10-2005, 11:12 AM   #8
Senior Member
Posts like a Turbo

Join Date: Jul 2003
Location: Markham, Ontario, Canada
Posts: 239
Thanks: 0
Thanked 0 Times in 0 Posts
faisalmali is on a distinguished road
Default

I agree. I replaced both lines (one metal only and one metal/rubber combination). Both are available from the dealer, although the combination line costs more than the metal one (If I remember correctly, it was about $30 Canadian for the comb and about $10-$15 for the metal).
faisalmali is offline   Reply With Quote
Old 11-10-2005, 11:19 AM   #9
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Particularly on a 92-94, you want to replace the whole thing, end to end. Remember the engine fire I had? And the known problem with it?
willwren is offline   Reply With Quote
Old 11-10-2005, 11:20 AM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Clamp came loose and you doused the engine in fluid right!
BillBoost37 is offline   Reply With Quote
