Default Torque Wrench Question

I have an old half inch drive beam type torque wrench (from the 60* or 70*). It only reads in foot pounds. Ill be doing an upper intake replacement soon where the specs are in inch pounds (89 I believe). There* a site out there (http://www.onlineconversion.com/torque.htm) that I found to do conversions and it comes up with 7.4 foot pounds. I know the bolts on the manifold are small so Id have to use an adapter to go down to 3/8 drive. Will I be able to use my old torque wrench will it be accurate enough, or should I get a newer and better one? Will I even be able to fit the half inch wrench in there?
Rob96Olds88LS is offline   Reply With Quote
Old 02-27-2007, 06:36 PM   #2
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

You can use the 1/2" drive, but the graduations are too large to be very accurate. I bought a Craftsman 3/8" drive deflecting beam torque wrench for UIM/LIM work. It still reads in ft-lbs, but with much finer graduations, each line on the dial is 2.5 ft-lbs. It costs $25. The conversion is easy enough: 12 inch-lb = 1 foot-lb. Heres the link: http://www.sears.com/sr/javasr/produ...id=00944690000

I prefer deflecting beam torque wrenches not only because they are (usually) less expensive than the click type, but they are way more rugged. If you run over them with a truck, all you need to do is straighten out the pointer and the scale and it is as good as ever. They are not the most accurate +/- 4% I think; but that is close enough for anything I do.

Name:  craftsmantorque.jpg
Views: 53
Size:  80.0 KB

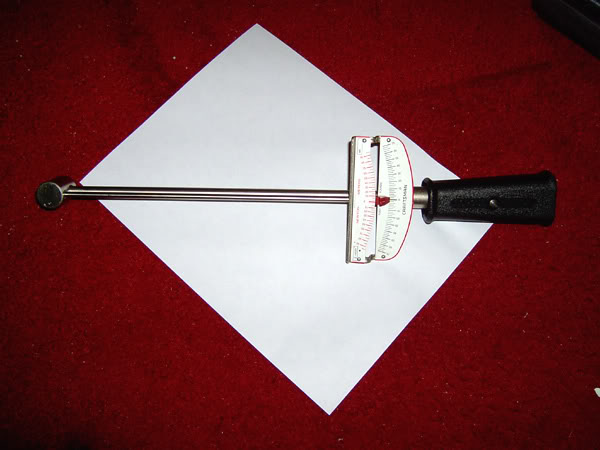

Here'* an idea of the size of the wrench sitting on an 8.5 x 11 sheet of paper.
Name:  Craftsmansize44960.jpg
Views: 50
Size:  34.9 KB
bill buttermore is offline   Reply With Quote
Old 02-27-2007, 07:01 PM   #3
Senior Member
Posts like a Corvette

Join Date: Jan 2007
Location: San Diego, CA
Posts: 1,451
Thanks: 0
Thanked 0 Times in 0 Posts
agrazela is on a distinguished road
Default

A big, 1/2" drive, 100+ ft lb type will be difficult or impossible to fit into some spots, and, as mentioned, will be very inaccurate below 20 or 30 ft lbs. If you are anal about torquing EVERY SINGLE bolt to correct spec, you've got to get a smaller one.

I got a Husky (model 39102) 3/8" drive, 20-250 in-lb, ratchet-to-click torque wrench (with storage case) off EBAY for like $70 shipped for doing UIM/LIM'*. It worked out great. I was able to use that single torque wrench for every single nut and bolt in the job.

Even though more expensive than the deflection type, I just personally like the ease and "foolproof-ness" of set-and-click types.
agrazela is offline   Reply With Quote
Old 02-27-2007, 07:06 PM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Go big or go home.

Name:  DSC03420.jpg
Views: 49
Size:  81.9 KB

In all seriousness, my deflecting beam wrench doesn't have a fine enough scale to even know. I'd beg/borrow/steal a smaller torque wrench for top-end use.

Can you post a pic of yours up close like the one above?
willwren is offline   Reply With Quote
Old 02-27-2007, 09:13 PM   #5
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

I've purchased a couple from JCWhitney that I have been happy with.

Torque Wrenches
Archon is offline   Reply With Quote
Old 02-27-2007, 09:39 PM   #6
Junior Member

Join Date: May 2006
Location: BonnevilleHell
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
clm2112 is on a distinguished road
Default Re: Torque Wrench Question

Welp, keep the beam type, but go find a new inch-lb wrench too.

I like my old Sears beam wrench, they are great for finding breakaway torques on bolts plus they never wear out. However one calibrated in foot-lbs isn't acurate enough to measure below 10ft-lbs. The inch-lb spec you asked about is below 10 ft-lbs. (That'* why it is in inch-lbs..it'* below the range of most torque wrenches calibrated in ft-lbs.)

And, when you are done using your new wrench, don't forget to dial it back to 0 before putting it in the drawer. The spring loaded ones can take a set that effects the accuracy if left on a setting other than zero for a while.

Now, repeat after me...

"This is my torque wrench. There are many like it but this one is mine.
My torque wrench is my best friend. It is my life.
I must master it as I must master my life.
Without me, my torque wrench is useless. Without my torque wrench I am useless...."
clm2112 is offline   Reply With Quote
Old 02-27-2007, 10:04 PM   #7
Senior Member
Posts like a Turbo

Join Date: Jul 2006
Location: deep woods of SE North Carolina
Posts: 258
Thanks: 0
Thanked 0 Times in 0 Posts
Ramsrule is on a distinguished road
Default

Quote:
Originally Posted by willwren
Go big or go home.



In all seriousness, my deflecting beam wrench doesn't have a fine enough scale to even know. I'd beg/borrow/steal a smaller torque wrench for top-end use.

Can you post a pic of yours up close like the one above?
Holy torque-wrench overseeing guard dogs Batman!!!!

That is a mighty wand, the lady said.

I too am in the market for a TW and will be monitoring this thread for any additional info.... keep it coming people!
Ramsrule is offline   Reply With Quote
Old 02-27-2007, 11:33 PM   #8
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Feb 2007
Location: Oak Ridge, NC
Posts: 19
Thanks: 0
Thanked 1 Time in 1 Post
Rob96Olds88LS is on a distinguished road
Default

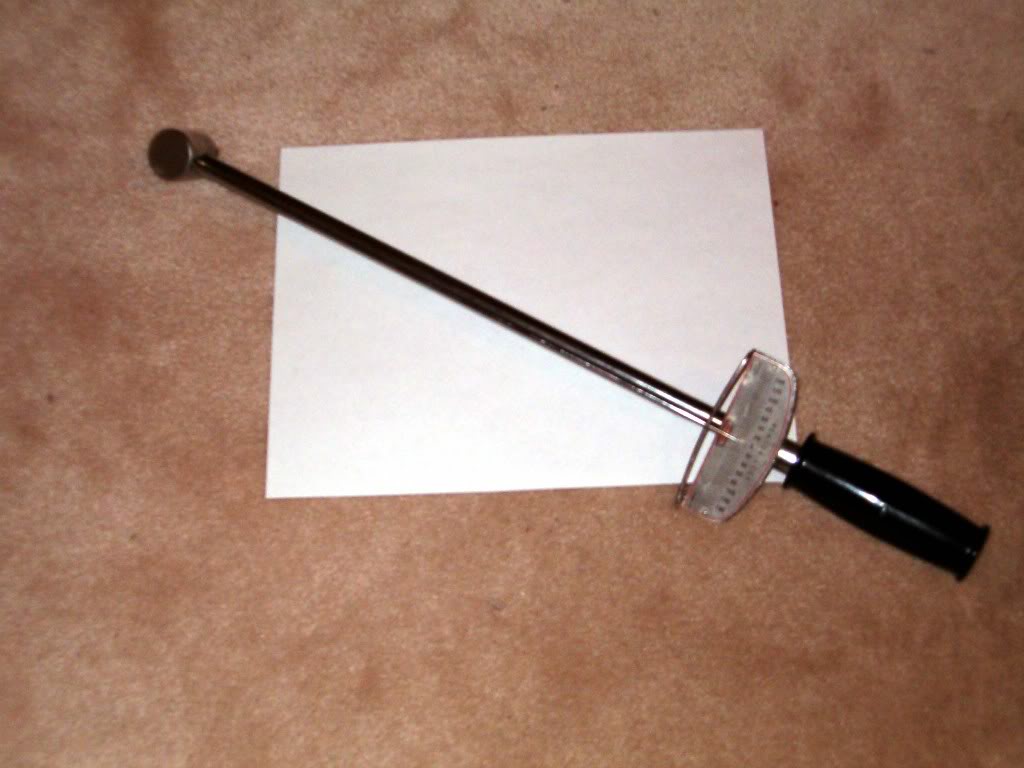

You guys are hilarious!!! Here are some pics of the late 1960s or early 70s Craftsman torque wrench:

Against a 8 1/2 x 11 sheet of paper for perspective
Name:  TorqueWrench1.jpg
Views: 57
Size:  74.6 KB

Name:  TorqueWrench2.jpg
Views: 198
Size:  81.1 KB
Rob96Olds88LS is offline   Reply With Quote
Old 02-27-2007, 11:41 PM   #9
Junior Member

Join Date: May 2006
Location: BonnevilleHell
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
clm2112 is on a distinguished road
Default

Quote:
Originally Posted by Rob96Olds88LS
You guys are hilarious!!! Here are some pics of the late 1960s or early 70s Craftsman torque wrench:
Sweeet. Mine looks more like Bills, Yours is more classic
clm2112 is offline   Reply With Quote
Old 02-28-2007, 12:11 AM   #10
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default Re: Torque Wrench Question

Quote:
Originally Posted by clm2112

"This is my torque wrench. There are many like it but this one is mine.
My torque wrench is my best friend. It is my life.
I must master it as I must master my life.
Without me, my torque wrench is useless. Without my torque wrench I am useless...."
The rifleman'* credo. Nice adaptation.

Don't forget that when torquing headers or exhaust manifolds, a swivel-head torque wrench is invaluable, if the engine is installed during torquing. In fact, without a swivel-head torque wrench, it'* virtually impossible to torque them correctly, if at all.

My next torque wrench will be a 0-100lb swivel-head 3/8" drive.
