Default SunRoof Control Module?

Where can i find the device that conects to the sun roof motor it has 2 connectors on it and is located in the cieling right next to the motor i was diagnosing my sunroof today and found it missing.... That explains why it doesnt work so i wired it up to run manually and my sunroof moves but i still require this module. I am not sure on the exact name of this device any ideas where i can get it ?
LuxuriesPremier is offline   Reply With Quote
Old 05-14-2005, 04:03 AM   #2
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

can u explain it from this pic??

ur best bet is a junk yard...prolly for under $5

Name:  PDR_0003.jpg
Views: 13
Size:  41.7 KB
harofreak00 is offline   Reply With Quote
Old 05-14-2005, 04:04 AM   #3
Senior Member
True Car Nut

Join Date: Sep 2004
Location: Farmington, Minnesota =MWBF '05 SURVIVOR= =CEBF '06 SURVIVOR= =August '06 COTM=
Posts: 9,130
Thanks: 0
Thanked 0 Times in 0 Posts
LakevilleSSEi is on a distinguished road
Default

Pull the headliner down to expose more of the wiring for the sunroof, to the left of the sunroof should be a lil black box plugged in up there......That'* the way it'* set up on the impala'*.....I'd imagine it'* pretty close to the same....But I can't be sure and it'* a place to start
LakevilleSSEi is offline   Reply With Quote
Old 05-14-2005, 04:12 AM   #4
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

Quote:
Originally Posted by LakevilleSSEi
Pull the headliner down to expose more of the wiring for the sunroof, to the left of the sunroof should be a lil black box plugged in up there......That'* the way it'* set up on the impala'*.....I'd imagine it'* pretty close to the same....But I can't be sure and it'* a place to start

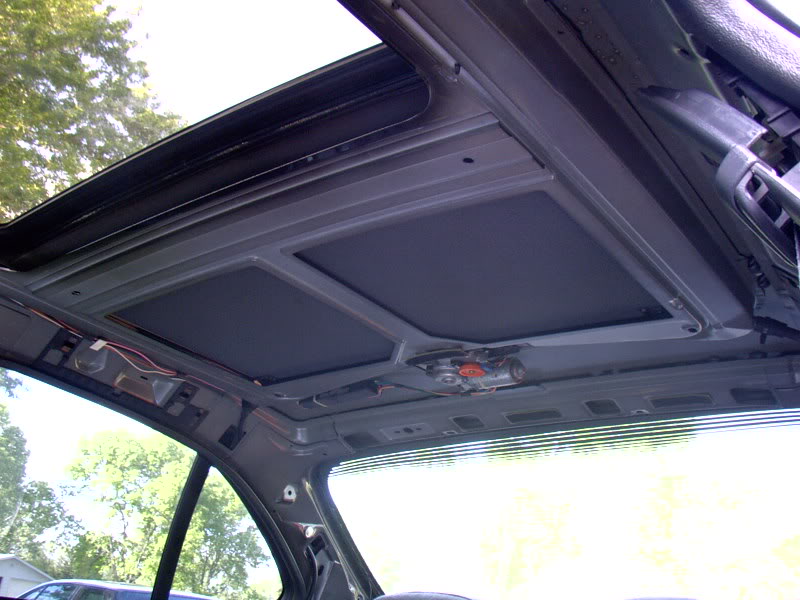

ahh yes... this black box

Name:  PDR_0001.jpg
Views: 17
Size:  76.7 KB

prolly the connector between the motor and the box?
harofreak00 is offline   Reply With Quote
Old 05-14-2005, 04:30 AM   #5
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2005
Location: Pawtucket, RI
Posts: 333
Thanks: 0
Thanked 0 Times in 0 Posts
LuxuriesPremier is on a distinguished road
Default

I need the black box thing thats what im missing i have the motor and i tested it all and it works jsut need the box now what is it called?
LuxuriesPremier is offline   Reply With Quote
Old 05-14-2005, 04:40 AM   #6
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

Quote:
Originally Posted by LuxuriesPremier
I need the black box thing thats what im missing i have the motor and i tested it all and it works jsut need the box now what is it called?
sunroof module control

Quote:
GM PART # 25678051
CATEGORY: All
PACK QTY: 1 CORE CHARGE: $0.00
GM LIST: $161.90
OUR PRICE: $92.28
DESCRIPTION: MODU-*/RF
dude... get to the junker now...
harofreak00 is offline   Reply With Quote
Old 05-14-2005, 04:43 AM   #7
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2005
Location: Pawtucket, RI
Posts: 333
Thanks: 0
Thanked 0 Times in 0 Posts
LuxuriesPremier is on a distinguished road
Default

Holy **** that is outrageous definately junkyard .....
LuxuriesPremier is offline   Reply With Quote
Old 05-14-2005, 09:52 AM   #8
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

I have one from the 97 donor of you are interested.
randman1 is offline   Reply With Quote
Old 05-14-2005, 11:50 AM   #9
Senior Member
True Car Nut

Join Date: Sep 2004
Location: Farmington, Minnesota =MWBF '05 SURVIVOR= =CEBF '06 SURVIVOR= =August '06 COTM=
Posts: 9,130
Thanks: 0
Thanked 0 Times in 0 Posts
LakevilleSSEi is on a distinguished road
Default

hrmmmm...on the impalas they're above the left visor...Bonne'* opposite I guess....LOL
LakevilleSSEi is offline   Reply With Quote
Old 05-14-2005, 07:14 PM   #10
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2005
Location: Pawtucket, RI
Posts: 333
Thanks: 0
Thanked 0 Times in 0 Posts
LuxuriesPremier is on a distinguished road
Default RandMan You Have one?

If you have one that you are positive works ill be willing to take that off your hands how much u want for it?
