Default steering wheel controls, couldnt you...

use a small metal rod instead of the toothpicks. i made the toothpicks with one end jb weld coated, and all of em work great, im just wondering how well they are gonna hold up. i dont feel like doing this again, so im gonna do it right. if i got a metal rod cut the same length, wouldnt that work the same?
harofreak00 is offline   Reply With Quote
Old 08-08-2004, 07:52 PM   #2
Senior Member
True Car Nut

Join Date: Nov 2002
Location: Texarkana, Texas
Posts: 6,041
Thanks: 0
Thanked 0 Times in 0 Posts
Damemorder is on a distinguished road
Default

To much damage to the micro switches. The best yet probably most expensive way to do it would be to use arctitectual pencil rubber erasers.
Damemorder is offline   Reply With Quote
Old 08-08-2004, 07:54 PM   #3
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

ok ill stick with the toothpicks...i only did one side of them, will that be ok? it would be really hard to get both sides, as i would have to put it on while they are in the hole
harofreak00 is offline   Reply With Quote
Old 08-08-2004, 07:59 PM   #4
Senior Member
True Car Nut

Join Date: Nov 2002
Location: Texarkana, Texas
Posts: 6,041
Thanks: 0
Thanked 0 Times in 0 Posts
Damemorder is on a distinguished road
Default

I did it my first time from memory of when I read the instruction waaay bak when. Cut the toothpick 9/32nds of an inch long, put one in each hole, put the springs on and snap the switch rocker on.
Damemorder is offline   Reply With Quote
Old 08-08-2004, 08:53 PM   #5
Senior Member
True Car Nut

Join Date: Dec 2002
Location: Sauk Centre, MN
Posts: 5,458
Thanks: 0
Thanked 0 Times in 0 Posts
OLBlueEyesBonne is on a distinguished road
Default

Pics please, but then again, I won't be able to use the steering wheel controls after the Clarion deck arrives Tuesday.
OLBlueEyesBonne is offline   Reply With Quote
Old 08-08-2004, 09:12 PM   #6
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

as requested

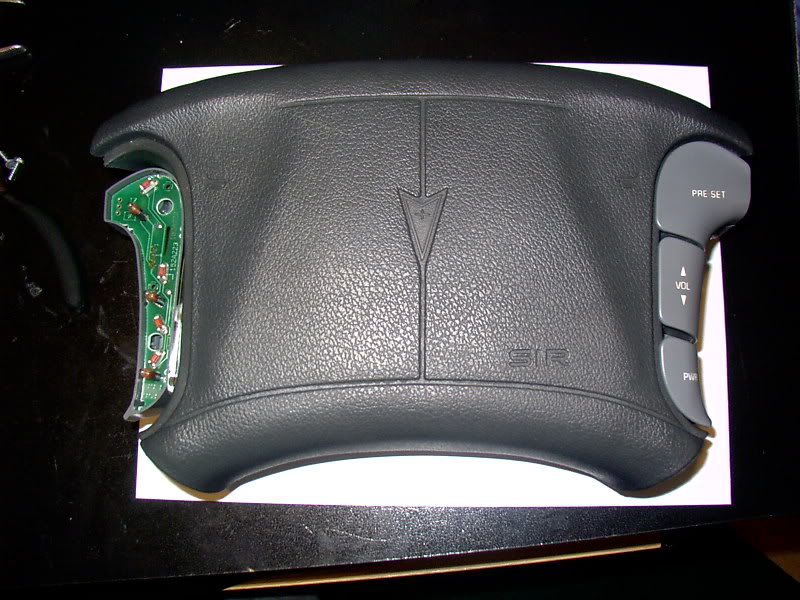

Name:  PDR_0008.jpg
Views: 2
Size:  99.6 KB

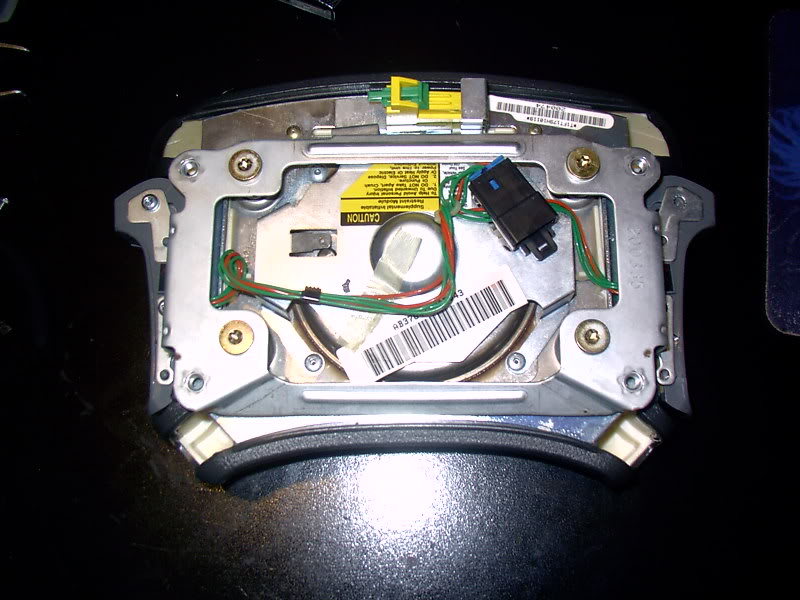

Name:  PDR_0009.jpg
Views: 2
Size:  83.2 KB

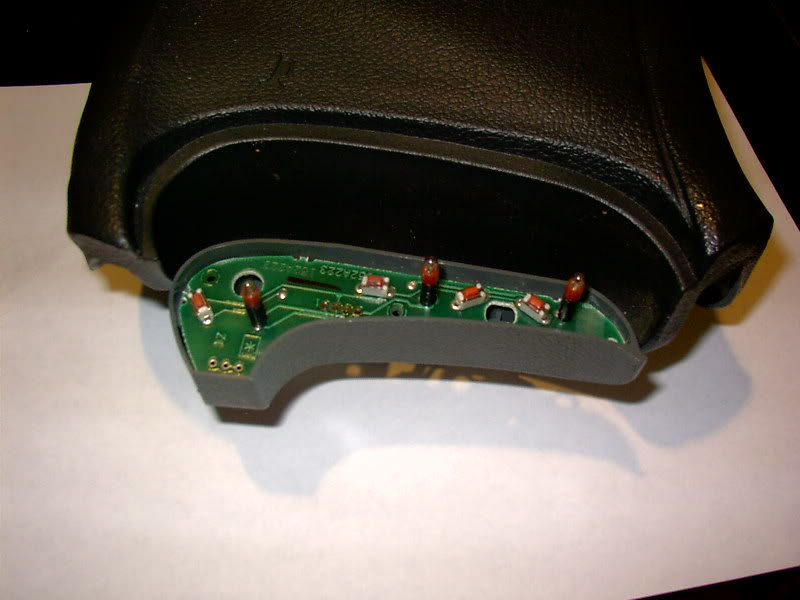

Name:  PDR_0001.jpg
Views: 2
Size:  50.1 KB

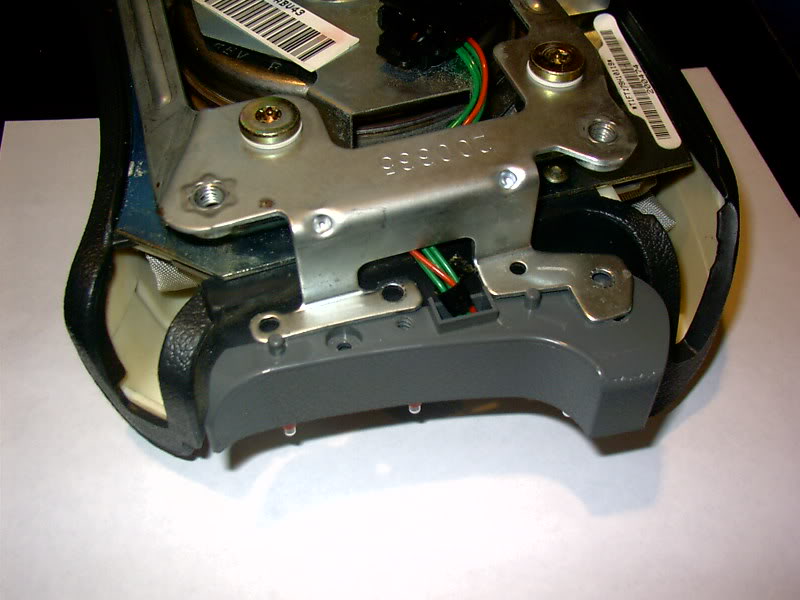

Name:  PDR_0002.jpg
Views: 3
Size:  60.6 KB

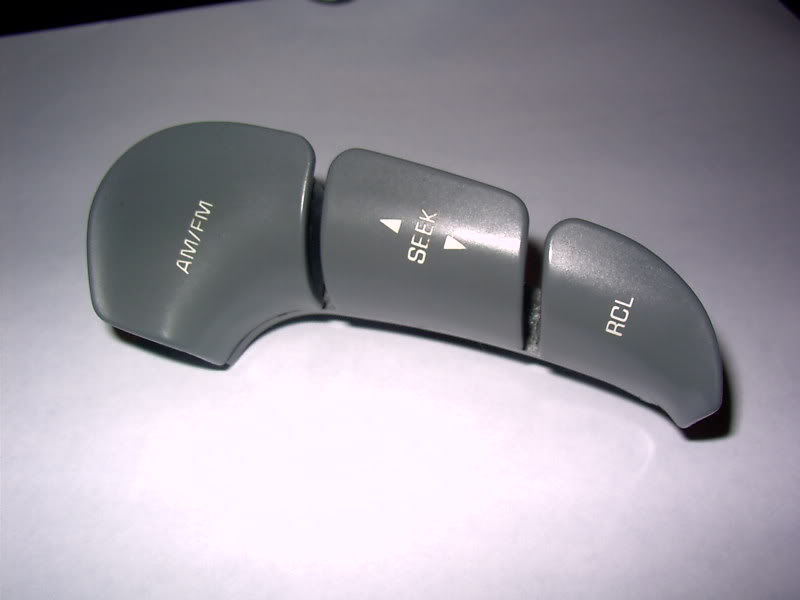

Name:  PDR_0004.jpg
Views: 2
Size:  25.4 KB

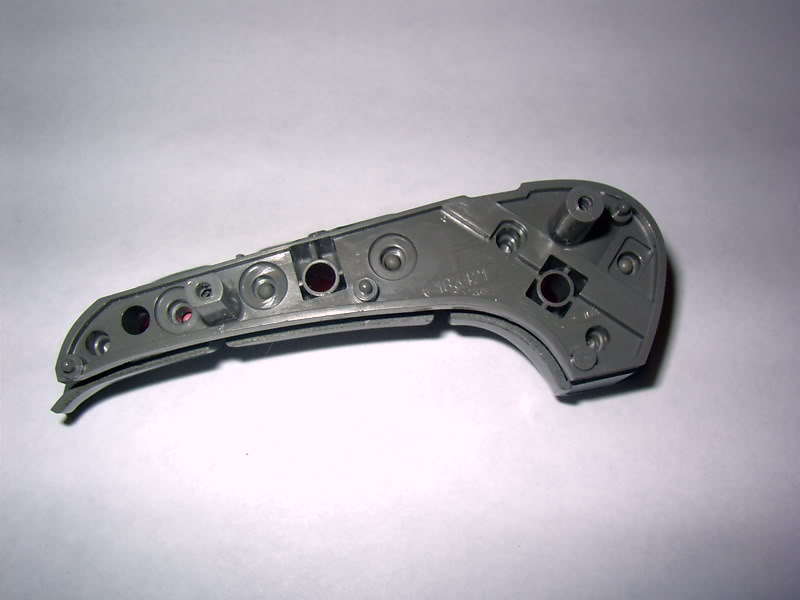

Name:  PDR_0003.jpg
Views: 1
Size:  34.2 KB

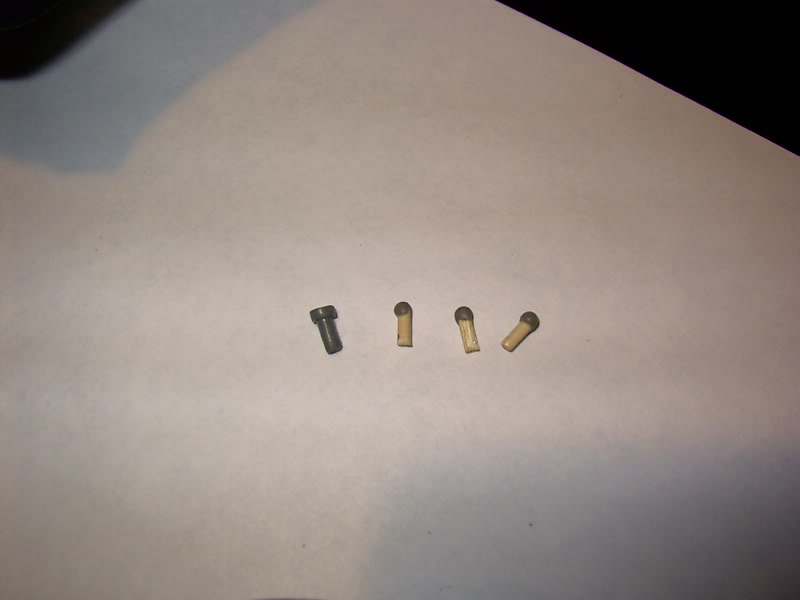

Name:  PDR_0007.jpg
Views: 2
Size:  18.0 KB
harofreak00 is offline   Reply With Quote
Old 08-08-2004, 10:39 PM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Just be CAREFUL to disable the airbags correctly.

Disconnect the battery. Wait at least 10 minutes.
Pull the SRS fuse.
Disconnect the yellow harness under the steering column.

Wear body armor just in case.

I stuck with my stock rubber tabs, but added a spot of JB weld to each end.
They still work great. No toothpicks in mine.
willwren is offline   Reply With Quote
Old 08-08-2004, 11:53 PM   #8
Senior Member
True Car Nut

Join Date: Dec 2002
Location: Sauk Centre, MN
Posts: 5,458
Thanks: 0
Thanked 0 Times in 0 Posts
OLBlueEyesBonne is on a distinguished road
Default

Will,
I son't have to follow that procedure. I have no passenger air bag installed now (have one but am waiting for a uncracked dash and bag cover before I install it). So for right now the drivers SIR is disconnected, except for the horn and steering wheel controls (which dysfunctional at the moment -wishing I hadn't sold the perfect set from the original blown bag).
OLBlueEyesBonne is offline   Reply With Quote
Old 08-09-2004, 01:39 AM   #9
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

for some reason my pins were the consistancy of peanut butter...
harofreak00 is offline   Reply With Quote
Old 08-09-2004, 01:53 AM   #10
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Heat and armor-all will do that.
willwren is offline   Reply With Quote
