Default sound from the serpentine belt area

I have a chht chht chhht sound coming from the belt area that speeds up as I speed up..It'* loud.

I will get a recording of the sound when I get home tonight, but can anyone tell me how to stop it? Can I spray WD40 over all the moving parts?
Skippy1827 is offline   Reply With Quote
Old 09-21-2007, 09:37 AM   #2
Senior Member
Posts like a Corvette

Join Date: Feb 2007
Location: Sanford Michigan
Posts: 1,200
Thanks: 0
Thanked 0 Times in 0 Posts
crash93ssei is on a distinguished road
Default

Do not use any WD-40...


Take the belt off, and spin all the pulleys by hand. Listen for any noise and feel for any play in the bearings. That should get you started, and should turn up some results.
crash93ssei is offline   Reply With Quote
Old 09-21-2007, 09:56 AM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Do you hear the sound when parked? Does it follow the engine rpm or your speed?
BillBoost37 is offline   Reply With Quote
Old 09-21-2007, 09:54 PM   #4
Senior Member
Posts like a Northstar
Thread Starter

Skippy1827's Avatar

Join Date: Jun 2006
Location: Waukesha, Wisconsin
Posts: 747
Thanks: 0
Thanked 0 Times in 0 Posts
Skippy1827 is on a distinguished road
Default

Yes, Bill.. I hear it when parked... It'* got a rhythmic chirp or brushing sound.. It follows the rpms meaning it gets faster. the noise changes, sometimes not as loud. But always present
Skippy1827 is offline   Reply With Quote
Old 09-22-2007, 06:18 AM   #5
Member
Posts like a V-Tak

Join Date: Jun 2007
Location: Plymouth WI
Posts: 69
Thanks: 0
Thanked 0 Times in 0 Posts
lammers is on a distinguished road
Default

check to see if is a tensioner pulley bearing is going out. i was hearing a sound like that from the same area, and last monday on my way home i heard a loud squeal, and check engine light came on. the bearing in the tensioner pulley on the accessory belt went out and the plastic pulley melted, and flew off, shredding my accessory belt leaving me with no power steering or waterpump. just something that my be the problem. you don;t want to end up with a broken car if you can avoid it.
lammers is offline   Reply With Quote
Old 09-22-2007, 10:11 AM   #6
Senior Member
Posts like a Northstar
Thread Starter

Skippy1827's Avatar

Join Date: Jun 2006
Location: Waukesha, Wisconsin
Posts: 747
Thanks: 0
Thanked 0 Times in 0 Posts
Skippy1827 is on a distinguished road
Default

Can you explain where the tensioner pulley is please. Picture?
Skippy1827 is offline   Reply With Quote
Old 09-22-2007, 12:18 PM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

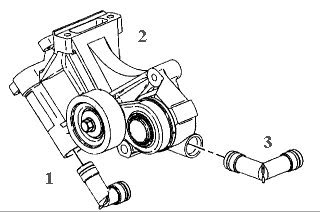

Name:  tensioner.jpg
Views: 5
Size:  14.5 KB

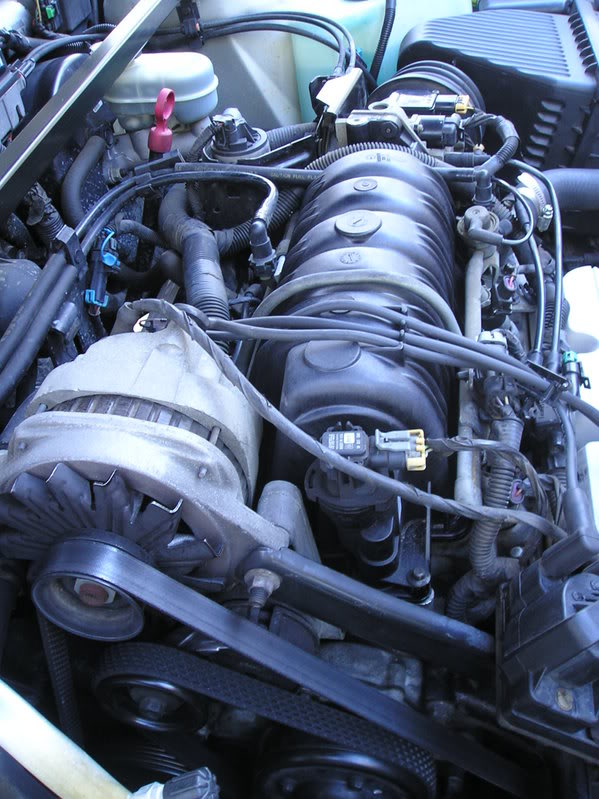

Right below the alternator:

Name:  L36PCV.jpg
Views: 5
Size:  102.9 KB
willwren is offline   Reply With Quote
Old 09-22-2007, 10:32 PM   #8
Junior Member

Join Date: Oct 2006
Location: Easton , PA
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
JuanCarlos is on a distinguished road
Default

Hi . im having a very close problem , but in my case the noise start after 15/20 minutes later when the engine heat-up , i change the belt , doing that project a did a small crack in the housing of the spring , i went to the yard and got the part (tension pulley) i would appreciate any response as any link and/or the steps to replace the tension pulley.

Thank You.







JuanCarlos is offline   Reply With Quote
Old 09-23-2007, 11:34 AM   #9
Member
Posts like a V-Tak

Join Date: Sep 2003
Location: Ontario
Posts: 67
Thanks: 0
Thanked 0 Times in 0 Posts
Icebound is on a distinguished road
Default

..

assuming that you are just replacing the pulley, and not the entire tensioner assembly.... it should just be a left-hand thread on the bolt.

You put a socket on it, and turn to the LEFT to release the tension and slip the belt off. Then turn the bolt to the RIGHT to loosen the pulley. I believe that there is some sort of washer behind the pulley that you do not want to lose..
Icebound is offline   Reply With Quote
Old 09-23-2007, 12:09 PM   #10
Senior Member
Posts like a Northstar
Thread Starter

Skippy1827's Avatar

Join Date: Jun 2006
Location: Waukesha, Wisconsin
Posts: 747
Thanks: 0
Thanked 0 Times in 0 Posts
Skippy1827 is on a distinguished road
Default

I changed the belt a long time ago and ended up removing the motor mount to get a new one on. .....There has got to be a way to get a belt on without removing the motor mount...
Right??

Is there a techinfo on the belt removal and replacement?
Skippy1827 is offline   Reply With Quote
