Default Snapped an exhaust bolt

It was a beautiful day, so I thought I'd finally be proactive and change out that cracked EGR-LIM tube before it became a major problem.

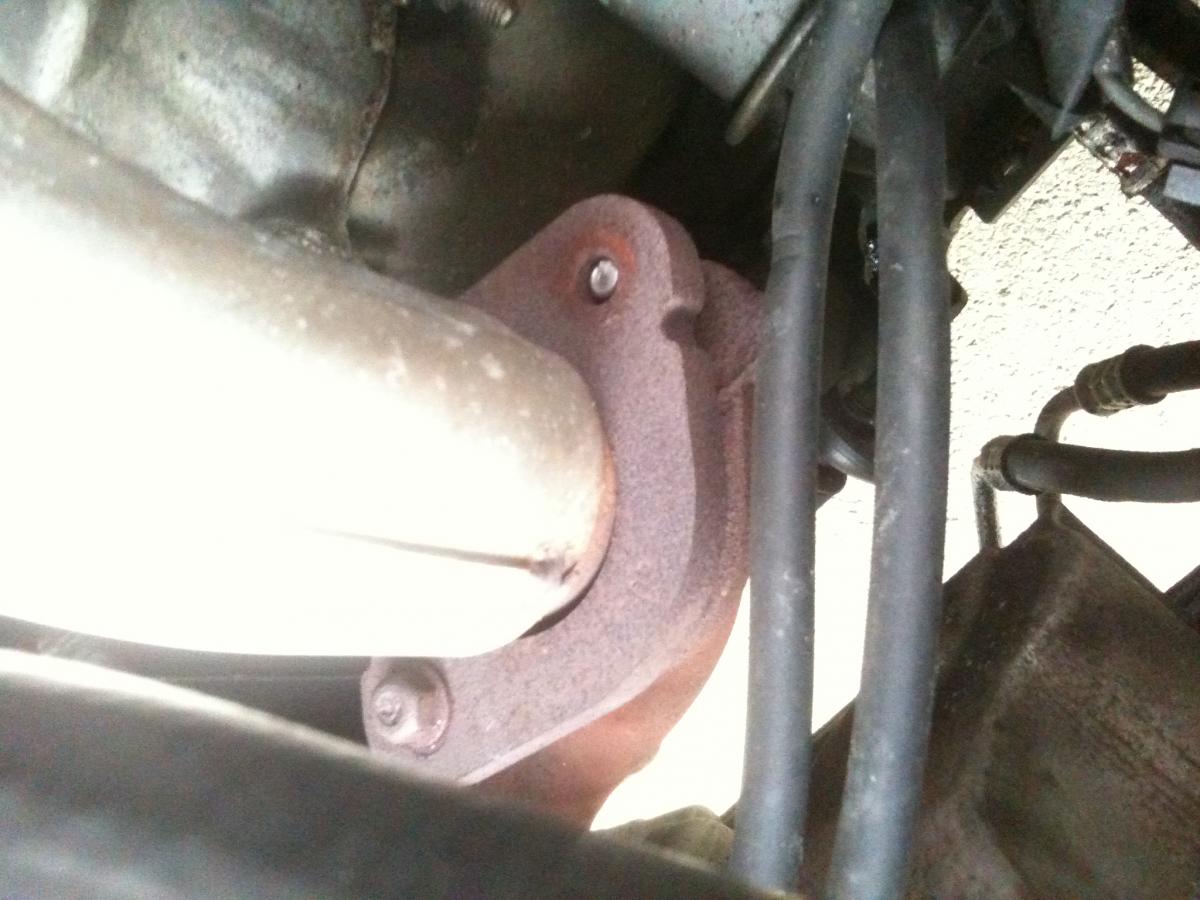

About four minutes in, I snapped the head off of one of the crossover bolts. I ran the engine and there doesn't seem to be any exhaust leak, so everything'* still in place. You'd think after being removed six months ago, it would come out without much of a fight.

So, now what do I do?
Attached Thumbnails
Snapped an exhaust bolt-photo-1.jpg   Snapped an exhaust bolt-photo-2.jpg
SignOfZeta is offline   Reply With Quote
Old 05-01-2011, 09:39 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

It will vibrate loose and you will have a exhaust leak. The other one is likely to snap as well. As will the back two. Bite the bullet and snap them off. Then spray some penetrating oil on the studs holding the manifold on the head. Then take the whole manifold off and drill out the broken stud and re tap it. The head studs rarely snap off.
Danthurs is offline   Reply With Quote
Old 05-02-2011, 08:55 AM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I doubt we took those off when you motor was out. Because ...if you don't need to take it off, you don't take it off.

Follow what Dan says. Hopefully you'll be lucky Personally..I'd start praying. FWIW call me after 3pm and ask me to look at the manifold at my place to see if there'* bolts broken in it. If not.. you can replace just the front rather easy w/o dealing with the back bolts.
BillBoost37 is offline   Reply With Quote
Old 05-02-2011, 09:56 AM   #4
Senior Member
Certified GM nut
Thread Starter

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

Justin and I popped off the crossover to replace the end cap gasket on Sunday. You were either asleep or out at the time.

I'll give you a call later. Hopefully it'* good, as I'm not even sure if my drill has a working battery anymore.
SignOfZeta is offline   Reply With Quote
Old 05-02-2011, 01:24 PM   #5
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Other thing you can do is to pull the front manifold off, then get the bolt out and put it back on with a new bolt.
BillBoost37 is offline   Reply With Quote
Old 05-02-2011, 09:47 PM   #6
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

If worst comes to worst, just drill it out and put a bolt threw it, no need for a stud.
Danthurs is offline   Reply With Quote
Old 05-03-2011, 03:01 AM   #7
Senior Member
Certified GM nut
Thread Starter

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

Thanks Dan, but I took the other way out. One of Bill'* W-body friends left behind a front manifold, so we swapped it. It bolted up nicely, and that blasted EGR tube got changed too.

I also saw what happens when your metal ratchet brushes against both starter posts. I'm just glad I went to the bathroom before I showed up.

As for the old manifold, maybe I'll clean it up, add a couple coats of high-heat paint, and make the engine bay look a little nicer. We'll see.
SignOfZeta is offline   Reply With Quote
Old 05-03-2011, 07:53 AM   #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

That was pretty funny. I heard a little sound and Colin tried to get up with a car above him. I looked down as he was abandoning his location and said "it only tingles for a moment".
BillBoost37 is offline   Reply With Quote
Old 05-03-2011, 08:10 AM   #9
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Now that'* funny. When I was in auto school one of the guys laid a wrench down. He put in on the battery, a top post battery. Put it down right on top of both posts. Talk about a fireworks show.
Danthurs is offline   Reply With Quote
Old 05-03-2011, 09:50 AM   #10
Senior Member
Posts like a Corvette

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

Quote:
Originally Posted by SignOfZeta View Post
I also saw what happens when your metal ratchet brushes against both starter posts. I'm just glad I went to the bathroom before I showed up.
Did that before and my ratchet still has the scar. I was disconnecting the starter to change my battery cables. Thinking to myself, "I think I'm missing a step." Then BANG. rrriiiigghhhttt disconnect the battery.
