Default Show Me Your O2 Sensor...

Hi All ~

It has been recommended (here0 that I change my O2 sensor in my '93 SE in order to improve my gas mileage. I have a hard time getting 20MPG under any circumstances, yet I see folks getting almost 30MPG on the highway. I have done a search of the forums and have not come up with much.

So my question is simply: please tell me what I need to know to change the O2 sensor. And if you have the pix, show me your O2 sensors! How does the O2 sensor affect mileage anyway?

In regards to the mileage, I drive the Bonne as though it had a raw egg under the gas pedal. I have recently changed the air filter. The car otherwise runs smoothly. ANy other suggestions for improved economy would be appreciated.

Thanks for your help.
NCCamper is offline   Reply With Quote
Old 02-23-2006, 05:48 PM   #2
Senior Member
Certified GM nut

Join Date: Sep 2005
Location: Home Sweet Home in New York
Posts: 2,009
Thanks: 0
Thanked 0 Times in 0 Posts
Mortehl is on a distinguished road
Default

In the back of your engine, look down. You'll see your rear exhaust manifold. You should notice a spark plug looking thingy there. That'* your O2 sensor. There'* a special socket you can use to get it out. Costs about 10-15 bucks.

I don't have any pics available, but that should help.
Mortehl is offline   Reply With Quote
Old 02-23-2006, 06:00 PM   #3
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default

The O2 Sensor provides input to the ECM in order to adjust fuel trim so that the engine isn't burning too rich or too lean.
markwb is offline   Reply With Quote
Old 02-23-2006, 06:18 PM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default



Rear exhaust manifold. Yours should be attached to the car.
See the threaded hole above the #4 exhaust port? Just before the downpipe flange at the top of the pic. (yes, I cleaned out the ceramic paint from the threads before installing the new sensor).

You can do it with a wrench. You don't need the special socket. It'* tight, but should take you only 5 minutes.[/img]

AC Delco Sensors ONLY. Part numbers are in Techinfo. You can order it from www.gmpartsdirect.com for a 40% discount from dealer retail.
willwren is offline   Reply With Quote
Old 02-23-2006, 07:12 PM   #5
Senior Member
Certified GM nut

Join Date: May 2005
Location: Wickliffe, Ohio
Posts: 2,155
Thanks: 0
Thanked 0 Times in 0 Posts
McGrath is on a distinguished road
Default

Quote:
Rear exhaust manifold. Yours should be attached to the car.
LMAO

I changed my O2 in a matter of mins. All I used was a rachet, extension bar and crows foot socket. & if I remember correctly I picked up atleast 5-6mpg after if was changed (it was really old & tired.)
McGrath is offline   Reply With Quote
Old 02-23-2006, 07:32 PM   #6
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Feb 2006
Posts: 220
Thanks: 0
Thanked 0 Times in 0 Posts
NCCamper is on a distinguished road
Default

Well, I expected a little verbal abuse, and here it is!

Seriously guys, thanks for the help. I'll get out there and find that sensor, though I am sure my manifold isn't fire engine red, and I am pretty sure it'* still attached to the car!

Is this a GM dealership-only part, or can I get it at AutoZone or Advance Auto?
NCCamper is offline   Reply With Quote
Old 02-23-2006, 07:42 PM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

www.gmpartsdirect.com

Cheaper than the dealer. The other places ONLY if they have AC Delco sensors or can get them for you.

Price it through GMPD and figure in shipping to make your choice.
willwren is offline   Reply With Quote
Old 02-23-2006, 07:52 PM   #8
Member
Posts like a V-Tak

Join Date: Jan 2002
Location: Martin Tn.
Posts: 92
Thanks: 0
Thanked 0 Times in 0 Posts
SOCLEANONE is on a distinguished road
Default

The 98'* have two o2 sensors one on the back side of the motor the other is under the car on the exsaust pipe.Did mine awhile back.I think Advance Auto used to loan out the specal socket to do the one on the back side of the motor. Later .
SOCLEANONE is offline   Reply With Quote
Old 02-23-2006, 08:16 PM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

From the gearhead photobucket.. (Willwren )

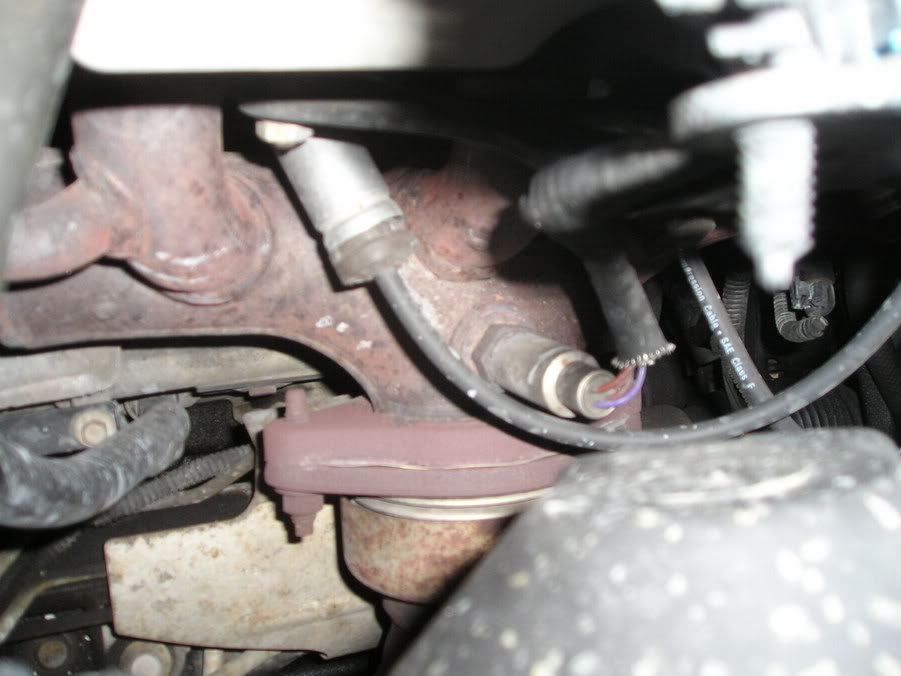

If you look behind your motor you will see your O2 sensor.
Name:  L36RearWireBootandO2.jpg
Views: 4
Size:  61.2 KB
BillBoost37 is offline   Reply With Quote
Old 02-23-2006, 08:30 PM   #10
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Feb 2006
Posts: 220
Thanks: 0
Thanked 0 Times in 0 Posts
NCCamper is on a distinguished road
Default

Yep...I found it! Right where it should be. Just remove the spark plug wire, and wrench it out. Looking at GMparts Direct, the "Oxygen Sensor" I am finding is something else, because it surely doesn't look a thing like this. I found it at a few other places, though. Is GM OEM recommended here, or is there a better brand? And I see 1,2, 3, and 4 wires listed. I am thinking mine is a 1.

Thanks for any feedback. And thanks for the help so far.

John
