Old 02-05-2009, 03:11 PM   #11
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

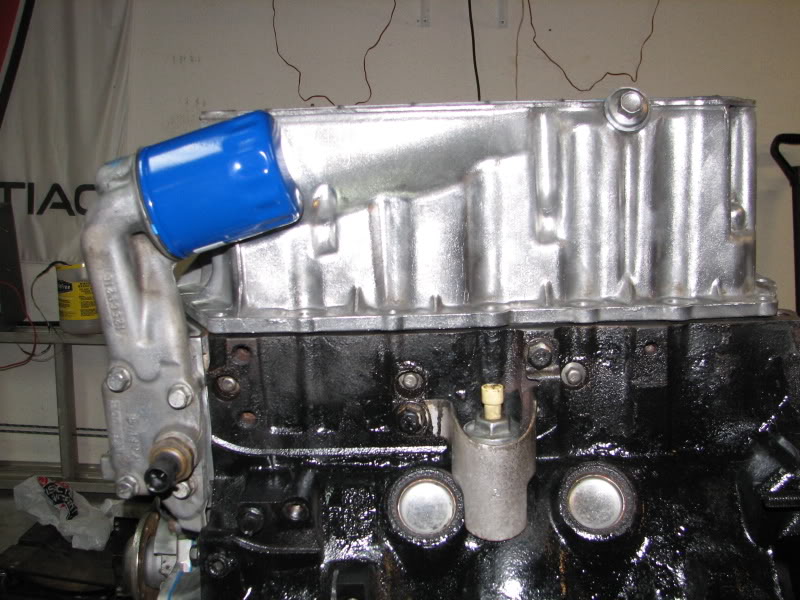

Here is a pic of the 2000 bonneville pan and oil filter adapter that is on my 97 bonneville. The 95-97 are completely the same subframe and body.with different outter fenders.

Name:  IMG_1666.jpg
Views: 13
Size:  101.5 KB

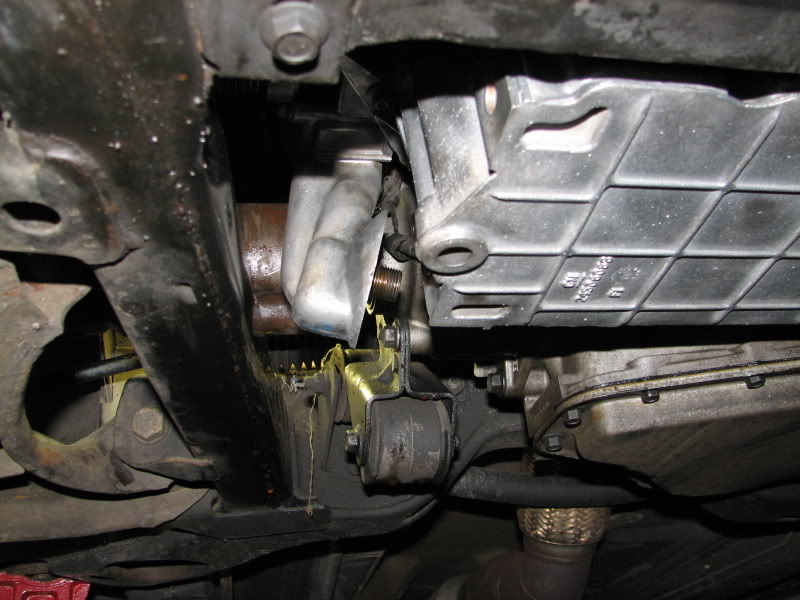

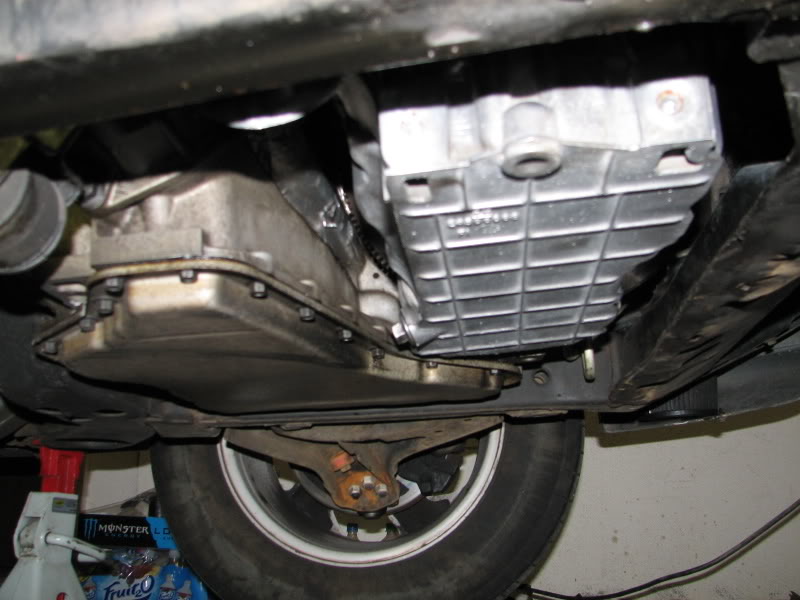

And in the car
Name:  IMG_1678.jpg
Views: 10
Size:  64.6 KB
Name:  IMG_1677.jpg
Views: 13
Size:  78.1 KB

Overall it'* a better setup than your original setup because you no longer take off the oil filter over the subframe.

As long as your pieces look like this, I would leave them on the motor.
BillBoost37 is offline   Reply With Quote
Old 02-05-2009, 03:15 PM   #12
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I forgot to mention one thing.

Name:  IMG_1668.jpg
Views: 15
Size:  101.6 KB

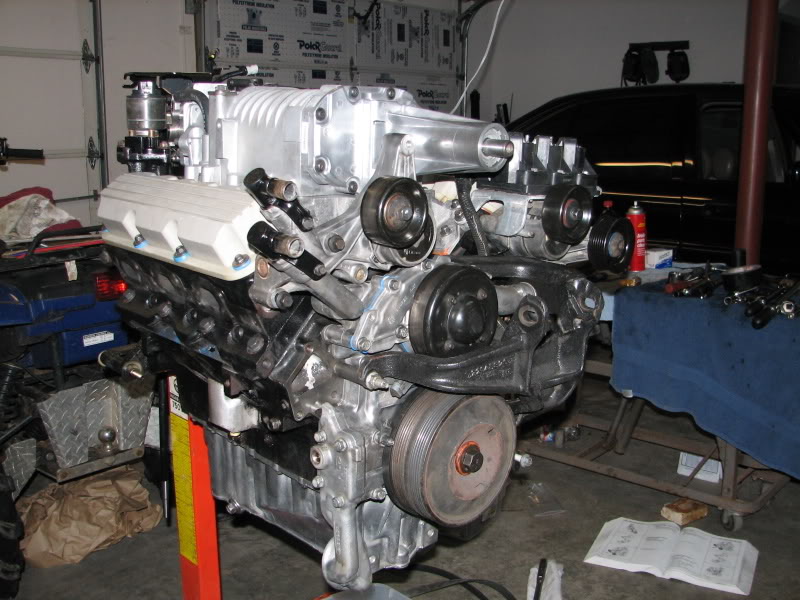

See the top of the oil filter adapter where ti bolts to the timing cover. There is a metal hunk that sticks straight up. It has no reason or value. Cut it flush. Your power steering pump won't fit with that hunk in the way. I cut mine in the car after realizing the piece was in the way.

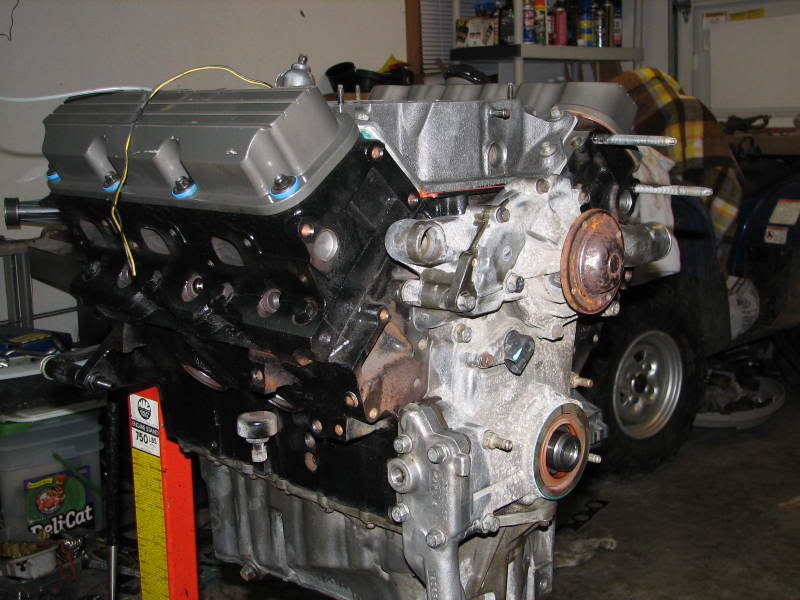

Heres a closer pic with it cut off. (Don't ask why it was back out and I won't tell the tale of 3 motors)
Name:  IMG_1794.jpg
Views: 12
Size:  70.3 KB

Last edited by BillBoost37; 02-05-2009 at 03:16 PM.
BillBoost37 is offline   Reply With Quote
Old 02-05-2009, 04:21 PM   #13
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2009
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
95GreenBonnie is on a distinguished road
Default

Billboost - Thank you very much - any possible way I can give you a call and ask you a question or two ???
95GreenBonnie is offline   Reply With Quote
Old 02-05-2009, 04:30 PM   #14
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2009
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
95GreenBonnie is on a distinguished road
Default

Or if you could give me a call @ 612-483-1495 ... I would appreciate it !
95GreenBonnie is offline   Reply With Quote
Old 02-05-2009, 04:55 PM   #15
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2009
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
95GreenBonnie is on a distinguished road
Default

My main concern at this point is the harmonic balancer. Can I leave the one that came with the motor on ??? Im gonna stick with the new style oil pan.
95GreenBonnie is offline   Reply With Quote
Old 02-06-2009, 08:08 AM   #16
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

yes leave the balancer on.

I'm on Eastern time here. Will pm you my number...I'll be able to talk after about 12 noon here today. for a bit, until I get to the Lasik office. then will be available again afterwards.
BillBoost37 is offline   Reply With Quote
Old 02-06-2009, 12:50 PM   #17
Senior Member
Posts like a Corvette

Join Date: Jan 2007
Location: San Diego, CA
Posts: 1,451
Thanks: 0
Thanked 0 Times in 0 Posts
agrazela is on a distinguished road
Default

Assuming it is good, DEFINITELY use the harmonic balancer that comes with the replacement engine. HB'* take a "groove" where the front cover crank seal touches them, and if you swap one used HB for another you run a great risk of leaking at that seal.

Also, as Bill said, check on the flywheels. A 2000+ LeSabre will have a 258mm torque converter bolt pattern, I do not know whether the 1995 Bonne is 258mm or 245mm.

Last edited by agrazela; 02-06-2009 at 12:54 PM. Reason: added info
agrazela is offline   Reply With Quote
