Same starter?: 93 L27 vs L67 - Page 3 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 07-17-2005, 07:32 PM   #21
Member
Posts like a V-Tak

Join Date: Dec 2004
Location: Saskatoon, Sask, Canada
Posts: 49
Thanks: 0
Thanked 0 Times in 0 Posts
d.denis is on a distinguished road
Default

I believe that both na and sc starters will work but there is a significant difference in size between the 2 and I think that the na starter wont fit into the space you have on a sc engine. The sc starter is smaller than the na starter, and of coarse the sc starter is more expensive.
d.denis is offline   Reply With Quote
Old 07-17-2005, 07:38 PM   #22
Senior Member
True Car Nut

Join Date: Jan 2004
Location: Chicago,IL MWBF '04 SURVIVOR MWBF '05 SURVIVOR Napa Manager
Posts: 3,955
Thanks: 0
Thanked 0 Times in 0 Posts
Kennginn is on a distinguished road
Default

Quote:
Originally Posted by d.denis
I believe that both na and sc starters will work but there is a significant difference in size between the 2 and I think that the na starter wont fit into the space you have on a sc engine. The sc starter is smaller than the na starter, and of coarse the sc starter is more expensive.
there is different sized starters thats true but why 2 different types???
Kennginn is offline   Reply With Quote
Old 07-18-2005, 08:58 AM   #23
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Quote:
Originally Posted by Kennginn
Quote:
Originally Posted by d.denis
I believe that both na and sc starters will work but there is a significant difference in size between the 2 and I think that the na starter wont fit into the space you have on a sc engine. The sc starter is smaller than the na starter, and of coarse the sc starter is more expensive.
there is different sized starters thats true but why 2 different types???
Exactly what I have been wondering...

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 07-21-2005, 07:23 PM   #24
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Well, so much for using my parts resources. I pulled the starter from the parts engine this afternoon but I found that housing was broken around one of the bolt holes. I figured that I would just chance the solenoid but found the starter currently on the 93 to have a crack in the housing. So... it was off to the parts store. Here are my findings for the different starters:

Name:  DSC01817.jpg
Views: 12
Size:  54.3 KB

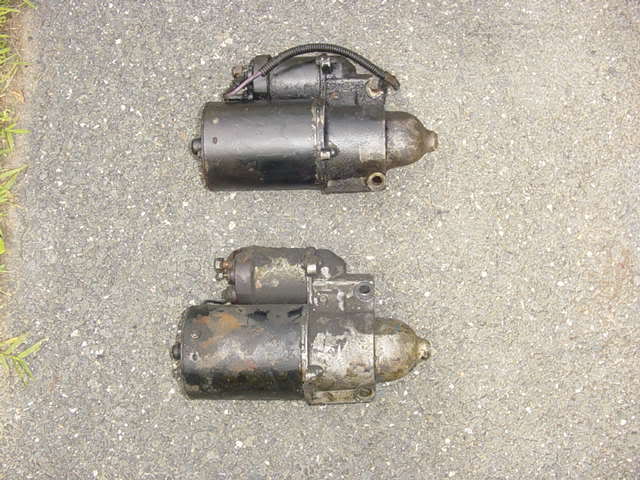

The starter on top is from the L27 and the one on the bottom is off of the L67. Other than color, they look the same to me. I couldn't find any part numbers on either so I can't tell if they are replacements or OEM equip.

Name:  DSC01819.jpg
Views: 8
Size:  54.6 KB

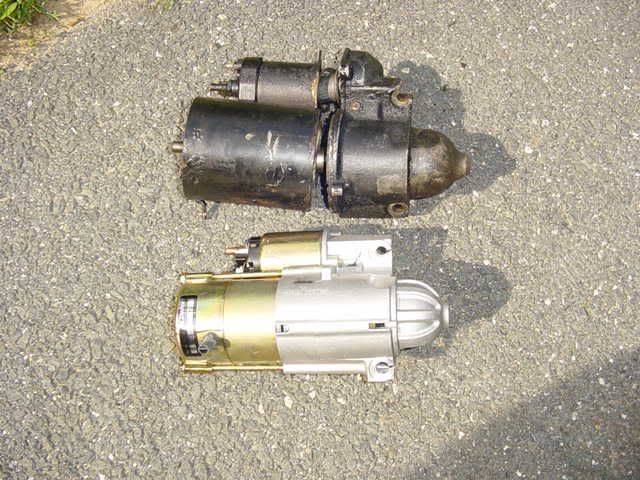

Here'* the L27 on the top and the reman Delco unit on the bottom. As described above, there is a noticable size difference. The reman unit reminds me of a large caliber canon shell. It'* pretty cool looking. The reman starter was $172 plus tax.
randman1 is offline   Reply With Quote
Old 07-21-2005, 07:37 PM   #25
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

autozone lists 2 different part numbers for the two motors.
toastedoats is offline   Reply With Quote
Old 07-21-2005, 08:44 PM   #26
Senior Member
True Car Nut

Join Date: Jan 2004
Location: Chicago,IL MWBF '04 SURVIVOR MWBF '05 SURVIVOR Napa Manager
Posts: 3,955
Thanks: 0
Thanked 0 Times in 0 Posts
Kennginn is on a distinguished road
Default

Quote:
Originally Posted by randman1
Well, so much for using my parts resources. I pulled the starter from the parts engine this afternoon but I found that housing was broken around one of the bolt holes. I figured that I would just chance the solenoid but found the starter currently on the 93 to have a crack in the housing. So... it was off to the parts store. Here are my findings for the different starters:



The starter on top is from the L27 and the one on the bottom is off of the L67. Other than color, they look the same to me. I couldn't find any part numbers on either so I can't tell if they are replacements or OEM equip.



Here'* the L27 on the top and the reman Delco unit on the bottom. As described above, there is a noticable size difference. The reman unit reminds me of a large caliber canon shell. It'* pretty cool looking. The reman starter was $172 plus tax.
thats pretty expensive for a starter there shouldve came and talked to me wouldve got u a discount for ur starter
Kennginn is offline   Reply With Quote
Old 07-22-2005, 07:59 AM   #27
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Yea Kenn, that'* what I thought too. I did call Napa first and they quoted me over $200 for something and didn't even have it in stock. I already had it out of the car and needed it for work so I got the other. It'* a Delco unit with a lifetime warranty though.

The $69 for the one part number you pulled up seems way too low for a starter. It'* been a while since I had to change one though.
randman1 is offline   Reply With Quote
Old 07-22-2005, 11:49 AM   #28
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Randman1, The starter that you purchased is a gear reduced starter...

Top starter is a Direcr drive starter, and the new unit is the gear reduced

The majority of the L67'd used the Gear reduced starter, as well as a lot of the L27 Park Avenues... Other models used the direct drive starters
Name:  DSC01819.jpg
Views: 10
Size:  54.6 KB

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 07-22-2005, 11:52 AM   #29
Senior Member
True Car Nut

Join Date: Jan 2004
Location: Chicago,IL MWBF '04 SURVIVOR MWBF '05 SURVIVOR Napa Manager
Posts: 3,955
Thanks: 0
Thanked 0 Times in 0 Posts
Kennginn is on a distinguished road
Default

Quote:
Originally Posted by jr's3800
Randman1, The starter that you purchased is a gear reduced starter...

Top starter is a Direcr drive starter, and the new unit is the gear reduced

The majority of the L67'd used the Gear reduced starter, as well as a lot of the L27 Park Avenues... Other models used the direct drive starters
now thats a good eye
Kennginn is offline   Reply With Quote
Old 08-03-2005, 05:23 PM   #30
Junior Member

Join Date: Jun 2005
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
S/CHappy is on a distinguished road
Default

I'm having the same problem on a 92 SSEi and I went to the parts store in our town, the guy checked the parts numbers and there is two starters but the solenoid is the same on but, the only differance we can find is the SSEi starter is 1.6 KW PERMANENT MAGNET GEAR REDUCTION and the other one is 1.2KW
S/CHappy is offline   Reply With Quote
