S1 power steering pump - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 02-26-2008, 07:05 PM   #1
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Jul 2004
Location: Canada, Ontario
Posts: 1,090
Thanks: 0
Thanked 0 Times in 0 Posts
tripscarcare95 is on a distinguished road
Default S1 power steering pump

Anyone know where I can find one, I cant find one here in Canada, any links would be great,

Series 1
supercharged

thanks everyone
tripscarcare95 is offline   Reply With Quote
Old 02-26-2008, 10:16 PM   #2
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Jul 2004
Location: Canada, Ontario
Posts: 1,090
Thanks: 0
Thanked 0 Times in 0 Posts
tripscarcare95 is on a distinguished road
Default

ttt
tripscarcare95 is offline   Reply With Quote
Old 02-26-2008, 11:28 PM   #3
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Rock Auto.

They will even sell you a new connector for it. When you select your car (95 SSE, but supercharged) on that site, they don't list RPO code T2V, but if you look at the very bottom of the power steering pump options, you'll see A-1 Cardone part number 2043832V1. Look at the pic, and you'll clearly see the jack for the plug from the PCM. Pump is 221, core is 100.

How important is T2V to you?
willwren is offline   Reply With Quote
Old 02-27-2008, 09:57 AM   #4
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Jul 2004
Location: Canada, Ontario
Posts: 1,090
Thanks: 0
Thanked 0 Times in 0 Posts
tripscarcare95 is on a distinguished road
Default

Id like to upgrade my rack and pinion to the FE2, that will go in the same time as the pump, is the T2V the one I need.

I dont know if I need a pump with resevoir or witouht, other than the remote one is the unit sitting on top of the throttle body?

thanks
tripscarcare95 is offline   Reply With Quote
Old 02-27-2008, 10:55 AM   #5
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

It'* not really an 'FE2' rack. My 95 has FE2, but doesn't have the 'sport' rack the SSEi does.

When did your OEM rack get changed? SSEi'* got the sport rack by default.
If you didn't have T2V from the factory (check your RPO'*) you'll have some other work to do. It'* not plug and play.

T2V and the rack are not associated. Both of my cars have T2V. Only one has the sport rack though. Even though BOTH have FE2.

You need the pump with no reservior and the T2V connector if that'* what your RPO codes say.
willwren is offline   Reply With Quote
Old 02-27-2008, 12:03 PM   #6
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Jul 2004
Location: Canada, Ontario
Posts: 1,090
Thanks: 0
Thanked 0 Times in 0 Posts
tripscarcare95 is on a distinguished road
Default

So Im getting a little off topic here,

What do I need? Id like to replace the power steering pump beacuse its growling really loud, and my rack and pinion is leaking.

I have a 1995 ssei, What parts should I get to do a direct replacement, for the rack and power steering pump,

Im kind of iffy about taking the car really anywhere (dealer) to get this stuff replaced after my ordeal with a so called bad supercharger, when really the entire time its was the water pump, at least here you all have lots of knowledge on these cars

thanks Mr Wren
tripscarcare95 is offline   Reply With Quote
Old 02-27-2008, 12:59 PM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

We need your RPO codes. You SHOULD have the sport rack and the T2V pump (does your current pump have a connector?).

The following is what you need IF you already have the sport rack or WANT it, AND if you have T2V on your RPO label:

Quote:
A-1 CARDONE Part # 2042832V1 {[Power Steering Pump] w/Reservoir; Reman.}
(Supplied w/EVO Component); Renumbered From 20-42832E1
* Non-stock item--shipping delayed up to 2 business days
See the connector on the left side? That'* the givaway. Pump is $121.79 plus a $100 core charge at Rock Auto. Don't forget our 5% club discount.

Rack:
Quote:
ACDELCO Part # 3616230 {#88990985}
GEAR,STRG (REMAN-RACK & PINION-POWER COMPLETE) F41 OR FE2 SPORTS SUSP.
* Non-stock item--shipping delayed up to 12 business days
$159.79 plus a $77.00 core at Rock Auto, not including our discount.

Performance costs alot more. This is twice the price of a 'soft-ride' rack.

All this information is clearly called out on Rock Auto'* website.
willwren is offline   Reply With Quote
Old 02-27-2008, 03:26 PM   #8
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Jul 2004
Location: Canada, Ontario
Posts: 1,090
Thanks: 0
Thanked 0 Times in 0 Posts
tripscarcare95 is on a distinguished road
Default

Thanks very much, Im glad I am a member here
tripscarcare95 is offline   Reply With Quote
Old 02-27-2008, 03:42 PM   #9
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Jul 2004
Location: Canada, Ontario
Posts: 1,090
Thanks: 0
Thanked 0 Times in 0 Posts
tripscarcare95 is on a distinguished road
Default

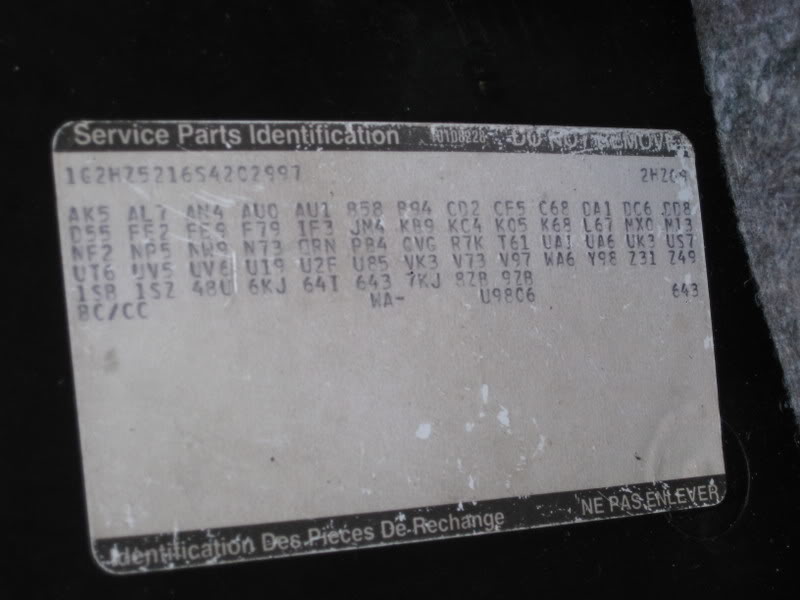

Heres the rpo, I didnt see any T2V, I see the FE2, What can you see, hopefully the pic is clear enough

Name:  IMG_0480.jpg
Views: 2
Size:  49.8 KB
tripscarcare95 is offline   Reply With Quote
Old 02-27-2008, 04:06 PM   #10
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

T2V may be part of another option package. I'm surprised it'* not listed seperately though. I need to check my RPO'* again tonight. I know the SLE is listed, need to see if the SSEi lists it seperately.

Does your PS pump have a connector on it? You should be able to FEEL it by sticking your hand down by the #2 plug, and moving to the underside of the pump from there. Need to verify that.
willwren is offline   Reply With Quote
