Hope the magnet didn't fall off the cam gear.
Mike is offline   Reply With Quote
Old 11-03-2014, 08:32 PM   #12
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2010
Posts: 87
Thanks: 0
Thanked 0 Times in 0 Posts
FordMan77 is on a distinguished road
Default

Well, I managed to get the cam sensor out and it'* covered in junk. Grease and some coolant from the elbow letting go recently. Seems the o-ring wasn't sealing very well anymore. I cleaned out the hole where the sensor sits and I felt something in there that I assume is the cam magnet. Never really looked at one before. Nothing fell out of the hole and nothing was attached to the cam sensor when I removed it.
FordMan77 is offline   Reply With Quote
Old 11-04-2014, 08:26 AM   #13
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

codes gone? clean the plug?
jwfirebird is offline   Reply With Quote
Old 11-04-2014, 08:55 AM   #14
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Cam magnet doesn't attach to the sensor, but the cam gear itself.
Mike is offline   Reply With Quote
Old 11-04-2014, 07:26 PM   #15
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2010
Posts: 87
Thanks: 0
Thanked 0 Times in 0 Posts
FordMan77 is on a distinguished road
Default

Used my inspection mirror and turned the crank by hand and visually verified that the cam magnet is still on the gear. Cleaned it off as well. Installed new sensor, cleaned the plug, cleared codes with reader.

Fired up and let it run. CEL came back on so I scanned it while it was running. Same code for a failed cam sensor. I visually checked as much of the wire harness that I could all the way from the sensor to the ICM and all looks well. Is there a way to use a dmm on the plug to the sensor to figure out if the ECU is getting the signal? Starting to think bad ECU since I know this year is known for it.
FordMan77 is offline   Reply With Quote
Old 11-04-2014, 08:49 PM   #16
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

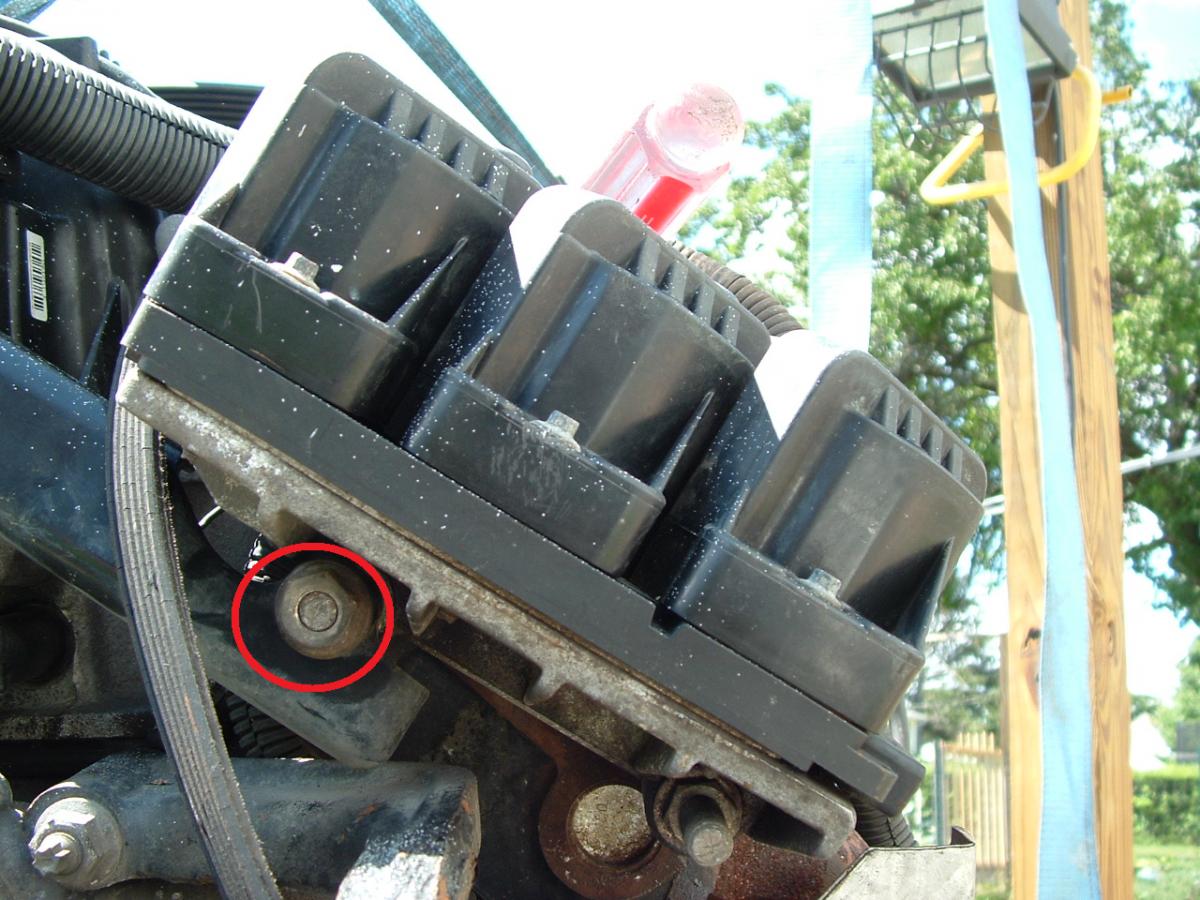

Just for giggles, check and make sure the ground wire is still attached to one of the ICM bracket bolts. It should be on the bolt circled in red tucked in on the backside of the bracket.

Attached Thumbnails
running bad under load-icm_ground_wire.jpg
Mike is offline   Reply With Quote
Old 11-04-2014, 10:50 PM   #17
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2010
Posts: 87
Thanks: 0
Thanked 0 Times in 0 Posts
FordMan77 is on a distinguished road
Default

Just took a look at the ground. It is right behind the bracket as it should be and the wire is tight.

I've also done the following:

Probed wire "J" at the ICM for Cam signal test- DMM shows 6.53V and then as the magnet passed by dropped to 00.02V.

Probed wire "N" from the ICM to test for power to the sensor. Shows 10.67V.

Probed wire "M" from the ICM to test for ground to the sensor. Showed 12.02V.

The wire letters are from a how-to I found online.
FordMan77 is offline   Reply With Quote
Old 11-05-2014, 09:15 AM   #18
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

The crankshaft sensor is also tied into 2 of the cam shaft wires. Possibly skewing your results.

Mike is offline   Reply With Quote
Old 11-05-2014, 09:32 AM   #19
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

his reading sound good to the ICM. i would see if you have it out to the pcm. should be getting that same result on F, and looks like the black wire to connector c1 pin 5 on the pcm
jwfirebird is offline   Reply With Quote
Old 11-05-2014, 09:35 PM   #20
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2010
Posts: 87
Thanks: 0
Thanked 0 Times in 0 Posts
FordMan77 is on a distinguished road
Default

Thanks JW! I will check out from the ICM to the PCM. And great diagram Mike, I will add that to my collection for this car.
FordMan77 is offline   Reply With Quote
