Default Replacing the transmission, a few questions

Ok, so I'm finally getting around to putting a junkyard tranny in my dad'* 99 Bonneville. I've been following the haynes manual step by step. I've got the CV shafts out, all the mounts removed, the subframe taken out, the drive to converter bolts are out. But these last two trans to engine bolts are a major pain. I can see the one that is underneath the exhaust manifold on the back side of the engine. Is there any way to remove this without pulling the manifold? Haynes didn't say anything about pulling the manifold. And where is the other under side trans to engine bolt. Is it by the starter? Because I see no other place for it to be. Anyone who has performed this task before if you could give me some tips that would be great.

Oh, and this thing made it to 178,000 before losing the tranny. Not bad at all for a FWD! I'm quite impressed!
Sevensecondsuv is offline   Reply With Quote
Old 05-25-2007, 09:54 AM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The backwards bolt is gotten by removing the passenger side tire and obtaining about 3-4 feet of extension for the ratchet. It'* an 18mm just like the other 4.

The others are located if you are on the driver side..looking at a clock.. 9, 10:30, 11 and 1.

The 9 actually passes through the front transmission mount and into the engine block. Remember to support the motor, since there is nothing holding it once the transmission is out except the torque axis mount at the passenger side.
BillBoost37 is offline   Reply With Quote
Old 05-25-2007, 10:05 AM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Mar 2006
Location: Chana, IL
Posts: 13
Thanks: 0
Thanked 0 Times in 0 Posts
Sevensecondsuv is on a distinguished road
Default

OK. I've already got the other 4. I thought there were six alltogether. I was thinking about trying the 4 foot extension idea, but I'm going to need someone to help me with that part. Hopefully someone else will be around tonight.

One thing that I found really annoying is that GM intermixed standard and metric bolts and nuts. I'm all for metric fasteners, but it'* annoying having to have 2 sets of wrenches and sockets cluttering up the workspace. There'* nothing like a bolt with a 1/2" head and a 15mm nut !!!! (one of the bolts on the front right subframe mount to frame)

I'll update as I make progess. Thanks
Sevensecondsuv is offline   Reply With Quote
Old 05-25-2007, 10:23 AM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The only standard I'm aware of is the lower intake manifold. Technically the bolts are 3/8 not 10mm...GM still called them 10'* though.
BillBoost37 is offline   Reply With Quote
Old 05-25-2007, 10:41 PM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Mar 2006
Location: Chana, IL
Posts: 13
Thanks: 0
Thanked 0 Times in 0 Posts
Sevensecondsuv is on a distinguished road
Default

I got the trans out!

The only issue I had was that the engine almost came with it. I had a jack with a large board underneath the oil pan. I also had another jack underneath the transmission. I got the tranny loose and since I didn't care about the old trans, I just yanked the jack out from underneath it. The trans fell just as I planned and all was fine. But then in my hurry to get the trans out from under the car, I knocked the jack out from under the engine. The engine tilted to one side pretty bad but the only things damaged were the oil filter, and some electrical sensor mounted next to the oil filter. Hopefully it isn't too expensive to replace. Anyone know what this sensor is called?

Also, I know there are 2 different "option" codes for the trans, MN3 and M15. The trans doesn't list either on the ID tag. I know there is a bunch of codes on a sticker underneath the trunk floor panel, and I think I see M15 on there but how can I know for sure. Is there a specific row and column intersection on this list of codes that indicates the tranny code?
Sevensecondsuv is offline   Reply With Quote
Old 05-25-2007, 10:59 PM   #6
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

That would be your oil pressure sending unit. About $35. The M15 code is an RPO designation. Look in Techinfo to deciper RPO codes. The tag on your trans is the one you really need.

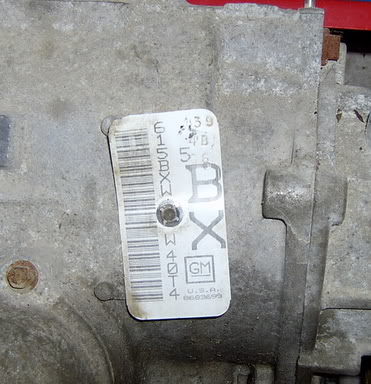

Name:  bxw.jpg
Views: 0
Size:  38.9 KB

Quote:
From an earlier post:
Check the ID tag on your trans. It will have a bunch of numbers on the left side arranged vertically. Mine reads (from top to bottom) 615BXW W40T4 On the right side of the tag will be two big characters, on mine: BX. The important characters to match for your car are: "5BXW" 5 is the model year, 1995, BX is the model of the transmission and W is the type. If you match those numbers, you should have no compatibility problems.

[edit: Your numbers will not be the same as mine as your trans is a different year and has a different gear ratio. There may also be differences for other trans-related features like traction control.]

Be careful! People may try to sell you a trans that does not match. It happened to me.

Also,

A quick way to learn what will swap and work OK is to do a search on Car-part.com and see what comes up.

Hope this helps.
bill buttermore is offline   Reply With Quote
Old 05-31-2007, 12:14 AM   #7
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Mar 2006
Location: Chana, IL
Posts: 13
Thanks: 0
Thanked 0 Times in 0 Posts
Sevensecondsuv is on a distinguished road
Default

Ok, I got the new trans from a local auto recycler. The 4 digit ID on the tags match exactly. It'* from another 99 bonneville, has 62,000 miles on it. I paid $400 for it with a 90 day warantee. Seems like a pretty good deal to me.

Anyways, while I have it out, I was thinking it would be a good idea to replace the front seal, driveshaft seals, and filter. Where is a good place to get all of these parts from? Will autozone or napa have them? Or is there a good online site to get them from?

Also, what tranny fluid do you guys recomend? Regular dexron? Synthetic? Synthetic blend? How about mercon V (I have lots of that sitting around, come to think of it, it might carry a dexron label too)
Sevensecondsuv is offline   Reply With Quote
Old 05-31-2007, 12:16 AM   #8
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Napa should have your seals.

Autozone doesn't know what seals are, and Duralast sucks.

Don't use synthetic. It may be too slick, and cause excessive slip in the clutches and bands.

Any Dexron or Dexron compatible is ideal.
willwren is offline   Reply With Quote
Old 05-31-2007, 08:00 AM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

If the seals didn't show signs of leaking... I wouldn't replace them. No need to spend more than you need to. At that mileage..the seals should be good.

Autozone "Coastal" trans fluid is a great fluid for the price.
BillBoost37 is offline   Reply With Quote
Old 05-31-2007, 04:26 PM   #10
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
If the seals didn't show signs of leaking... I wouldn't replace them. No need to spend more than you need to. At that mileage..the seals should be good.

Autozone "Coastal" trans fluid is a great fluid for the price.
Agreed... Get the Coastal Dex III...
