Replacing O2 Sensor - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 01-23-2008, 09:48 AM   #1
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2008
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
christie0278 is on a distinguished road
Default Replacing O2 Sensor

Is there anyone who can give me step by step instructions for changing my O2 sensor. I am not very mechanical, but I try to do anything I possibly can myself. If it is too complicated I will have to take it to a garage, but I would rather save money if I can.

Thanks!
christie0278 is offline   Reply With Quote
Old 01-23-2008, 10:01 AM   #2
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

locate the o2 sensor on the rear exhaust manifold.
if you are trying to save the old sensor, rent this kit from your local parts store
if you don't care about the sensor, just cut the wire off and use a deepwell socket to remove it.
it will be easiest to remove if you have the exhaust pipe warmed up, but not so hot you can't touch it.
if it doesn't want to break loose, spray some penetrating oil on it.
installing the new sensor is just backwards.
apply some anti-seize on the threads before installing it (should be included) and tighten with the special socket or open-end wrench.
harofreak00 is offline   Reply With Quote
Old 01-23-2008, 10:09 AM   #3
reb
Member
Posts like a V-Tak

Join Date: Jan 2008
Location: Long Island, NY
Posts: 79
Thanks: 0
Thanked 0 Times in 0 Posts
reb is on a distinguished road
Default

Please disconnect the connector before removing the sensor or cutting wires.
reb is offline   Reply With Quote
Old 01-23-2008, 10:09 AM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Antiseze should be on the threads already. Use ONLY an AC Delco sensor, and you can use a crescent (adjustable) wrench if you want.
willwren is offline   Reply With Quote
Old 01-23-2008, 11:25 AM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2008
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
christie0278 is on a distinguished road
Default

I thought the O2 sensor was under the hood...at least that'* what the guy at the parts store told me. Thank you all for your help!
christie0278 is offline   Reply With Quote
Old 01-23-2008, 11:44 AM   #6
Senior Member
Posts like a Northstar

Join Date: Jul 2006
Location: Waukesha, Wisconsin
Posts: 547
Thanks: 0
Thanked 0 Times in 0 Posts
Blownville is on a distinguished road
Default

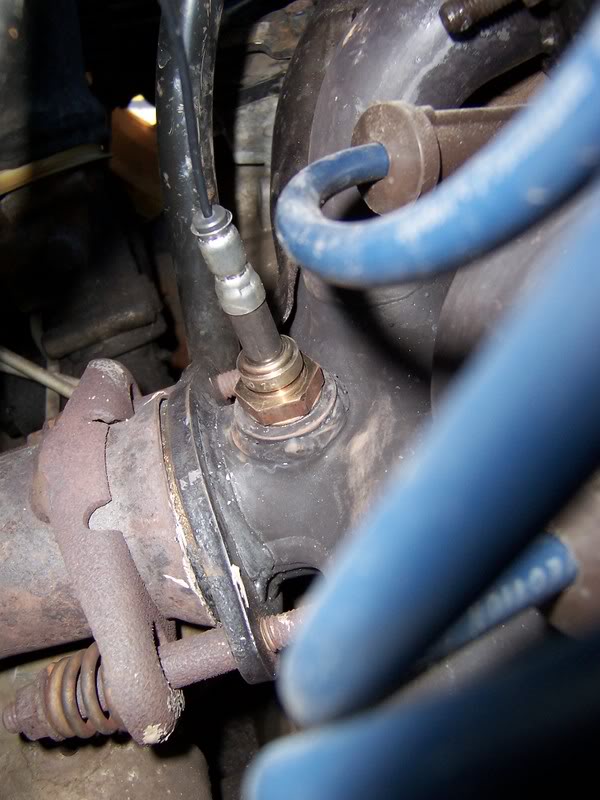

Here is a pic of the O2 on my 93. Your'* will be in the same location. This pic is of the rear exhaust manifold and down pipe by the firewall.

Name:  BonnevilleDPPics010.jpg
Views: 3
Size:  73.5 KB
Blownville is offline   Reply With Quote
Old 01-23-2008, 01:23 PM   #7
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2008
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
christie0278 is on a distinguished road
Default

thank you, the picture helps alot. I am hoping that I can find someone to help me do it. I would hate to pay a mechanic again. I think i've put about $2100.00 in this car in the past 6 months!
christie0278 is offline   Reply With Quote
Old 01-23-2008, 02:05 PM   #8
Senior Member
Posts like a Turbo

Join Date: Mar 2006
Location: NY
Posts: 400
Thanks: 0
Thanked 0 Times in 0 Posts
Buickman104 is on a distinguished road
Default

Where are you located? If there is a member nearby that can help I am sure he/she would be happy to help a fellow member.
Buickman104 is offline   Reply With Quote
Old 01-23-2008, 02:21 PM   #9
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2008
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
christie0278 is on a distinguished road
Default

I live in Bath, NY and I work in Naples, NY
christie0278 is offline   Reply With Quote
Old 01-24-2008, 11:36 AM   #10
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2008
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
christie0278 is on a distinguished road
Default

Does a bad O2 sensor have anything to do with why I used to get 28-29 MPG and now I am getting 22!!!!!!!!!!!!!!!!!!!!!!!!!!?
christie0278 is offline   Reply With Quote
