Replace pullies only or whole assemblies? - Page 2 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 06-13-2005, 11:25 AM   #11
Senior Member
Posts like a Camaro

Join Date: Dec 2003
Location: Massachusetts
Posts: 1,019
Thanks: 0
Thanked 0 Times in 0 Posts
CFoote is on a distinguished road
Default

Quote:
Originally Posted by BillBost37
All this extra time = more time for BEER.......

Notice he is taking pics as if it is in the car but he'* able to work on it easy because it'* out of the car.
What the heck are you doing up so early? Get back to bed!
CFoote is offline   Reply With Quote
Old 06-13-2005, 12:15 PM   #12
Senior Member
True Car Nut

Join Date: Apr 2004
Location: Three Oaks, Michigan
Posts: 4,879
Thanks: 0
Thanked 0 Times in 0 Posts
opensourceguy is on a distinguished road
Default

What about for me? I have an 18mm bolt, versus a torx head. Same **** for me, too? The bearings are shot on my idler, and I think I can cheap this one out, and if I can, I shall.



-justin
opensourceguy is offline   Reply With Quote
Old 06-13-2005, 12:56 PM   #13
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Open..should be the same. Follow what Randman said above as to which way to try turning. Don't be afraid to try the other way in case it'* a reverse thread or regular thread.

Foote...It'* vacation...I gotta get up and enjoying. Only sleep through the first few hours of work..not vacation.
BillBoost37 is offline   Reply With Quote
Old 06-13-2005, 02:04 PM   #14
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Justin, the LN3 pulley does appear to remove in much the same way as above without the need to remove the PS pump and TAM [Captian Obvious says so cause you don't have one]. But, I must warn you that I snapped the pulley and part of the tensioner arm off in an attempt to just remove the pulley. Oooops!

By looking at the backside, the threads appear to be reverse to both Bill and me but I did take a pic and will post it when I get home so you can take a look at it too.

Replacement of the pulleys is complete. The tensioner pulley was metal but the idler pulley continues to be a plastic one. They were just under $20 each when purchased at a local Delco distributor. I also replaced both belts and the T-stat while I was at it. What an easy job to do when the motor is on the floor but it would be substantially more time consuming if it were in the car. Like MOS says, make sure you have a big bag of curse words handy cause you'll need 'em.
randman1 is offline   Reply With Quote
Old 06-13-2005, 02:52 PM   #15
Senior Member
True Car Nut

Join Date: Apr 2004
Location: Three Oaks, Michigan
Posts: 4,879
Thanks: 0
Thanked 0 Times in 0 Posts
opensourceguy is on a distinguished road
Default

Well, turning the bolt counter-clockwise removes tension. I'll look in my FSM and see what it says. I just found out the bearings were shot last night, so I haven't done my research yet.


-justin
opensourceguy is offline   Reply With Quote
Old 06-13-2005, 03:07 PM   #16
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Quote:
Originally Posted by opensourceguy
Well, turning the bolt counter-clockwise removes tension. I'll look in my FSM and see what it says. I just found out the bearings were shot last night, so I haven't done my research yet.


-justin
Right. That'* why you would turn it clockwise to loosen. Reverse threads.
randman1 is offline   Reply With Quote
Old 06-13-2005, 05:10 PM   #17
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Here'* the pics:

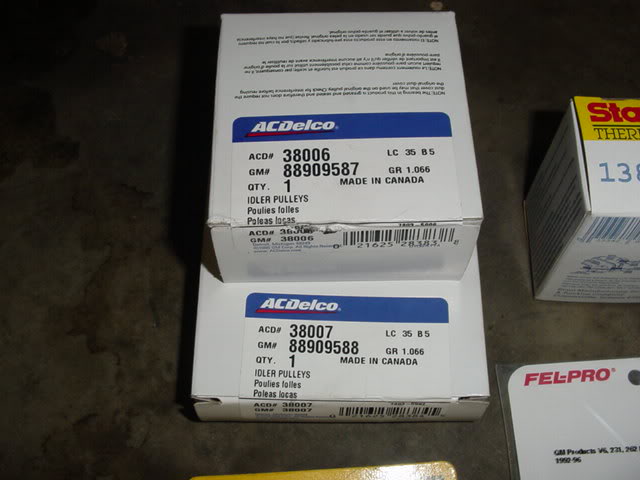

Part numbers for pulleys. SC tensioner pulley on top, SC idler on bottom
Name:  DSC01730.jpg
Views: 2
Size:  39.6 KB

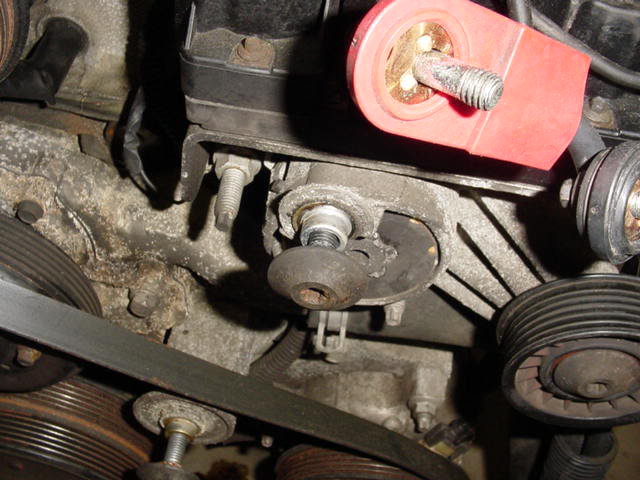

Tensioner pulley removed
Name:  DSC01731.jpg
Views: 2
Size:  53.5 KB

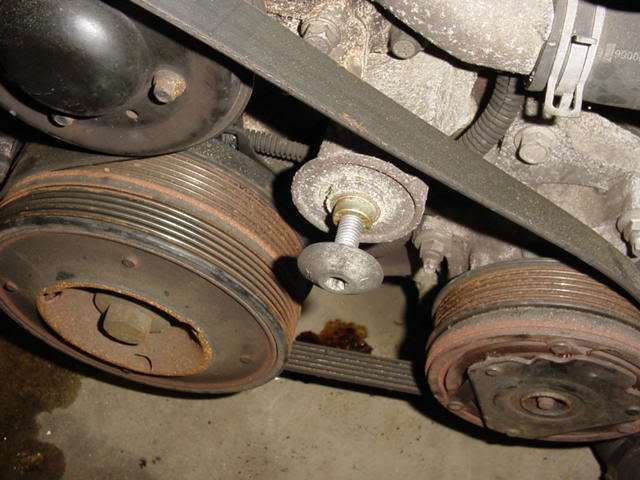

Idler pulley removed
Name:  DSC01732.jpg
Views: 2
Size:  53.5 KB

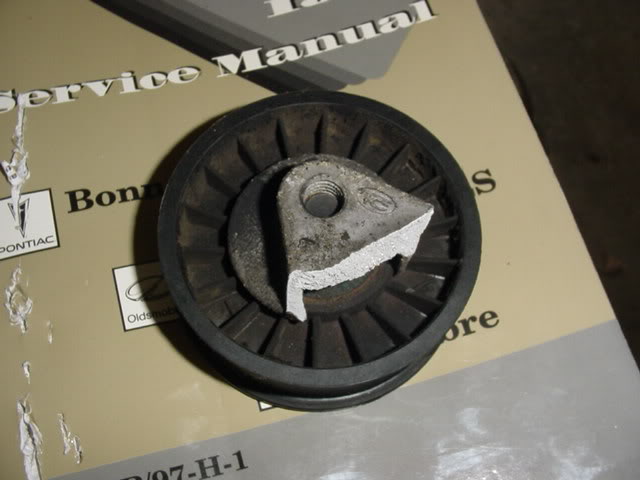

Busted LN3 tensioner arm
Name:  DSC01733.jpg
Views: 3
Size:  35.6 KB

Justin, I couldn't get a clear shot of the threads. it was either out of focus or you couldn't see the direction of the threads. Sorry.
randman1 is offline   Reply With Quote
Old 06-13-2005, 05:41 PM   #18
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

*Sorry this is off-topic* But, did you bolt the 90 torque-axis mount to the ser2 L67? If you did, could you take some pics of the area around the harmonic balancer and waterpump pullies?
95naSTA is offline   Reply With Quote
Old 06-13-2005, 06:32 PM   #19
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

The 90 doesn't have a torque axis mount but there are threaded holes in the unibody for one. The 97 mount will bolt right up to the 90 body.
randman1 is offline   Reply With Quote
Old 06-13-2005, 07:43 PM   #20
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

ohhh yeah i forgot.
Thanks.
95naSTA is offline   Reply With Quote
