Default Remember my steering issue?

Hard launch at Woodburn wrenched my steery thingy about 10 off center to the left, but the car tracked straight, and I have no slop or play.

I've been digging into the problem before investing a possible waste of money in another alignment, wanting to know WHAT it was and make sure it wouldn't happen again.

Guess what? I can CORRECT it by taking a BRUTALLY hard right turn. But a MILD left hand turn will send it back out.

The rack and tie-rods are tight. Ball joints have no play.

Take your guesses. I have mine already.
willwren is offline   Reply With Quote
Old 07-17-2007, 10:04 PM   #2
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I thought a possible loose subframe. Don did too. Because I reefed on my steering rack, tie-rods, and balljoints when I replaced my swaybar centerlink bushings recently. No movement.

I didn't dig any further at the time (a week ago) because I hadn't noticed yet that I could get it straight with a hard right turn (I'm a NASCAR fan, I turn left harder than right).

Found it today after work. I noticed a polished up bit of my steering rack on the passenger side just above the diff/dogbone mount:

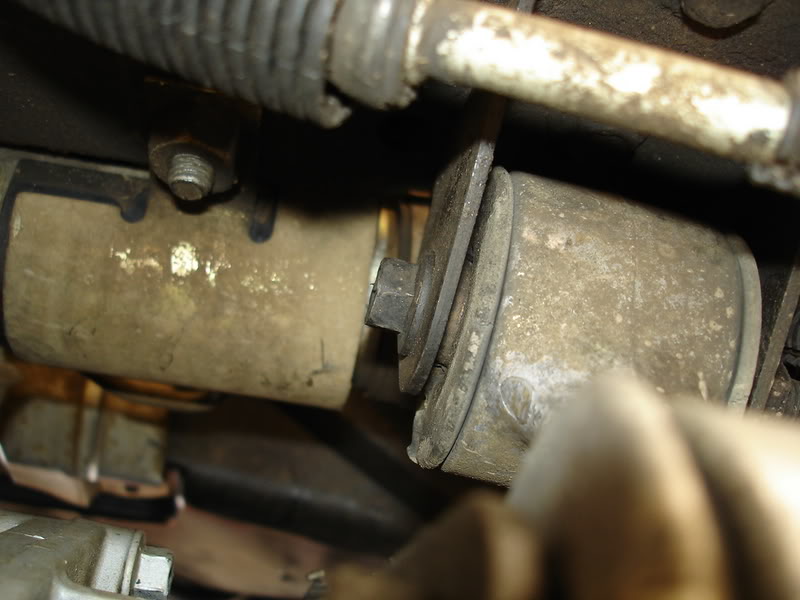

Name:  rack5.jpg
Views: 4
Size:  59.9 KB

Name:  rack4.jpg
Views: 5
Size:  51.1 KB

Name:  rack1.jpg
Views: 5
Size:  53.4 KB

But this rubber-lined clamp was tight.

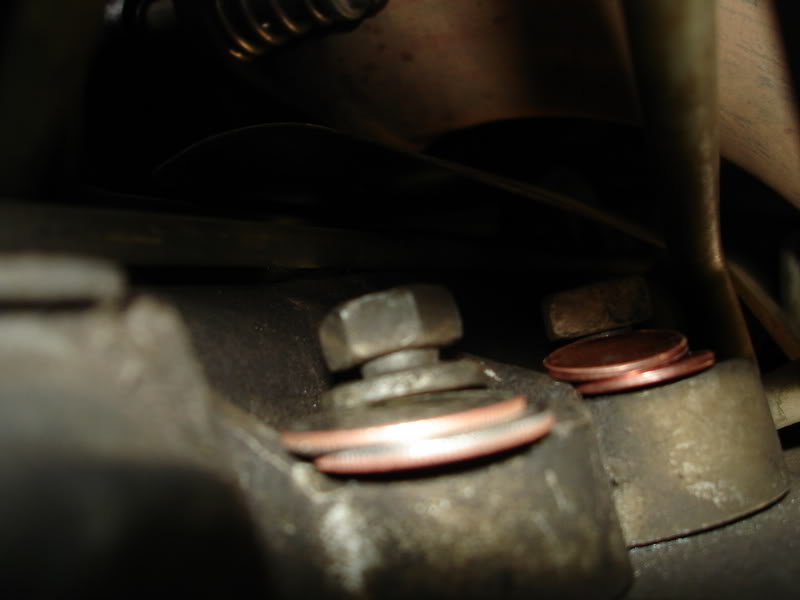

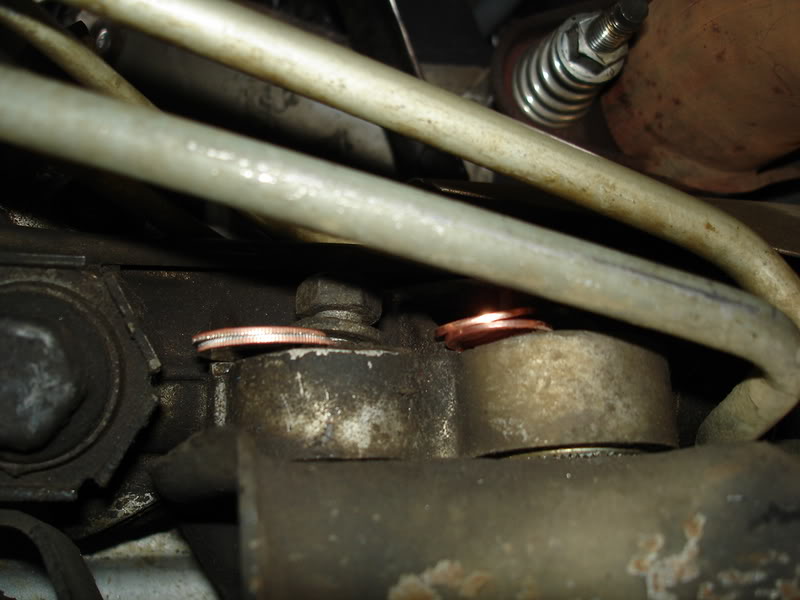

Off to the driver'* side where I found the loose bolts. How loose?
THIS loose:

Name:  rack2.jpg
Views: 4
Size:  32.9 KB

Name:  rack3.jpg
Views: 5
Size:  55.8 KB

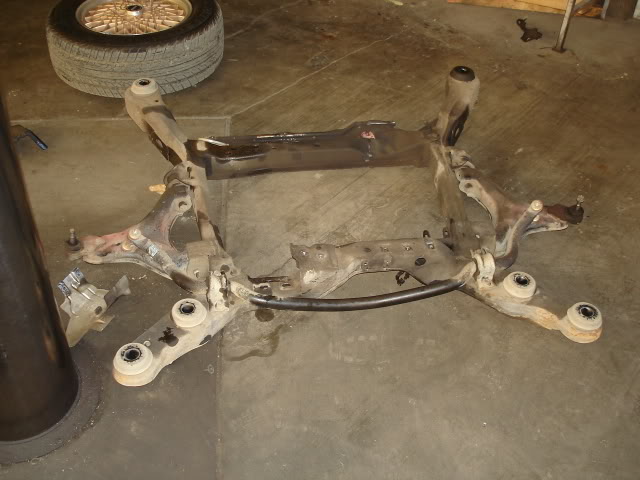

Off to the car again. Turning the wheel full right on the ramps, then re-tightening everything. Including the subframe. Why?

Because:

Name:  z17.jpg
Views: 6
Size:  50.9 KB

Goes to show you that even the best tranny builder around still hires monkeys for the manual labor. Keep in mind this didn't come on slowly. It wrenched out due to a very hard launch at woodburn last year, and steadily got worse.
willwren is offline   Reply With Quote
Old 07-17-2007, 10:57 PM   #3
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Hmmm.... He found a sheered bolt.... Side loaded and snapped... This is from the side load on the rack... He says that it had nothing to do with the trans shop... He'* under the car right now...

Look at the bolt where the quarters are is the bolt that snapped..... Its a clean sheer...

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 07-17-2007, 11:23 PM   #4
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Just air-chiseled the welded anchor nut off the bottom of the subframe bracket. Looking for a long bolt and nut in my box of parts.

I sheare the bolt like a pair of scissors.

Torque-steer, baby. I'm going to have to beef up my steering rack mounting all the way around if this is expected to hold up to this year'* power and the slicks.
willwren is offline   Reply With Quote
Old 07-18-2007, 12:51 AM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Funny how in spite of this problem, the SSEi was STILL much more responsive in steering, even though both cars have the same FE2 suspension and T2V. I still have the SE/SLE rack in the 95, and frankly, it SUCKS in comparison to sloppy loose SSEi rack.

The culprit:
Name:  rack6.jpg
Views: 5
Size:  49.9 KB

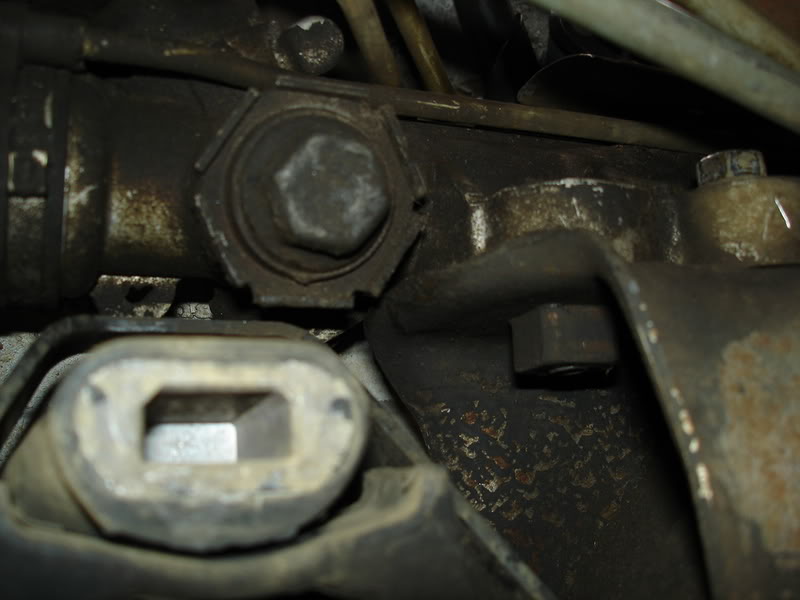

The target is the welded anchor nut (square):
Name:  rack7.jpg
Views: 4
Size:  48.7 KB

The weapon was an air chisel.

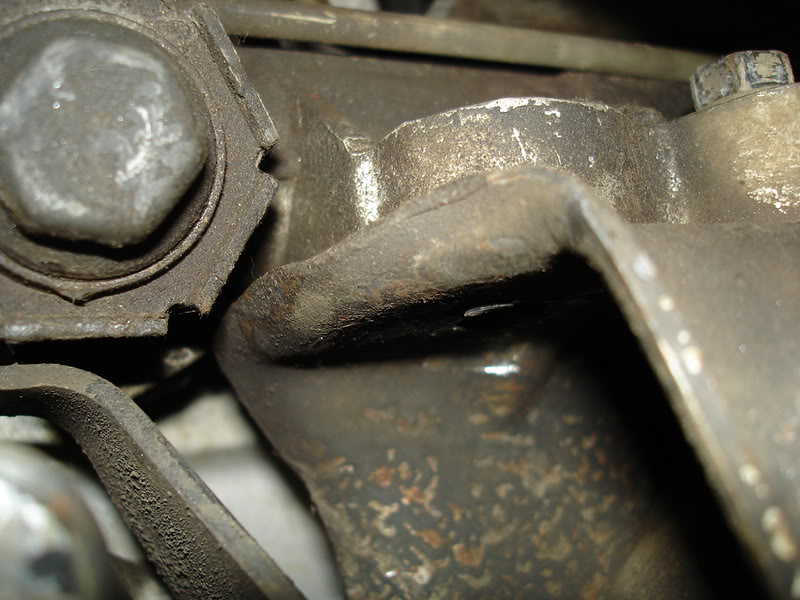

The result:
Name:  rack8.jpg
Views: 4
Size:  81.9 KB
there was BARELY enough room to do this.

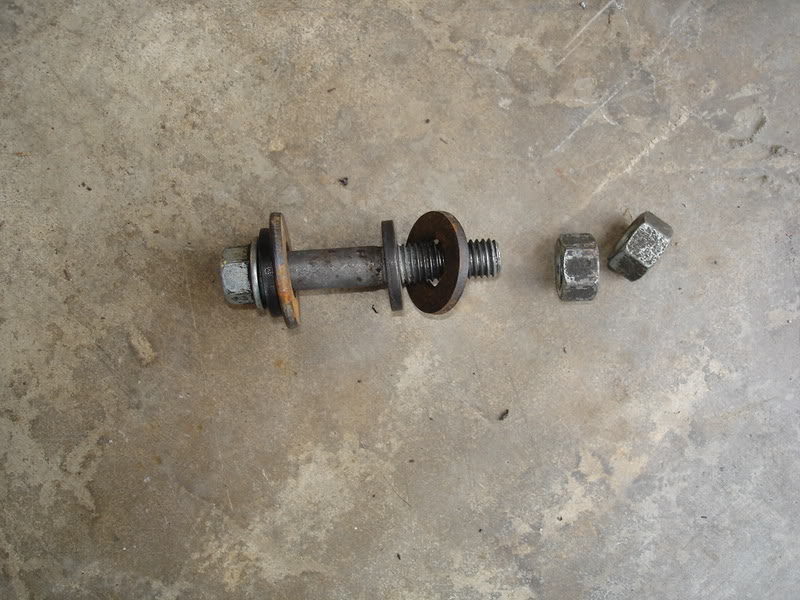

The solution is a SOFTER bolt that can bend and flex somewhat, but harder, larger washers to distribute the load on the rack and subframe better. Why? The steering rack housing is aluminum. A harder bolt may cause the RACK to break next time:
Name:  rack9.jpg
Views: 4
Size:  98.3 KB

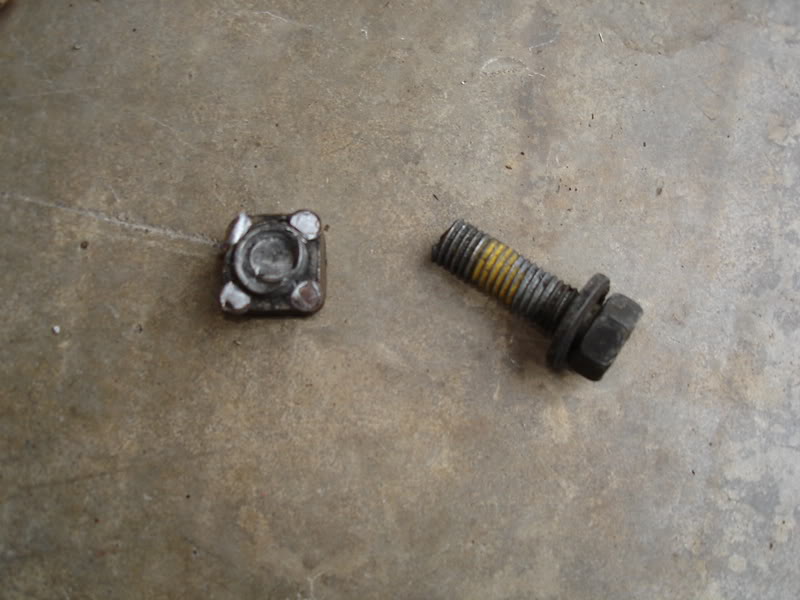

A view of the nasty little bastard again:
Name:  rack10.jpg
Views: 6
Size:  61.7 KB

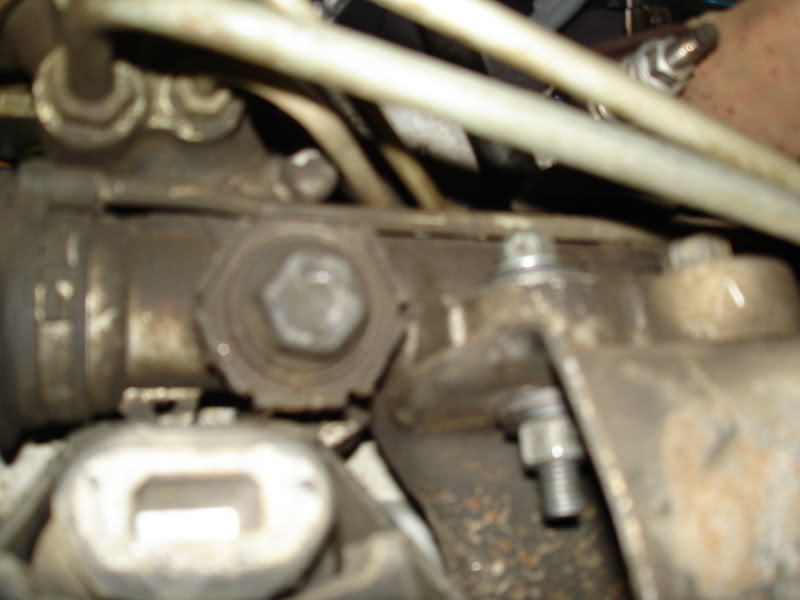

Installed the new bolt (another nut was installed right after this:
Name:  rack11.jpg
Views: 4
Size:  44.2 KB

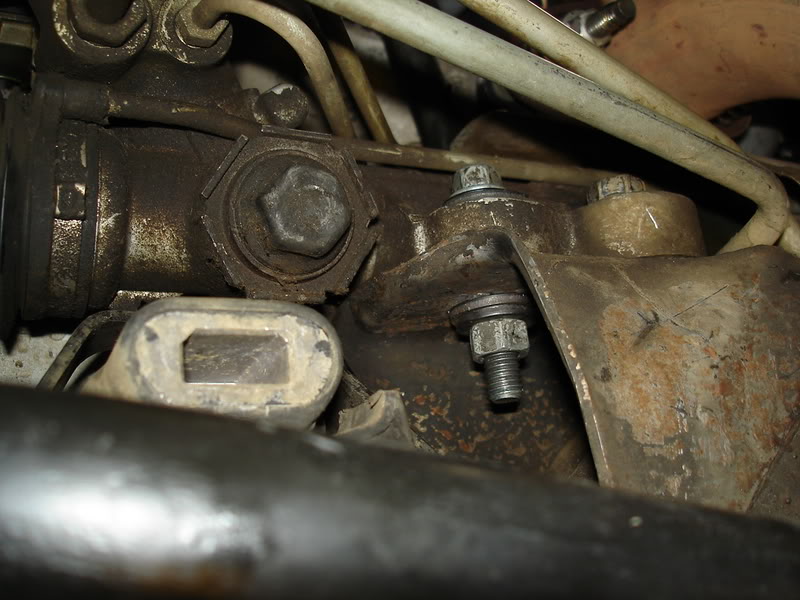

Name:  rack12.jpg
Views: 5
Size:  80.9 KB
willwren is offline   Reply With Quote
Old 07-18-2007, 12:54 AM   #6
Senior Member
Posts like a Corvette

Join Date: Feb 2007
Location: Sanford Michigan
Posts: 1,200
Thanks: 0
Thanked 0 Times in 0 Posts
crash93ssei is on a distinguished road
Default

whoo hoo, now THATS POWER baby!!!!!!!!!! Good thing is was caught before it caused any serious damage, or worse yet, an accident.


I always notice that your cars are some of the cleanest here, so are you plannig any cleaning and painting of the subframe while it is out?

EDIT: ( you posted the last pics while I was posting ) What grade bolt was in there to begin with, and what grade did you replace it with?
crash93ssei is offline   Reply With Quote
Old 07-18-2007, 01:06 AM   #7
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Grade 8 was in. Grade 6 is in now. I want the bolt to break before the rack.

Just got off the phone with SSEiMatt93. He and Joel (Slayer636) will be here Sunday. We'll rig some safety straps to the rack so if it shears another bolt, I won't lose the rack at the track and will still be able to limp home.

With the added power from last year, and the extra traction of the slicks, the hammer job on these bolts will be at least 50% greater this year.
willwren is offline   Reply With Quote
Old 07-18-2007, 01:12 AM   #8
Senior Member
True Car Nut

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

I suggested Duct tape on the phone, but Since Bill isn't from Alberta, he did not take the bait, oh well
My 93 always had more Torque steer, bottom end grunt baby
SSEimatt93 is offline   Reply With Quote
Old 07-18-2007, 01:17 AM   #9
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

The primary difference of the S1 compared to the S2 is where the torque peak is delivered. It'* significantly lower in the rpm band on the S1, so you hammer things like this worse, and the torque-steer is worse. Then you add torque.......

Lesson learned, and preventive measures are being planned......at least enough to prevent going into the wall at the dragstrip for now. The subframe will be dropped over the winter, and better clamps will be put in place for next year.

If the car survives this year.
willwren is offline   Reply With Quote
Old 07-18-2007, 01:50 AM   #10
Senior Member
True Car Nut

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

Hhmmm i wonder if thats the knocking im getting

only seems to do it when im turning or something...

im going to check that out
