Default power steering resivour location

Where is the ps resivour location on a 95 bonneville? I can't seem to find it.

Thanks
primetime is offline   Reply With Quote
Old 08-23-2006, 10:36 AM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Depends on your trim level. If you're supercharged, it'* above and behind the throttle body. If you're not, it'* in the power steering pump located to the lower rear of the belt path near the firewall on the passenger side.

Can you put your year and trim level in your signature?
willwren is offline   Reply With Quote
Old 08-23-2006, 10:36 AM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Stand at the passenger side of the car looking at the belts. Now look toward the back of the car...nearly under the motor...and you'll see the power steering pump/res

Shake your head like the rest of us do..
BillBoost37 is offline   Reply With Quote
Old 08-24-2006, 11:53 AM   #4
Member
Posts like a V-Tak

Join Date: Apr 2006
Location: Waukesha, Wi
Posts: 57
Thanks: 0
Thanked 0 Times in 0 Posts
chzhead is on a distinguished road
Default

Don't feel too bad, I was stumped about this as well. I had to replace my cooler and could not locate it. It'* located below the alternator.

chzhead is offline   Reply With Quote
Old 08-24-2006, 04:04 PM   #5
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

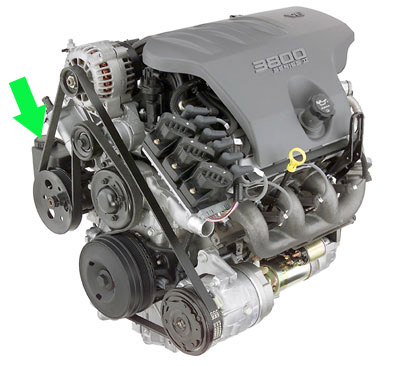

Power steering pump/reservoir on a non-supercharged Series II (L36)

Name:  ps95.jpg
Views: 35
Size:  53.5 KB
bill buttermore is offline   Reply With Quote
