Default Please name this hose

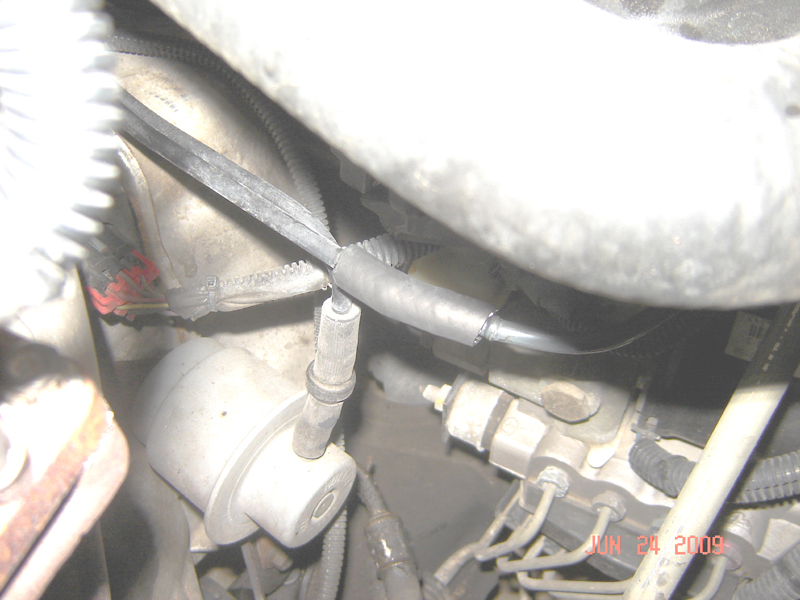

In the attached pic, can you tell me what the black tube that turns down into the silver cannister is - what it runs to & from?

I have a leak in the rubber hose connector before the cannister.
Attached Thumbnails
Please name this hose-below.jpg   Please name this hose-top.jpg
boa12 is offline   Reply With Quote
Old 06-26-2009, 01:26 PM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The small canister it runs into is the vacuum modulator for the transmission. The hose is a vacuum hose.
BillBoost37 is offline   Reply With Quote
Old 06-26-2009, 01:34 PM   #3
Okie Hokie
Posts like a Camaro

tlsheff's Avatar

Join Date: Dec 2008
Location: Durant, Ok 74701
Posts: 1,107
Thanks: 0
Thanked 0 Times in 0 Posts
tlsheff is on a distinguished road
Default

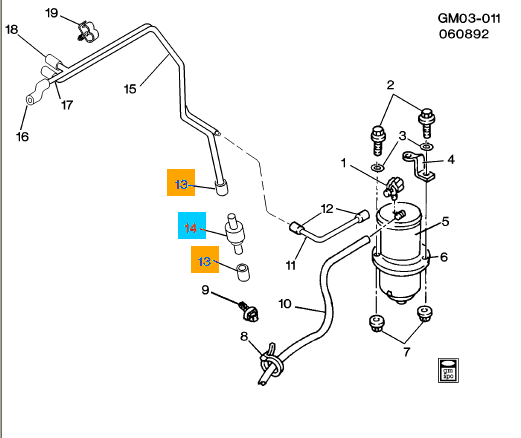

I believe its a Transmission Vacuum Mod Pipe Orafice

part # 10207729 ... Cost about $17.20 +tax from the dealer

#14 In the Picture
Attached Thumbnails
Please name this hose-1.png
tlsheff is offline   Reply With Quote
Old 06-26-2009, 01:37 PM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: Mar 2009
Posts: 54
Thanks: 0
Thanked 0 Times in 0 Posts
boa12 is on a distinguished road
Default

thanks, bill. so both of those black tubes/hose are for the tranny?

if so, that definitely explains why the car'* been acting up. both of those hose connectors got broke when the shop put in the new rebuilt SC. you can see in the bottom pic where the other was repaired.

right now the car drives like it wants to quit rolling & stop (with that other still leaking).
boa12 is offline   Reply With Quote
Old 06-26-2009, 01:45 PM   #5
Member
Posts like a V-Tak
Thread Starter

Join Date: Mar 2009
Posts: 54
Thanks: 0
Thanked 0 Times in 0 Posts
boa12 is on a distinguished road
Default

& thank you, okie. that diagram was just what I was looking for as I was going to the dealer today to find that piece - the rubber connector (orifice).

I guess there'* no premade connector for the other tube (shift modulator) where it broke & they reconnected w/ a cut piece of hose. have to just use cut piece of hose?
boa12 is offline   Reply With Quote
Old 06-26-2009, 01:50 PM   #6
Okie Hokie
Posts like a Camaro

tlsheff's Avatar

Join Date: Dec 2008
Location: Durant, Ok 74701
Posts: 1,107
Thanks: 0
Thanked 0 Times in 0 Posts
tlsheff is on a distinguished road
Default

Quote:
Originally Posted by boa12 View Post
I guess there'* no premade connector for the other tube (shift modulator) where it broke & they reconnected w/ a cut piece of hose. have to just use cut piece of hose?
Your welcome... I work at a dealership lol... so thats what they will see when they look it up lol

I cant find any manufactured piece so you will prolly just need a hose to match up... but make sure it fits tightly, you dont want a vac leak in ANY area
tlsheff is offline   Reply With Quote
Old 06-26-2009, 02:46 PM   #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Many have used regular vacuum hose to replace it. You know the $.05 a foot at the parts store stuff!

Okie...lol ... Okie... ROFLMAO.. that'* gonna stick to him now.
BillBoost37 is offline   Reply With Quote
Old 06-26-2009, 03:09 PM   #8
Member
Posts like a V-Tak
Thread Starter

Join Date: Mar 2009
Posts: 54
Thanks: 0
Thanked 0 Times in 0 Posts
boa12 is on a distinguished road
Default

I ordered the orifice from the Pontiac dealer - yep, exactly 17.20+Tax. nothing but the best for my Bonny.
thanks guys! lol
boa12 is offline   Reply With Quote
Old 06-26-2009, 03:16 PM   #9
Okie Hokie
Posts like a Camaro

tlsheff's Avatar

Join Date: Dec 2008
Location: Durant, Ok 74701
Posts: 1,107
Thanks: 0
Thanked 0 Times in 0 Posts
tlsheff is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37 View Post
Okie...lol ... Okie... ROFLMAO.. that'* gonna stick to him now.
Shamefully... i have to agree... you make the 3rd time in 2 days ive been referred to as "Okie"... not TL... not TLSheff... not even hey you... Okie lol

dh2


And your welcome Boa.... glad to help
tlsheff is offline   Reply With Quote
Old 06-26-2009, 05:00 PM   #10
Senior Member
Posts like a Corvette

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37 View Post
Many have used regular vacuum hose to replace it. You know the $.05 a foot at the parts store stuff!

Okie...lol ... Okie... ROFLMAO.. that'* gonna stick to him now.
That would be me. No hard lines any more well except to te Evp but that will be on the next paycheck
