Default PCV Valve

If someone would be so kind, could you pull oput your PCV Valve and snap a pic? I was checking mine out, and I didn't find the O Ring on it that I remember using when I replaced the original on my own.

The current one was installed by the dealership that replaced my upper intake, and I have a gut feeling they got in a hurry and did it wrong.

So, if someone could pop thiers out of a Series II, snap a quick pic of it, and either post it or send it by e-mail, I would be highly appreciative. All I have are the exploded views from my FSM'*...
MOS95B is offline   Reply With Quote
Old 01-27-2005, 06:46 PM   #2
Senior Member
True Car Nut

Join Date: May 2003
Posts: 7,262
Thanks: 0
Thanked 0 Times in 0 Posts
ssesc93 is on a distinguished road
Default

can someone do this on a Series I supercharged as well?
ssesc93 is offline   Reply With Quote
Old 01-27-2005, 07:57 PM   #3
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Glendale, AZ
Posts: 3,459
Thanks: 0
Thanked 1 Time in 1 Post
big_news_1 is on a distinguished road
Default

I can't get you at picture at the moment, but I can tell you that the dealership probably forgot the part. I had my PCV reassembled without a spring when I had a mechanic replace my UIM. I think it'* easy for people to gloss over things like that when it'* not their own car. Just my two cents.
big_news_1 is offline   Reply With Quote
Old 01-27-2005, 08:07 PM   #4
Senior Member
Certified Car Nut
Thread Starter

Join Date: Jul 2003
Location: Robbinsdale, MN
Posts: 15,408
Thanks: 0
Thanked 0 Times in 0 Posts
MOS95B is on a distinguished road
Default

Well, at least I don't feel quite as paranoid....
MOS95B is offline   Reply With Quote
Old 01-27-2005, 08:35 PM   #5
Senior Member
Posts like a Camaro

Join Date: Jul 2004
Location: Manassas, Virginia NOVA
Posts: 827
Thanks: 0
Thanked 0 Times in 0 Posts
CmptrNerd is on a distinguished road
Default

What happens when the spring is left out?
CmptrNerd is offline   Reply With Quote
Old 01-28-2005, 01:46 PM   #6
Senior Member
Certified Car Nut
Thread Starter

Join Date: Jul 2003
Location: Robbinsdale, MN
Posts: 15,408
Thanks: 0
Thanked 0 Times in 0 Posts
MOS95B is on a distinguished road
Default

BUMP - so this don't get lost.

It'* a simple request - I just wanna see what it'* supposed to look like so I can make sure it'* right or wrong right now...

Puh-Leeeeeease??
MOS95B is offline   Reply With Quote
Old 01-28-2005, 02:22 PM   #7
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Here'* what I found on my '95 SLE:

Name:  Im000433.jpg
Views: 46
Size:  21.2 KB

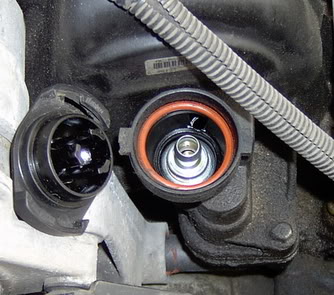

Name:  Im000431.jpg
Views: 55
Size:  31.0 KB
Nice red O-ring on top

Name:  Im000432.jpg
Views: 116
Size:  45.1 KB
Nothing underneath, no lower o-ring and no spring on top like on my '92 SSEi
bill buttermore is offline   Reply With Quote
Old 01-28-2005, 02:35 PM   #8
Senior Member
Certified Car Nut
Thread Starter

Join Date: Jul 2003
Location: Robbinsdale, MN
Posts: 15,408
Thanks: 0
Thanked 0 Times in 0 Posts
MOS95B is on a distinguished road
Default

Thanks Bill!! That'* good and bad news for me. Good, because it doesn't look like I need a new PCV Valve (although a Icoulda swore there was an O ring involved)

Bad, because it means I probably really need a new MAP Sensor and/or EGR Valve. I was hoping that if the PCV Valve were installed wrong, it was what was causing the MAP Sendor to throw a code, thereby causing the EGR to throw a code, as they are all inter-related....



damn cars......
MOS95B is offline   Reply With Quote
Old 01-28-2005, 03:52 PM   #9
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Thanks, Don. I didn't know if it was supposed to have a lower o-ring or not. Good to know. And a PCV O-ring won't be the only thing missing on this car. It'* gonna take a lot of patience to make this one right.
bill buttermore is offline   Reply With Quote
Old 01-28-2005, 04:00 PM   #10
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

[quote="MOS95B"]
Bad, because it means I probably really need a new MAP Sensor and/or EGR Valve. I was hoping that if the PCV Valve were installed wrong, it was what was causing the MAP Sendor to throw a code, thereby causing the EGR to throw a code, as they are all inter-related....[quote]

Well, I don't know. Mine was obviously missing that lower o-ring and it ran swell, set no codes, no apparent problems.......until yesterday, when the rear crank seal developed a leak and started pukin' oil out onto the flex plate. :( And to think, I just had the trans out and could have changed that rear seal for a few bucks and an hour of labor. Don't it just figure?
