Default Oil pressure guage acting funny

I'm on the second month with my 97SSEi now at 52,000 miles and the oil pressure guage is acting funny. It used to be that with each acceleration and deceleration the needle would smoothly go past the 40 psi mark when accelerating to highway speeds and then smoothly go back down below the 40 mark when slowing down. Now all the sudden the needle almost alway stays a needle-thickness below the 40 psi mark no matter how fast or slow. every now and then when at idle in traffic it'll move erratically past the middle again then suddenly settle to the normal under 40 spot. Come to think of it now that I write this, before the above problem was happening the guage would move well past the 40 psi mark at highway speeds near the 60 and the pressure would have a hard time coming back down when at a stand still though it did so very smoothly.

What could this be...a sending unit, oil pump or something else? If the oil pressure is actually much lower than previously, would I hear knocking/pinging or otherwise wear the engine down?

Thanks,
-Jason
jkust is offline   Reply With Quote
Old 08-22-2005, 09:39 PM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

You're in no danger whatsoever until you start falling below the 20 mark. Keep driving the car as the problem is diagnosed.

My first suggestion would be to put a mechanical gauge on the car, and compare readings. If it'* off significantly, replace the sending unit.
willwren is offline   Reply With Quote
Old 08-23-2005, 04:53 PM   #3
Senior Member
Posts like a Camaro

Join Date: Dec 2002
Location: Northeast MS
Posts: 1,079
Thanks: 0
Thanked 1 Time in 1 Post
94SSEgold is on a distinguished road
Default

ya, do what will said, we did that on the 94 and it sure enough was the sending unit, after that, it stays where it is supposed to, for the most part, it stays from 40 to 80 psi depending on engine temp and driving situation, on hightway it stays around 70 psi and in city it is at like 50 or so, but all is better since testing with mech. gauge and finding it was the sending unit
94SSEgold is offline   Reply With Quote
Old 08-23-2005, 07:27 PM   #4
Senior Member
True Car Nut

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

Im having a similer problem with mine except that mine every now and then it goes all the way to the end and starts to bounce there...i have a mecanical gauge in my piller pod and it reads that the oil pressure is fine, is it just the sending unit like willwren said or was that just the first place to look into with other thing that might also cause this problem??
Peterg22000 is offline   Reply With Quote
Old 08-25-2005, 03:11 PM   #5
Senior Member
Posts like a Camaro

Join Date: Apr 2005
Location: Grand Rapids,MI
Posts: 981
Thanks: 0
Thanked 0 Times in 0 Posts
Masterbm is on a distinguished road
Default

I am betting it is your sending unit
Masterbm is offline   Reply With Quote
Old 08-25-2005, 03:17 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

We've seen many members with crazy gauge problems on 92-95'* and typically it seems to be cluster related. On the 96+ if there is an odd reading the solution is typically the sending unit for that gauge.
BillBoost37 is offline   Reply With Quote
Old 08-26-2005, 02:04 AM   #7
Senior Member
Posts like a Turbo

Join Date: Apr 2005
Location: Fairmont, WV
Posts: 278
Thanks: 0
Thanked 0 Times in 0 Posts
griff1455 is on a distinguished road
Default

I had a similar problem with my 93. Turned out to be a broken wire leading to the sending unit. Would work, then not, then drove me nuts. When it didn;t, it pegged the gauge. It does sound like yours may be the sending unit. Take Bill'* advice and get that mechanical guage on it first to be safe.
griff1455 is offline   Reply With Quote
Old 09-06-2005, 03:19 PM   #8
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Jul 2005
Location: Maple Grove, Minnesota
Posts: 29
Thanks: 0
Thanked 0 Times in 0 Posts
jkust is on a distinguished road
Default Oil Sending Unit

Thanks for the feedback. Does anybody have a picture and description of where the sending unit is located. I was happy to find out it is only $30.00 for the part.

Thanks,
-Jason
jkust is offline   Reply With Quote
Old 09-06-2005, 06:46 PM   #9
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default Re: Oil Sending Unit

Quote:
Originally Posted by jkust
Thanks for the feedback. Does anybody have a picture and description of where the sending unit is located. I was happy to find out it is only $30.00 for the part.

Thanks,
-Jason

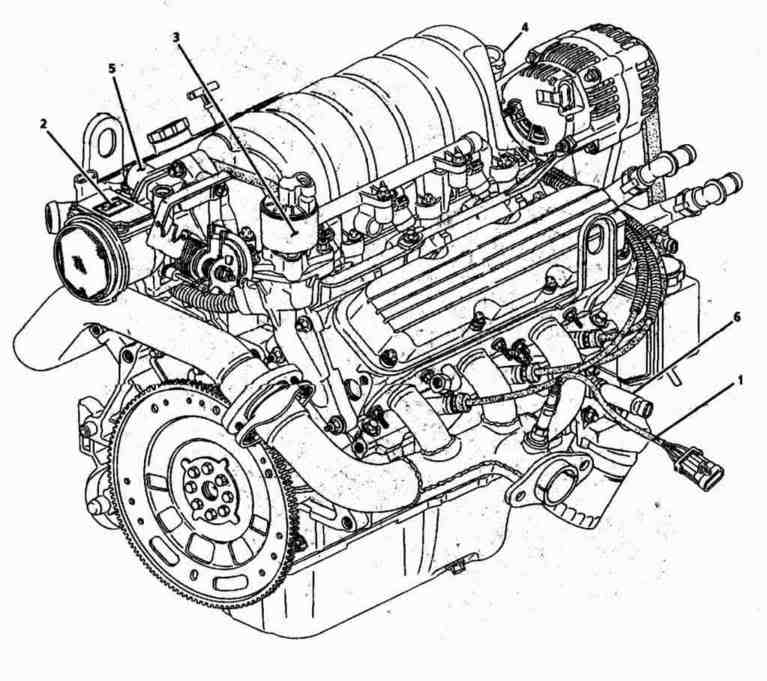

It is shown here as #6, down by the oil filter.

Name:  vinKrear.jpg
Views: 2
Size:  56.7 KB
bill buttermore is offline   Reply With Quote
Old 09-06-2005, 10:27 PM   #10
Senior Member
Posts like a Camaro

Join Date: Sep 2003
Location: Bad Axe,MI.
Posts: 1,025
Thanks: 0
Thanked 0 Times in 0 Posts
daman is on a distinguished road
Default

Could be the gauge cluster too, it'* a common problem on these cars.
