No Heat on 96 - Page 4 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 01-09-2009, 07:09 PM   #31
Junior Member
Posts like a Ricer Type-R

Join Date: Jan 2009
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
nlucas is on a distinguished road
Default

I just took out the glove box liner and i can't see that actuator rod.
nlucas is offline   Reply With Quote
Old 01-09-2009, 10:16 PM   #32
Junior Member

Toddster's Avatar

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 1 Time in 1 Post
Toddster is on a distinguished road
Default

ok here is a thread you want to view and remember.......

https://www.gmforum.com/t223560/
Toddster is offline   Reply With Quote
Old 01-09-2009, 10:21 PM   #33
Junior Member

Toddster's Avatar

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 1 Time in 1 Post
Toddster is on a distinguished road
Default

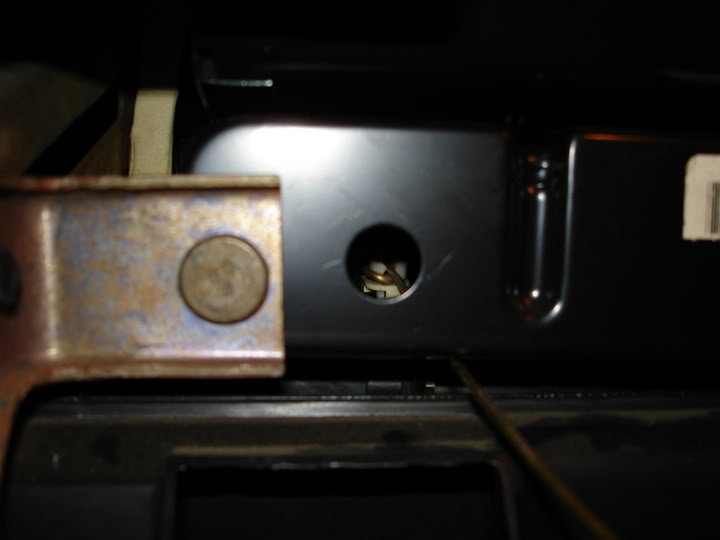

Name:  airmix1.jpg
Views: 6
Size:  25.6 KB

Last edited by Toddster; 01-09-2009 at 10:23 PM. Reason: wrong copy
Toddster is offline   Reply With Quote
Old 01-09-2009, 10:32 PM   #34
Junior Member
Posts like a Ricer Type-R

Join Date: Jan 2009
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
nlucas is on a distinguished road
Default

Thanks Todd. I was doing it outside in the dark with a flashlight. I'll do it tomorrow during the day. I also realise that my compressor and the cooling fans are not coming on. Do you think this is part of the problem also?
nlucas is offline   Reply With Quote
Old 01-09-2009, 10:35 PM   #35
Junior Member

Toddster's Avatar

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 1 Time in 1 Post
Toddster is on a distinguished road
Default

Quote:
Originally Posted by nlucas View Post
Thanks Todd. I was doing it outside in the dark with a flashlight. I'll do it tomorrow during the day. I also realise that my compressor and the cooling fans are not coming on. Do you think this is part of the problem also?
Your A/C compressor will not come on until around 54 degrees outside. And your fans are not going to come on until your engine temp reaches 234 degrees or so as well.

i know i'm off by a little on the numbers but close.
Toddster is offline   Reply With Quote
Old 01-09-2009, 10:38 PM   #36
Junior Member

Toddster's Avatar

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 1 Time in 1 Post
Toddster is on a distinguished road
Default

glove box liner:



liner taken out...look through the hole on the left:



photos borrowed from other member...
Toddster is offline   Reply With Quote
Old 01-09-2009, 11:14 PM   #37
Junior Member
Posts like a Ricer Type-R

Join Date: Jan 2009
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
nlucas is on a distinguished road
Default

Thanks for the info on the compressor and fans. So I am suppose to just push the the door to the right for full heat or disconnect the rod altogether? I am going to use a metal hanger.
nlucas is offline   Reply With Quote
Old 01-10-2009, 09:15 AM   #38
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Jun 2004
Location: Brick, NJ
Posts: 29
Thanks: 0
Thanked 0 Times in 0 Posts
STWater is on a distinguished road
Wink

How did you guys fix your nipples??? lol being serious here. When I pulled the vaccuum plug off I can see the the soft nipples are sucking closed. Is it ok If I just take off the very tip of the nipple off so that it doesnt suck closed so easily? How did you guys fix it? Thanks.
STWater is offline   Reply With Quote
Old 01-10-2009, 10:01 AM   #39
Junior Member
Posts like a Ricer Type-R

Join Date: Jan 2009
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
nlucas is on a distinguished road
Default

God morning Todd. Do i have to take the actuator rod off or can I just pull on it just to movr the door.
Thanks
nlucas is offline   Reply With Quote
Old 01-10-2009, 10:09 AM   #40
Junior Member

Toddster's Avatar

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 1 Time in 1 Post
Toddster is on a distinguished road
Default

Quote:
Originally Posted by nlucas View Post
Thanks for the info on the compressor and fans. So I am suppose to just push the the door to the right for full heat or disconnect the rod altogether? I am going to use a metal hanger.
The door has a spring on it so when the gear in the actuator breaks the door pulls itself shut to full heat. Gm'* little way of saying "we know this is going to break sometime so lets make it default to full heat so they have heat in the winter"
sometimes works sometimes not.

If I where you I would disconnect the rod from the actuator so you have heat.

But here is a little test to make for sure your actuator is broken. With the arm/rod still attached to the actuator, try moving the arm of the actuator right to left..with the rod still attached. If it moves freely than yes your air mix actuator has a broken gear and does need replacing.
If you cannot move the arm than something else failed.
Toddster is offline   Reply With Quote
