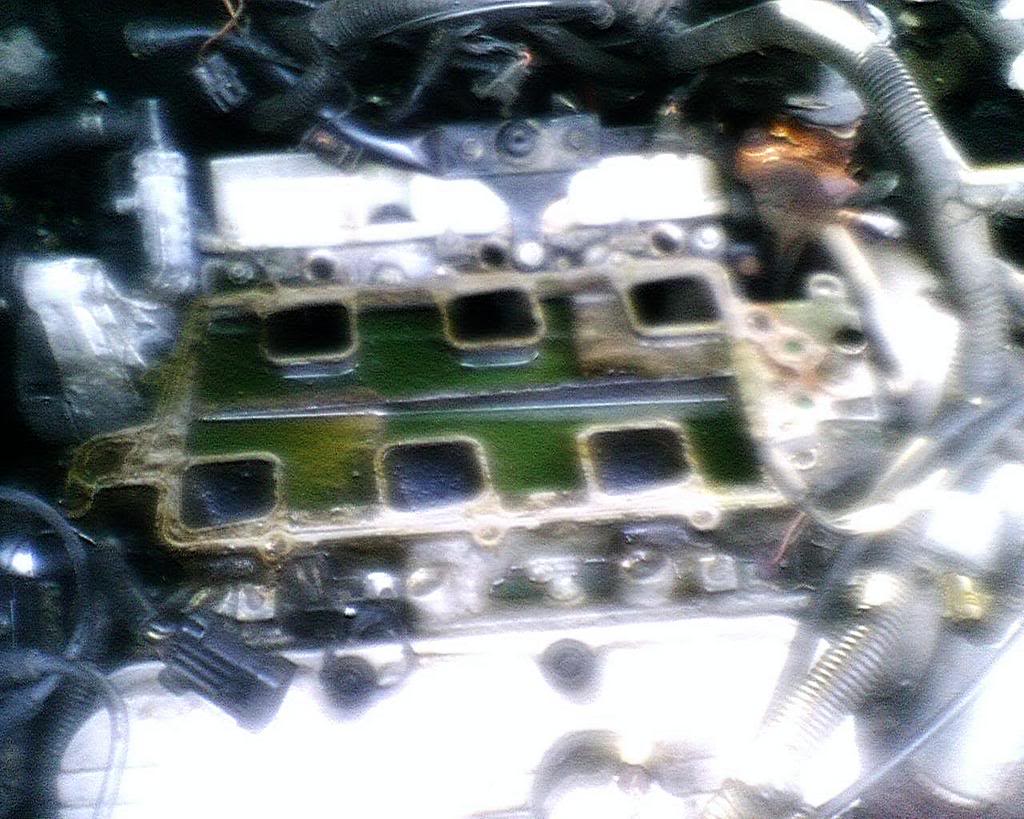

hey!! question....whats is suppose to be in this area where all of this antifreeze is in the picture, or is that regular. what is that long tube thats haniging down inside of my UIM....

Name:  lim.jpg
Views: 1
Size:  137.0 KB
showshocka2k is offline   Reply With Quote
Old 03-20-2007, 11:27 AM   #2
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

Definantely a UIM failure. There is supposed to be nothing there. The tube in the UIM is the PCV tube that carries over from where the PCV valve is located. You are doing your LIM gaskets, right? And I see someone already switched to green coolant.
Bonneville92V688 is offline   Reply With Quote
Old 03-20-2007, 12:12 PM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

On the money..

This is a an area of air. Nothing should be there, when you try and remove it.. remember the "secret" hidden bolts in the front driver side and rear passenger side of the manifold. Currently they are submerged.
BillBoost37 is offline   Reply With Quote
Old 03-20-2007, 01:27 PM   #4
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

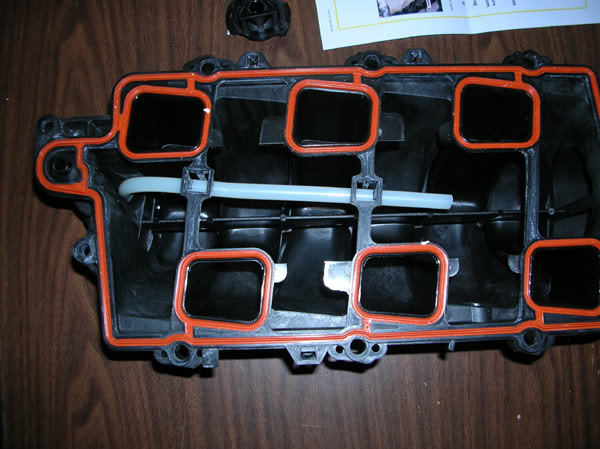

When you assemble the new UIM, make sure that pcv tube is installed like this one: (Thanks, Arbelac.)

Name:  apnupperfrombelow2.jpg
Views: 2
Size:  57.6 KB

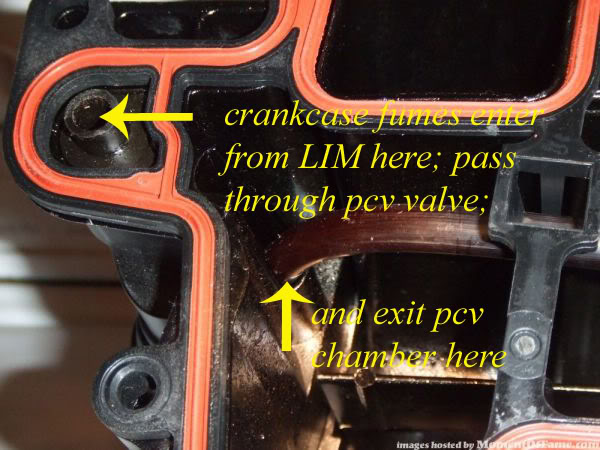

Here'* what it does: (Thanks, agrazela.)
Name:  UIM_004copy.jpg
Views: 2
Size:  65.6 KB

Finally, make sure there is one (not two) o-ring on the bottom of the pcv valve when you install it in the new UIM. A larger o-ring seals the pcv valve chamber.
bill buttermore is offline   Reply With Quote
Old 03-21-2007, 01:38 AM   #5
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Feb 2007
Location: Baltimore City, Maryland
Posts: 100
Thanks: 0
Thanked 0 Times in 0 Posts
showshocka2k is on a distinguished road
Default

Quote:
Originally Posted by bill buttermore
Finally, make sure there is one (not two) o-ring on the bottom of the pcv valve when you install it in the new UIM. A larger o-ring seals the pcv valve chamber.
work with me now you know im a newbie at this...what do you mean one not two o rings? why would i have two?
yeah of course i did my LIM'* too...my shipment of my UIM should be here on thursday so i can finish the whole job....drained my olil today.. yeah yeah i know i should have did it last week but the snow and sleet wouldnt let me...anyway i drained the oil and it was about a quart of antifreeze in it...i switched over to the green stuff because when the problem first started i found myself buying that dex stuff once a week a 15 bucks a pop..i'll have all the pics to post soon for others who want to do it themselves.
showshocka2k is offline   Reply With Quote
Old 03-21-2007, 04:15 AM   #6
Senior Member
Posts like a Camaro

Join Date: Dec 2005
Location: Clovis, CA
Posts: 851
Thanks: 0
Thanked 0 Times in 0 Posts
MACDRIVE is on a distinguished road
Default

Quote:
Originally Posted by showshocka2k
Quote:
Originally Posted by bill buttermore
Finally, make sure there is one (not two) o-ring on the bottom of the pcv valve when you install it in the new UIM. A larger o-ring seals the pcv valve chamber.
work with me now you know im a newbie at this...what do you mean one not two o rings? why would i have two?
He said make sure you DON'T have two. In other words: Make sure there'* only one on the PCV valve and not another one in the UIM. Some people have replaced their PCV valve and have installed the new O-ring on top of the existing O-ring still in the UIM. Kupeesh?

MACDRIVE is offline   Reply With Quote
Old 03-21-2007, 01:16 PM   #7
Senior Member
Posts like a Corvette

Join Date: Jan 2007
Location: San Diego, CA
Posts: 1,451
Thanks: 0
Thanked 0 Times in 0 Posts
agrazela is on a distinguished road
Default

Quote:
Originally Posted by MACDRIVE
P.*., in the image above, watch part #2 (the PCV "cap"), the little clips that hold the MAP sensor (part #1) like to break off.
agrazela is offline   Reply With Quote
Old 03-21-2007, 01:27 PM   #8
Member
Posts like a V-Tak

Join Date: Mar 2007
Posts: 48
Thanks: 0
Thanked 0 Times in 0 Posts
Luke is on a distinguished road
Default

Quote:
Fm MacDrive
He said make sure you DON'T have two. In other words: Make sure there'* only one on the PCV valve and not another one in the UIM. Some people have replaced their PCV valve and have installed the new O-ring on top of the existing O-ring still in the UIM
Very good alert, logical, but I also had the same question. I should have read it closer. Thank you.

Quote:
Finally, make sure there is one (not two) o-ring on the bottom of the pcv valve when you install it in the new UIM. A larger o-ring seals the pcv valve chamber.
By the way, Bill Buttermore, Thanks for your two photos and explanations {{ (Thanks, Arbelac.) }} Such additional submissions make a considerable difference in a full understanding.
