Default Need some help getting the rear strut rod nut loose

I'm doing replacement struts all the way around. I started on the rears last night. Everything is good except I can't get the nut off of the strut rod. The strut is completely off the car and the nut is recessed in the plate that goes against the strut well.

Since it is recessed I can't get a good grip on it. It is a 24mm size and my biggest wrench is 22mm so I tried to use an adjustable wrench and then a pair of vise grips. I am also soaking it in PB plaster to try and free up the rust.

I have the 50T torx to hold the rod steady, just can't get a good grip on the nut. I may have to get a boxed 24mm wrench today.

Any tips would be appreciated.

Thanks!
Grease is the Word is offline   Reply With Quote
Old 12-17-2004, 10:52 AM   #2
Senior Member
True Car Nut

Join Date: Nov 2002
Location: Texarkana, Texas
Posts: 6,041
Thanks: 0
Thanked 0 Times in 0 Posts
Damemorder is on a distinguished road
Default

Umm... there'* a setup to make this easy... I think it'* for w-bodies, And randman1 rings a bell as using it. He posted pictures somewhere. I'll search it up in a minute.
Damemorder is offline   Reply With Quote
Old 12-17-2004, 02:36 PM   #3
Senior Member
True Car Nut

GAMEOVER's Avatar

Join Date: Aug 2003
Location: Racine Wi
Posts: 5,146
Thanks: 0
Thanked 0 Times in 0 Posts
GAMEOVER is on a distinguished road
Default

do you have access to air tools?
GAMEOVER is offline   Reply With Quote
Old 12-17-2004, 03:12 PM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: Aug 2004
Posts: 55
Thanks: 0
Thanked 0 Times in 0 Posts
Grease is the Word is on a distinguished road
Default

I don't have easy access to air tools. I am going to try to get an offset box wrench in 24mm and see if that will get enough grip on the nut.
Grease is the Word is offline   Reply With Quote
Old 12-17-2004, 03:49 PM   #5
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Good memory, Dame.

Name:  DSC01081_edit.jpg
Views: 3
Size:  68.2 KB

Name:  DSC01079.jpg
Views: 6
Size:  53.4 KB

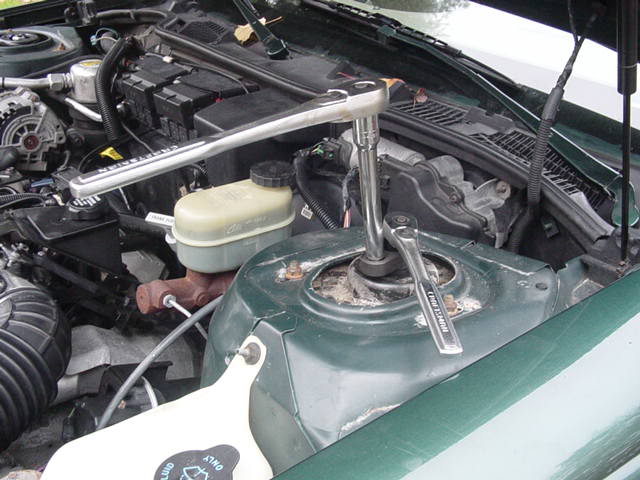

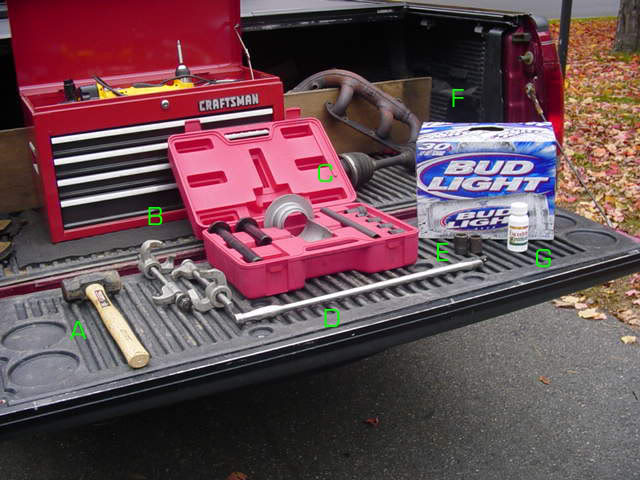

Thw W-body strut kit is from Autozone'* loaner tool program. You really can't do the job without it. The first pic is the entire kit (in the red box) and the second is the only tools you will need out of the kit. The 3/8" and 1/2" ratchets are not in the kit, you will have to provide them.
randman1 is offline   Reply With Quote
Old 12-17-2004, 04:09 PM   #6
Member
Posts like a V-Tak
Thread Starter

Join Date: Aug 2004
Posts: 55
Thanks: 0
Thanked 0 Times in 0 Posts
Grease is the Word is on a distinguished road
Default

Thanks!

I'll see if my AZ has the kit.
Grease is the Word is offline   Reply With Quote
Old 12-18-2004, 05:14 PM   #7
Member
Posts like a V-Tak
Thread Starter

Join Date: Aug 2004
Posts: 55
Thanks: 0
Thanked 0 Times in 0 Posts
Grease is the Word is on a distinguished road
Default

I got the W kit from AZ and it worked well. Just in case I bought a 24mm combination wrench and it would have worked also since I already had the T50 torx.

Ended up renting the spring compressor bars for the front also. It wasn't as bad of a job as I thought. Just need to get it aligned. All together it saved me about $500 DIY between the labor and the extra markup on the struts.

Just need to get it aligned.
Grease is the Word is offline   Reply With Quote
Old 12-18-2004, 05:40 PM   #8
Senior Member
True Car Nut

Join Date: Apr 2004
Location: Three Oaks, Michigan
Posts: 4,879
Thanks: 0
Thanked 0 Times in 0 Posts
opensourceguy is on a distinguished road
Default

First step before going anywhere. Get the car aligned. That is the most important step in doing any suspension work.


-justin
opensourceguy is offline   Reply With Quote
Old 12-18-2004, 06:01 PM   #9
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

I couldn't find a box-end wrench with enough offset to work. Can you give more detail on the brand or where you got it? I think I need to add it to my collection of tools
randman1 is offline   Reply With Quote
Old 12-18-2004, 08:37 PM   #10
Senior Member
True Car Nut

Join Date: Apr 2004
Location: Three Oaks, Michigan
Posts: 4,879
Thanks: 0
Thanked 0 Times in 0 Posts
opensourceguy is on a distinguished road
Default

JCW has 90* box heads. However.. I don't know how well they are made. You could take a torch and bend the wrench like they did on American Hot Rod [they even got it replaced under warruntee!]. If you were devious enough.. you could take out the one tool you need, and place in a block of metal, or just nothing. They never even checked the tools I borrowed.. but if you are an honest person, you could always just put down the deposit, and never bring it back [you lose the deposit, however]. There are always options for situations like these .


-justin
opensourceguy is offline   Reply With Quote
