Default Need info ASAP on heater blower control box



Hi! I have a guy at the local salvage yard that is going to sell me a blower control module, but I need to remove it, take it to him, and match it up with what he has (there are ten # possibilities) I have the kick panel on the pass side floor down, and I see a big black control box (size of two pacs of cigs or playing cards) and about 30-50 wires sticking out of it. That sure looks like the main computer for something... I didn't fool with it. There is also a relay type box attached to the underside of the fuse block, only six wires and has letters on it.

My question:which one, if either, is the blower motor control? I replaced the blower motor with a good one, and I still don't have a blower. I read in the tech forum that it is usually one or the other....
DGPMinistry is offline   Reply With Quote
Old 08-24-2004, 08:35 PM   #2
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

The blower control module is on the engine side of the firewall. Just to the left of the blower. That is, if yours is a 92-95. What year and model is yours?
J Wikoff is offline   Reply With Quote
Old 08-24-2004, 09:56 PM   #3
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

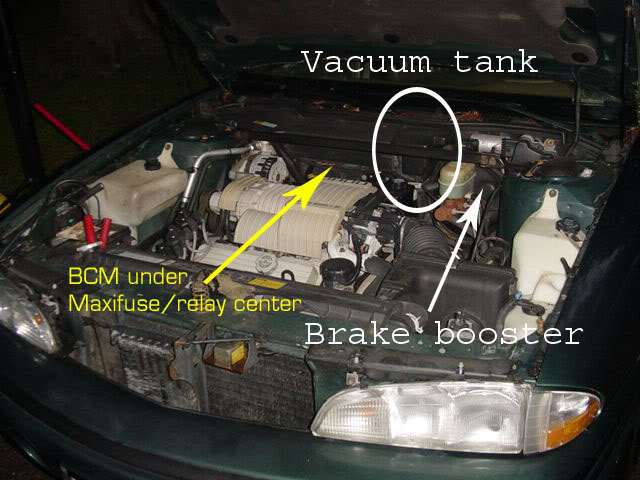

A pic to help. This was used for another topic so disregard items in white.

Name:  DSC00774_edit.jpg
Views: 5
Size:  62.9 KB
randman1 is offline   Reply With Quote
Old 08-24-2004, 11:36 PM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: Aug 2004
Location: Pulaski, VA
Posts: 63
Thanks: 0
Thanked 0 Times in 0 Posts
DGPMinistry is on a distinguished road
Default ????



All I see is some black plastic with no access... It'* not one of the relays that you mean... is it? My car is a 92 SSEi. Do you have to cut an access, or does that cover come off somehow?

Good pic by the way. Wish I could figure out how to include them in my messages.....
DGPMinistry is offline   Reply With Quote
Old 08-25-2004, 12:35 AM   #5
Senior Member
True Car Nut

Join Date: Nov 2002
Location: Texarkana, Texas
Posts: 6,041
Thanks: 0
Thanked 0 Times in 0 Posts
Damemorder is on a distinguished road
Default

You're looking at the cover. There'* two little clips to be undone along the front edge, a nut over by the passeger side, then it just needs fanagled out. You're looking for stuff under there.
Damemorder is offline   Reply With Quote
Old 08-26-2004, 08:21 PM   #6
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

I think it'* pretty much were the tip of the arrow is. Below the relays and fuses.
J Wikoff is offline   Reply With Quote
Old 09-09-2004, 11:02 PM   #7
Member
Posts like a V-Tak
Thread Starter

Join Date: Aug 2004
Location: Pulaski, VA
Posts: 63
Thanks: 0
Thanked 0 Times in 0 Posts
DGPMinistry is on a distinguished road
Default Incredible! Didn't need the module....



... all it was was the connector was screwed up. I took a voltmeter, found it was getting power and emitting power. The red lead plug connector wasn't making good contact. I found the box under the Maxifuse/Relay Center, unbolted it and moved it out of the way, took the module out and tested it. Packed the connector FULL of dielectric silicone grease. Works like a charm -- I have defrost and heat! Even auto climate works flawless.

Thanks for the help. I wouldn't have been able to locate that box without good instructions...
