Default need help with 4T60E heater element installation

Hi guys,

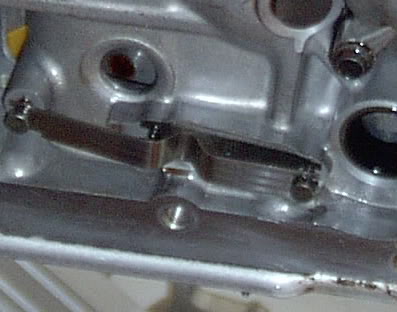

I got a "new" used trans for the '95 SLE and am in the midst of installing it. When I took the pan down and was wiping the gasket sealing surface, I bumped the heater element spring (?) and it fell off. It did not get bent, so I cleaned it up and re-installed it. I did not see how it was before I knocked it off. :( I think this is how it showed it in my FSM, but I am not sure. Is it supposed to be bowed this way?

Name:  4t60ehe.jpg
Views: 1
Size:  22.2 KB

If it ain't right, it will be a lot easier to change now, than after I get the 16 quarts of fluid in it!

Thanks,
bill buttermore is offline   Reply With Quote
Old 01-20-2005, 07:51 AM   #2
Senior Member
Posts like a Camaro

Join Date: Jan 2004
Posts: 1,166
Thanks: 0
Thanked 1 Time in 1 Post
mkaake is on a distinguished road
Default

do you have a pic with more detail? i'm having a hard time trying to get my bearings here
mkaake is offline   Reply With Quote
Old 01-20-2005, 07:57 AM   #3
Senior Member
Posts like a Camaro

Join Date: Jan 2004
Posts: 1,166
Thanks: 0
Thanked 1 Time in 1 Post
mkaake is on a distinguished road
Default

yes, it'* installed correctly.



<edit> wow, that was fast. usually they block image linking a lot slower...
http://kaake.20m.com/thermostatic%20element.gif
if you copy and paste that into your address bar, it should be okay, otherwise it'll give you the blank stare...
mkaake is offline   Reply With Quote
Old 01-20-2005, 08:31 AM   #4
Senior Member
True Car Nut
Thread Starter

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Thanks again mkaake, for the lightning response - that image eases my mind considerably. You should get a consulting fee on this job, (or a least a case of beer) if I ever get it running again.

[edit] Now I can go back to bed!
bill buttermore is offline   Reply With Quote
Old 01-20-2005, 09:09 AM   #5
Senior Member
Posts like a Camaro

Join Date: Jan 2004
Posts: 1,166
Thanks: 0
Thanked 1 Time in 1 Post
mkaake is on a distinguished road
Default

lol - no problem... it'* why i hang out here
