My gatorback supercharger belt is fraying!! Any ideas? - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 06-10-2007, 11:52 AM   #1
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2005
Location: Northwest Ohio
Posts: 95
Thanks: 0
Thanked 0 Times in 0 Posts
suctoes is on a distinguished road
Default My gatorback supercharger belt is fraying!! Any ideas?

Hi all, My gatorback supercharger belt is starting to fray is spots. Not all the way around but in 2" spots here and there. The belt only has about 9000 miles on it! Any idea what would cause this?
suctoes is offline   Reply With Quote
Old 06-10-2007, 11:55 AM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Remove the belt, and check all your other pulleys and idlers for sloppy wobble. Before you remove the belt, take a very close pic of the tensioner face just below the SC pulley so we can see the tension indicator and scale on it.
willwren is offline   Reply With Quote
Old 06-12-2007, 03:12 PM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2005
Location: Northwest Ohio
Posts: 95
Thanks: 0
Thanked 0 Times in 0 Posts
suctoes is on a distinguished road
Default

I think the pulley and tensioner are shot! But here are some pictures.

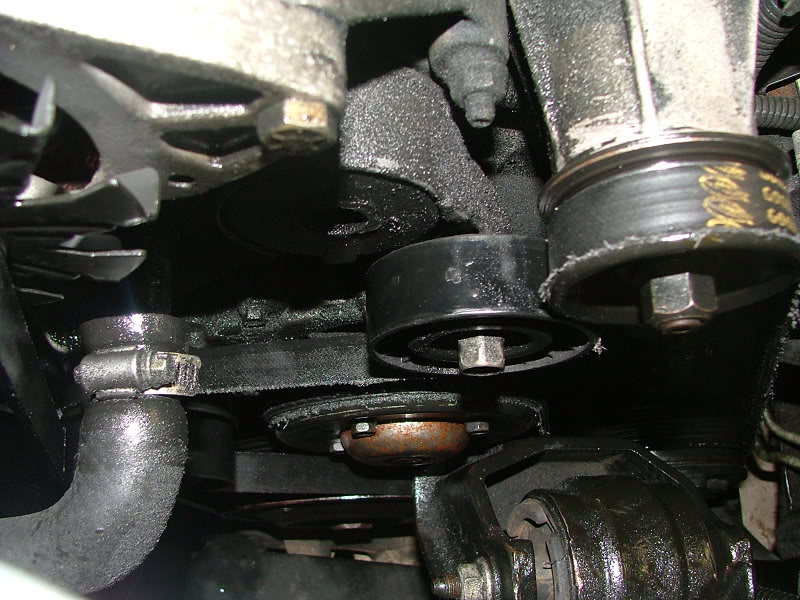

Name:  DSCF1015.jpg
Views: 18
Size:  98.5 KB[/img]

Now the belt is shot completely to.

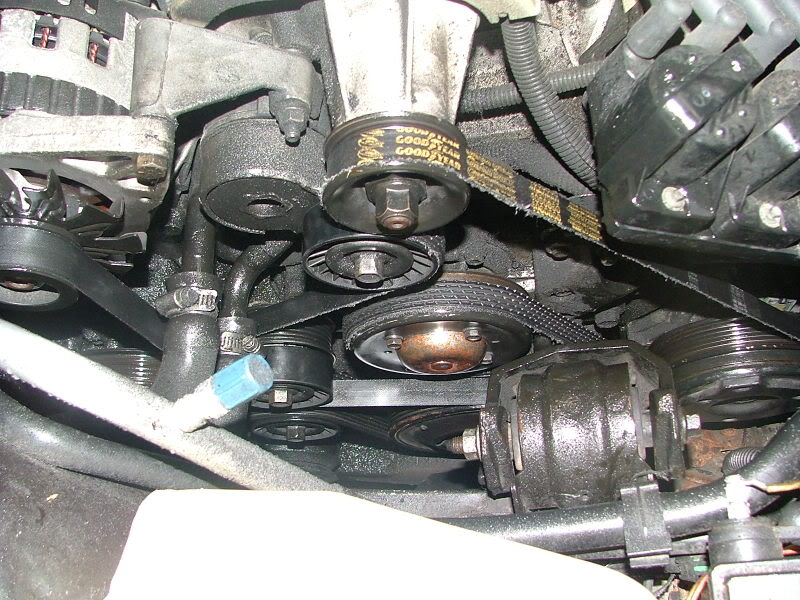

Name:  DSCF1019.jpg
Views: 16
Size:  123.4 KB

Last one. :(

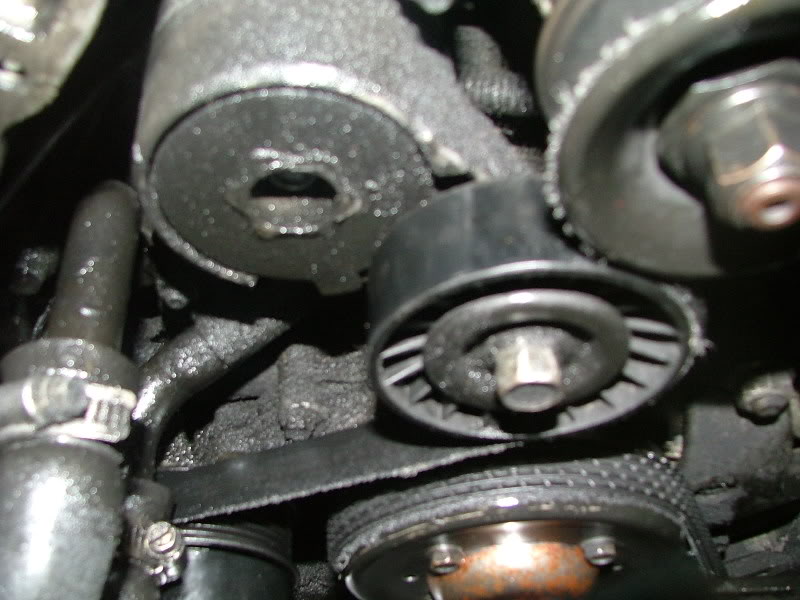

Name:  DSCF1017.jpg
Views: 19
Size:  69.9 KB
suctoes is offline   Reply With Quote
Old 06-12-2007, 03:14 PM   #4
Junior Member

Join Date: Mar 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
vital49 is on a distinguished road
Default

Which pulley?

You've got a serious leak coming from somewhere.
vital49 is offline   Reply With Quote
Old 06-12-2007, 03:22 PM   #5
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2005
Location: Northwest Ohio
Posts: 95
Thanks: 0
Thanked 0 Times in 0 Posts
suctoes is on a distinguished road
Default

The tensioner pulley and tensioner. The wet look is condensation from the A\C.
suctoes is offline   Reply With Quote
Old 06-12-2007, 03:28 PM   #6
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

That is NOT condensation. Not all of it. You have a serious problem going on there.

Please check the oil level in the SC ASAP, and track that leak down. Clean the engine first, and then after you do that, check the tension marks on the tensioner that are completely covered in grime.

If that were condensation from the AC, you'd still be able to see the tension marks. And all the aluminum parts. You have a leak. Probably more than one.
willwren is offline   Reply With Quote
Old 06-12-2007, 03:30 PM   #7
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

That'* what I was gonna say. It looks like SC oil, and if it is, the belt may be getting too hot from low oil, and is fraying it.
Bonneville92V688 is offline   Reply With Quote
Old 06-12-2007, 04:00 PM   #8
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2005
Location: Northwest Ohio
Posts: 95
Thanks: 0
Thanked 0 Times in 0 Posts
suctoes is on a distinguished road
Default

*/C oil Is full, BUT the power steering pump is leaking like crazy. I just got home from work not 10 min before I took those pictures. Anyway, how do you go about changing the P/* pump.
suctoes is offline   Reply With Quote
Old 06-12-2007, 04:07 PM   #9
Junior Member

Join Date: Mar 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
vital49 is on a distinguished road
Default

Start a new thread for the power steering pump change/fix.

Keep this thread on topic for addressing the pulley that'* causing your belt to shred.
vital49 is offline   Reply With Quote
Old 06-12-2007, 04:26 PM   #10
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2005
Location: Northwest Ohio
Posts: 95
Thanks: 0
Thanked 0 Times in 0 Posts
suctoes is on a distinguished road
Default

Ok I see the marks on the tensioner. What do they tell me?
suctoes is offline   Reply With Quote
